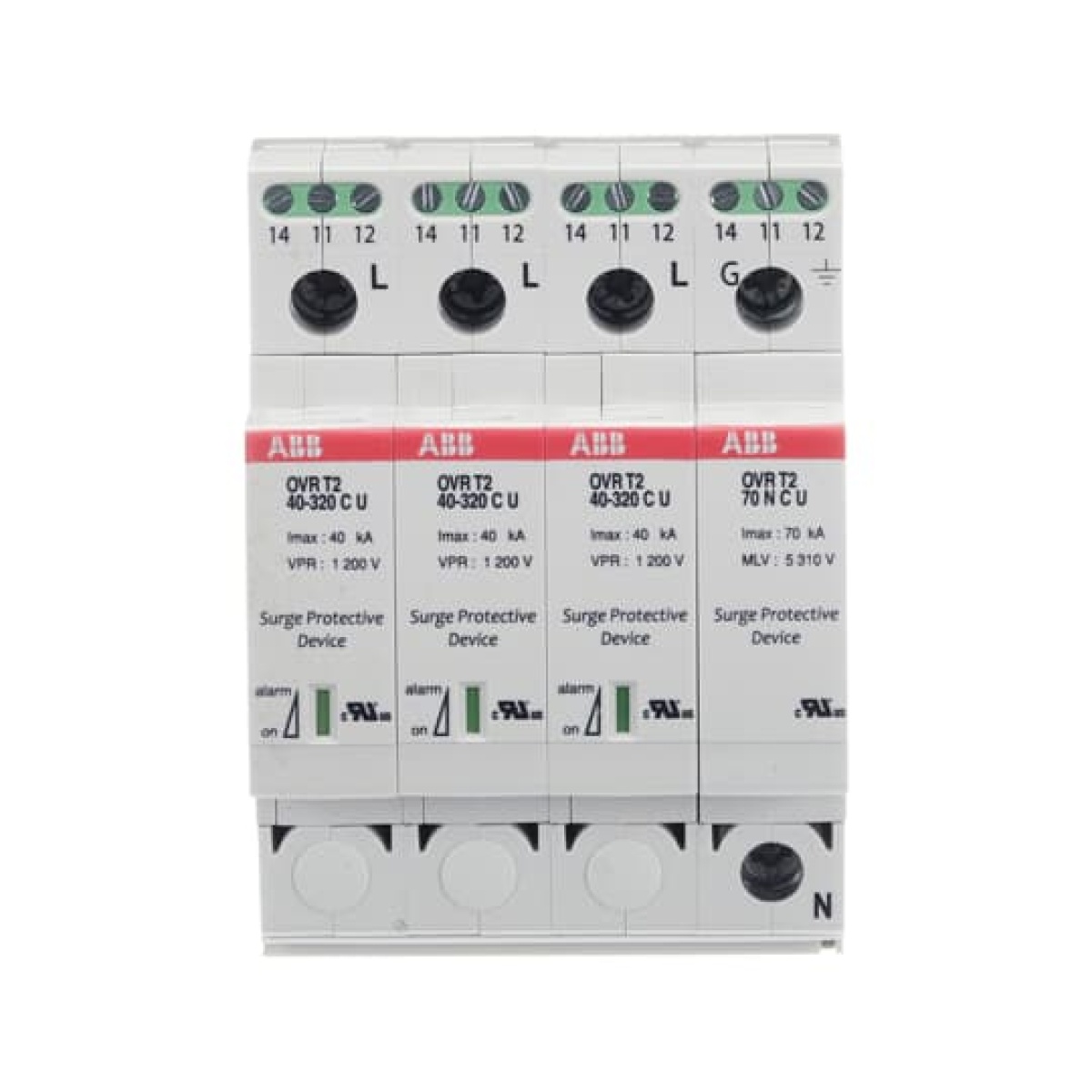

OVR T2 3N 40-320 P TS U Surge Protective Device
Surge Arresters
OVR T2 3N 40-320 P TS U Surge Protective Device
Nortécnica Ref:
EAN:
3660308518729
Description
Technical Information
Attributes
Mounting method
Other
With remote signalling contact
Yes
Número de condutores Sem aterramento
4
Construction size
4 modular spacing
Nível de proteção de tensão
-
Tensão máxima contínua AC
320
Corrente de descarga nominal 820
20
Tensão nominal CA
277
Tensão nominal DC
-
Category type 2
Yes
Nível de proteção L-N
-
Signalling at the device
Optical
Máxima tensão DC contínua
-
Degree of protection IP
IP20
Tensão fotovoltaica máx.
-
Nível de proteção de tensão N-PE
-
Integrated backup fuse
No
Secção do condutor rígido máx. monomulti filamento
25
Secção flexível do condutor máx. fio fino
16
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
Yes
System configuration TN-C-S
Yes
Corrente de choque de descarga máxima 820
20
Resistência a curto-circuito Isccr
100
Proteção de sobreintensidade máx. Ligação em paralelo fusível
-
Proteção de sobreintensidade máx. Ligação em série fusível
100
Integrated short-circuit protection
No
Proteção contra curto-circuitos seletiva integrada - por fusível gG
-
Leakage-current free
Yes
Brands
ABB
Descrição Longa
OVR T2 3N 40-320 P TS U Surge Protective Device
