Rated voltage: 230 Vac ± 10% Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz (Nominal power: 200 W/VA) Power (min./max load): - LEDi: 2 / 100 W/VA (max. 10 lamps) - Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps) - LV LEDi with transformer (only type L or LC): 4 / 100 W/VA (max. 10 lamps) - Incandescent lamps: 10 / 250 W/VA - Halogen lamps: 10 / 250 W/VA - LV halogen with transformer (only type L or LC): 10 / 250 W/VA (max. 10 lamps) 2 wire connection Optional: auxiliary on/off with 2-way switch 8102 Indicator LED lamp included Back-up fuse: Electronic Overload protection: Electronic Ambient temperature: 0°C to +35°C Without fixing claws Included: metallic rotatory knob Ring color: Black Glass
Miscellaneous

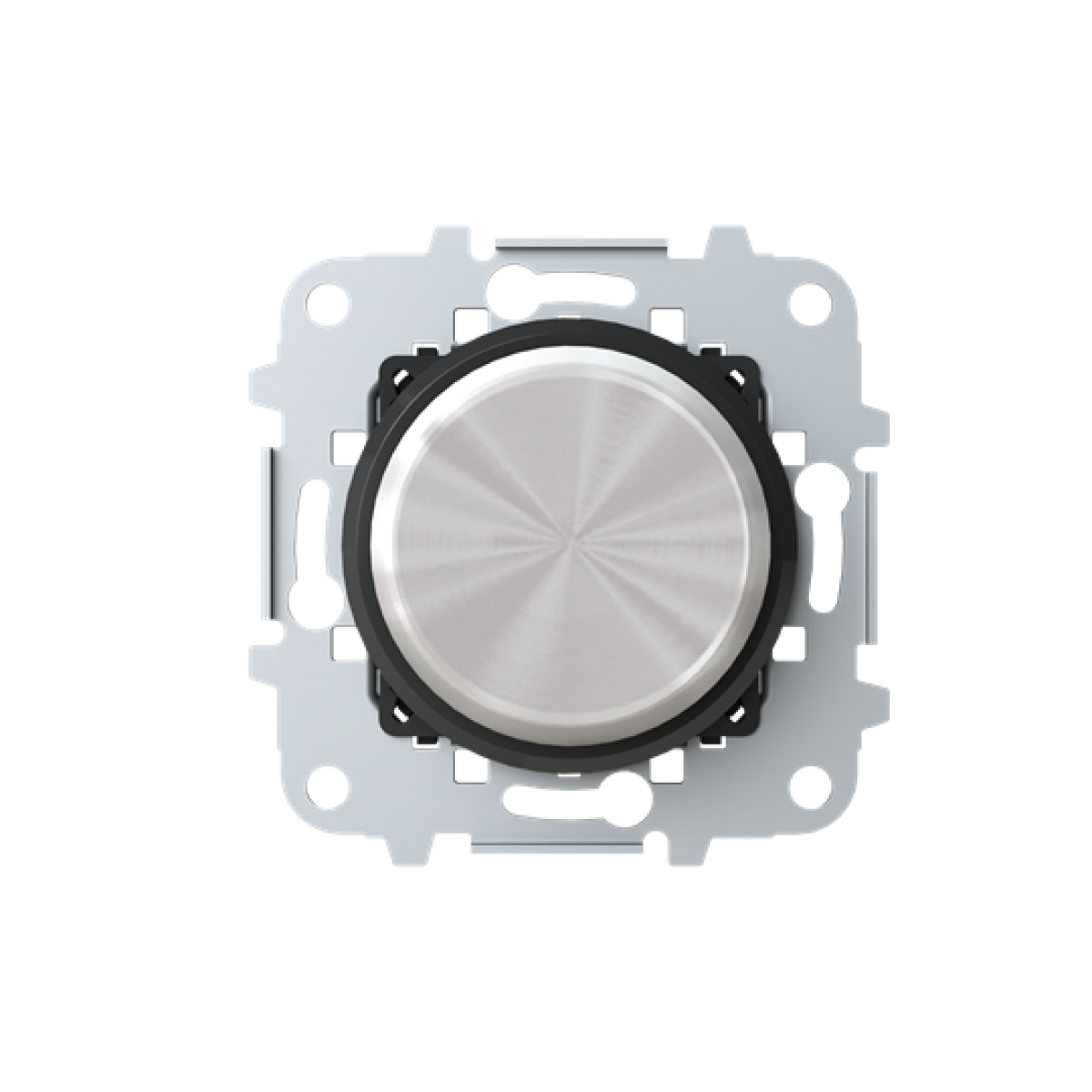

Cover plate Without imprint for Dimmer Turn button Black - Skymoon
Nortécnica Ref:
EAN:
8427238121956
Description
Technical Information
Attributes
Colour
Black
Width
75.000
Model
Turn button
Halogen free
Yes
Height
64.000
Depth
75.000
Utilization
Dimmer
Surface protection
Untreated
Material quality
Other
Material
Glass
Type of fastening
Clamp mounting
Imprintindication
None
Monitoring windowlight outlet
No
RAL-number similar
-
Impact strength
IK00
With label area
No
With exchangeable lenssymbol
No
Surface finishing
Glossy
Suitable for degree of protection IP
IP20
Suitable for touch sensor connector for bus system
No
Scannable symbolbarrier free
No
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
Rated voltage: 230 Vac ± 10%
Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz (Nominal power: 200 W/VA)
Power (min./max load):
- LEDi: 2 / 100 W/VA (max. 10 lamps)
- Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps)
- LV LEDi with transformer (only type L or LC): 4 / 100 W/VA (max. 10 lamps)
- Incandescent lamps: 10 / 250 W/VA
- Halogen lamps: 10 / 250 W/VA
- LV halogen with transformer (only type L or LC): 10 / 250 W/VA (max. 10 lamps)
2 wire connection
Optional: auxiliary on/off with 2-way switch 8102
Indicator LED lamp included
Back-up fuse: Electronic
Overload protection: Electronic
Ambient temperature: 0°C to +35°C
Without fixing claws
Included: metallic rotatory knob
Ring color: Black Glass
