RJ45 type connector Cat.6 UTP In compliance with ANSI/TIA/EIA 568B.2 , ISO/IEC11801 & EN50173 Universal TIA/EIA 568A and 568B labeling Housing: ABS UL-94-0 Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4) IDC: PC UL94V-0, Accept 22-26AWG solid wire Contact: RJ45 8P8C, 3～50 micro-inch gold plating over nickel plated on contact area Tool-less wiring Cover plate code: 8518.1, 8518.2, 8618.1, 8618.2, N2118.1, N2218.1, N2218.2, 8418.1, 8418.2, 8218.1, 8218.2, 5518.1 & 5518.2
Miscellaneous

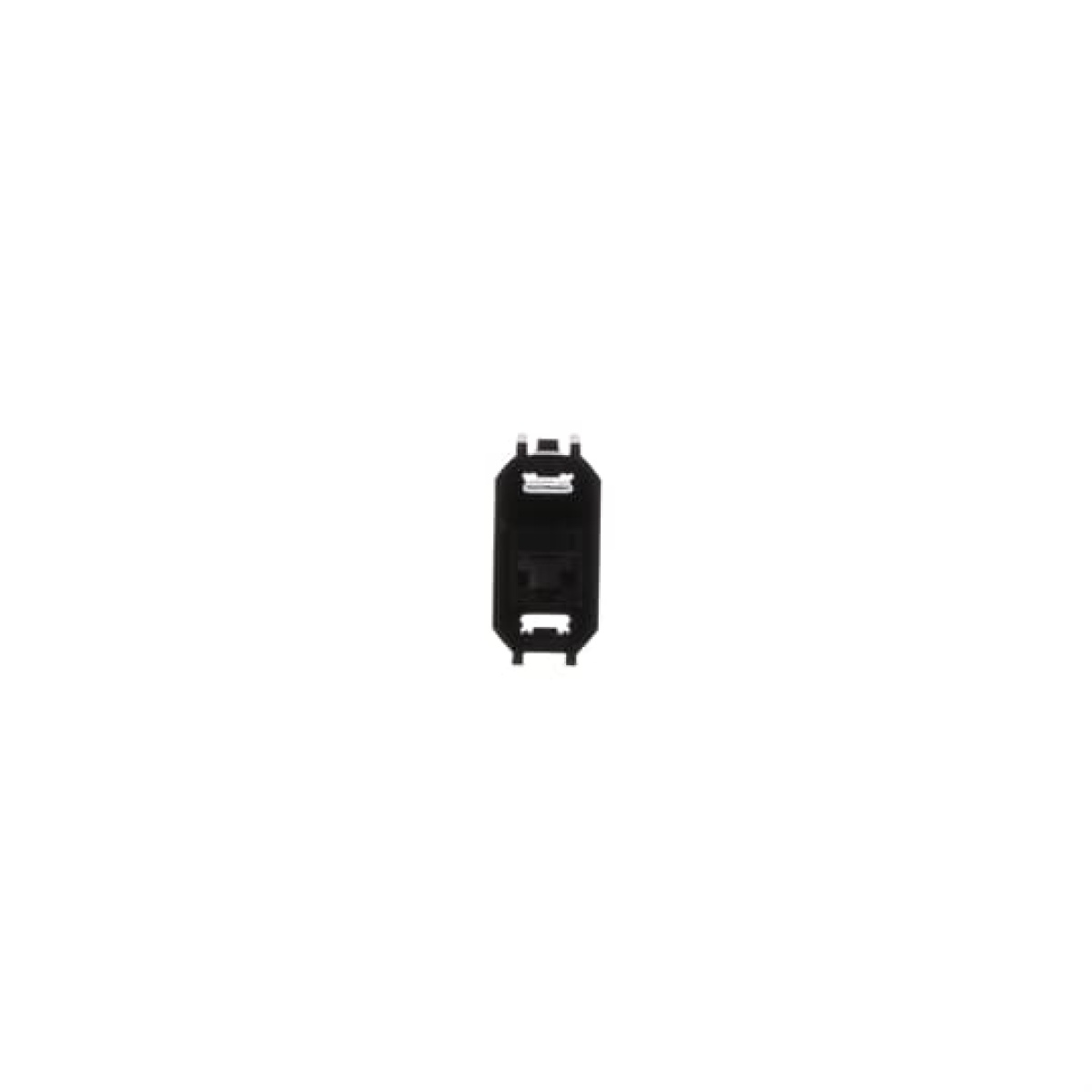

Insert Rj45 1 gang - Platform 8100
Nortécnica Ref:
272CLA201860A1001
EAN:
8427238058061
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Assembly arrangement
Basic element
Colour
-
Halogen free
Yes
With hinged lid
No
Utilization
Other
Surface protection
-
Outlet direction
Straight
With strain relief
No
Material quality
-
Imprintable label
Without indication field
Suitable for number of connectors
1
Contact type
-
Material
-
Type of fastening
Engage (snap)
Shielded buses
No
Shielded housing
No
With lighting
No
Luster terminal
No
RAL-number similar
-
With dust cover
No
With imprint
No
Impact strength
IK00
With busescouplings
No
Support ring
No
Transparent
No
Surface finishing
-
Suitable for degree of protection IP
IP20
Device width
22
Device height
44
Device depth
31
Number of modules module system
-
Min. depth of built-in installation box
-
Isolated connections
-
Anti-bacterial treatment
No
Brands
ABB
Long Description
RJ45 type connector
Cat.6 UTP
In compliance with ANSI/TIA/EIA 568B.2 , ISO/IEC11801 & EN50173
Universal TIA/EIA 568A and 568B labeling
Housing: ABS UL-94-0
Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4)
IDC: PC UL94V-0, Accept 22-26AWG solid wire
Contact: RJ45 8P8C, 3～50 micro-inch gold plating over nickel plated on contact area
Tool-less wiring
Cover plate code: 8518.1, 8518.2, 8618.1, 8618.2, N2118.1, N2218.1, N2218.2, 8418.1, 8418.2, 8218.1, 8218.2, 5518.1 & 5518.2
