Rated voltage: 230 Vac ± 15%; 50-60 Hz Max. consumption: 100 mA Stand-by consuption: 0,2W Amplifier power: 2+2 W; <1% distorsion (16 Ω) Speaker impedance: 16 Ω (2+2 W audio) FM radio digital tuner with RDS Alarm clock with buzzer, radio types and snooze function Optional: auxilary module 9368.3 for I/O (1 mini-jack stereo input & 1 mini-jack stereo output), USB connection and Bluetooth receiver functions Cover plate code: 8568, N2268, 8468, 8268 & 5568
Miscellaneous

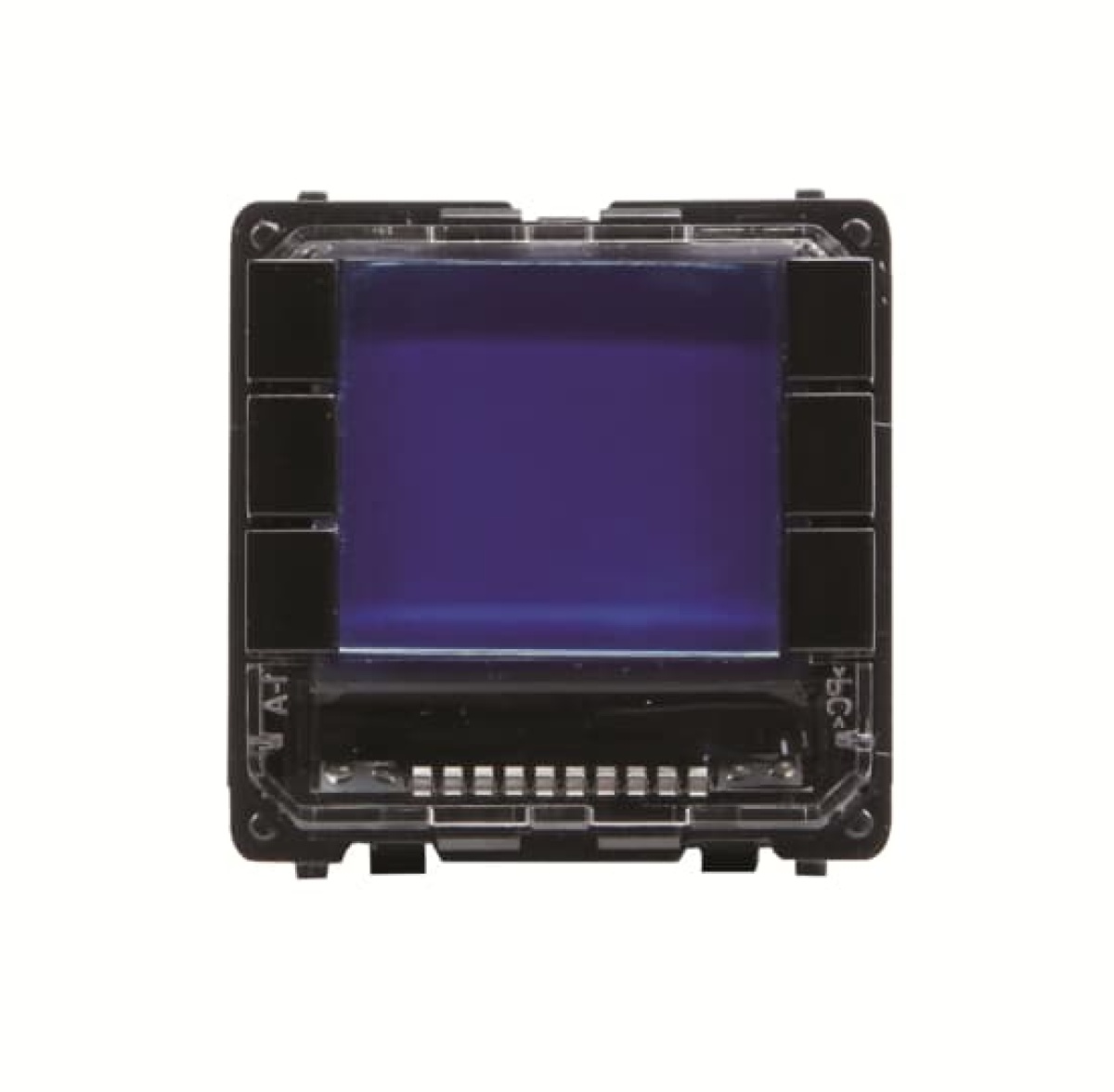

Sound device 230 V - Platform 8100
Nortécnica Ref:
EAN:
8427238104317
Description
Technical Information
Attributes
Nominal voltage
230
Mounting method
Flush-mounted
Assembly arrangement
Central component
Colour
-
Width
76.000
Height
64.000
Depth
76.000
Frequency
50
60
Number of program memory positions
36
RDS
Yes
Music capacity
4
Nominal capacity
23
Impedance
16
Number of analogue inputs
-
Number of analogue outputs
0
RAL-number similar
-
With voice announcement function
No
With tuner
Yes
With frequency indication
Yes
Suitable for degree of protection IP
IP20
IFTTT support available
No
Min. depth of built-in installation box
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Brands
ABB
Long Description
Rated voltage: 230 Vac ± 15%; 50-60 Hz
Max. consumption: 100 mA
Stand-by consuption: 0,2W
Amplifier power: 2+2 W; <1% distorsion (16 Ω)
Speaker impedance: 16 Ω (2+2 W audio)
FM radio digital tuner with RDS
Alarm clock with buzzer, radio types and snooze function
Optional: auxilary module 9368.3 for I/O (1 mini-jack stereo input & 1 mini-jack stereo output), USB connection and Bluetooth receiver functions
Cover plate code: 8568, N2268, 8468, 8268 & 5568
