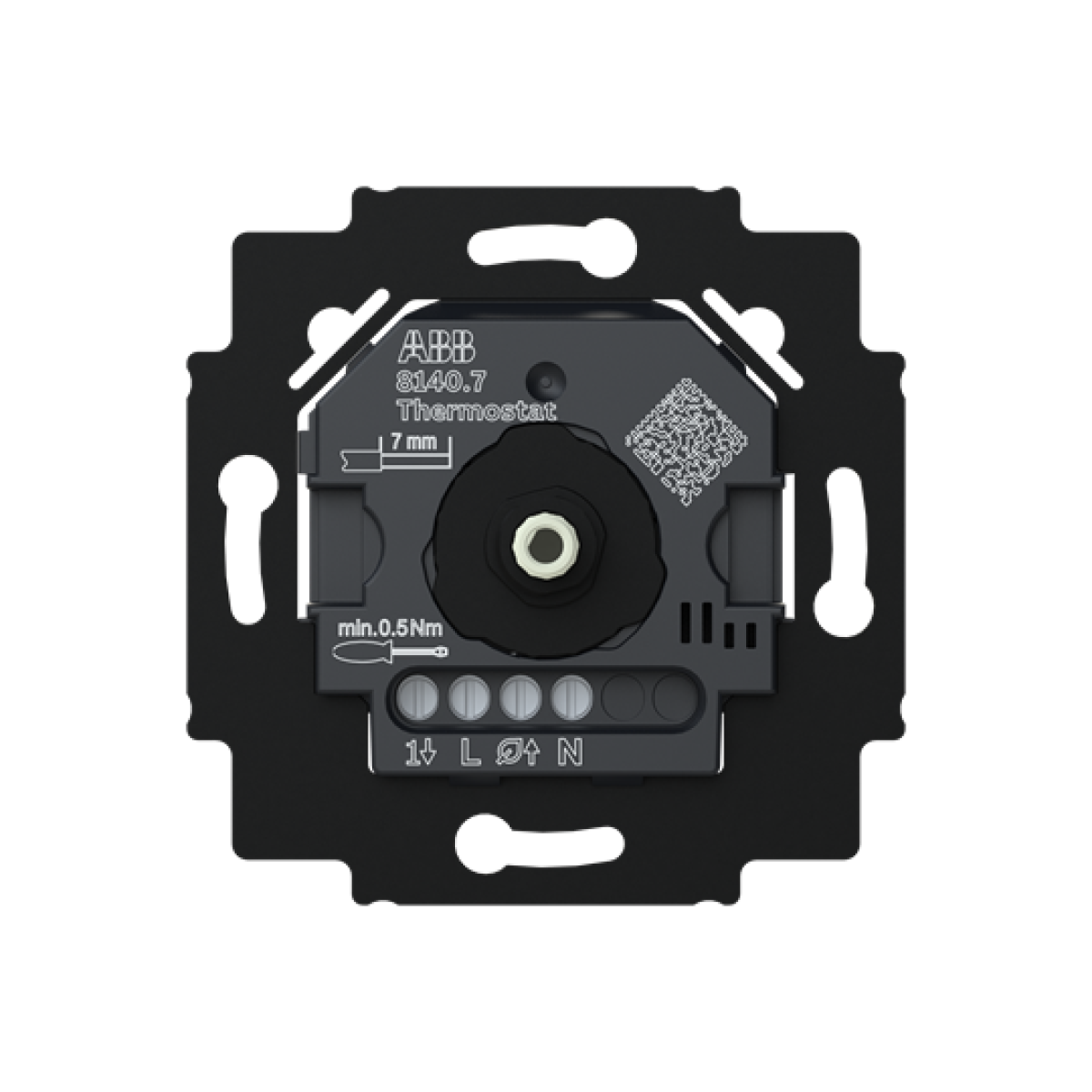

Electronic room thermostat;open contact;fm Normally open contact;non-isolated Switch contact opens when the set temperature is reached. Without fixing claws. Separate terminal to activate eco mode to reduce the room temperature by 3K See respective cover plates 8540.7 XX and 8940.7 XX. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. Rated voltage: 230 V~ Power dissipation: ≤ 0,15 W Rated current: 10 A Temperature range (device): 5 °C - 30 °C Dimensions: (L x W x D): 71 mm x 71 mm x 30 mm Mounting depth: 25 mm Protection class device: IP 20 Switching temperature difference: ± 0.5 K
Description
Technical Information
Attributes
Mounting method
-
Assembly arrangement
-
Colour
-
Model
-
Halogen free
No
Surface protection
-
Radio-controlled
-
Material quality
-
Material
-
Type of fastening
-
Número RAL semelhante
-
Transparent
-
Surface finishing
-
Número de módulos sistema de módulos
0
IFTTT support available
No
Min. profundidade da caixa de instalação embutida
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Brands
ABB
Descrição Longa
Electronic room thermostat;open contact;fm
Normally open contact;non-isolated
Switch contact opens when the set temperature is reached.
Without fixing claws.
Separate terminal to activate eco mode to reduce the room temperature by 3K
See respective cover plates 8540.7 XX and 8940.7 XX.
Class of temperature controller 1
Contribution to space heating energy efficiency 1,0%.
Rated voltage: 230 V~
Power dissipation: ≤ 0,15 W
Rated current: 10 A
Temperature range (device): 5 °C - 30 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 30 mm
Mounting depth: 25 mm
Protection class device: IP 20
Switching temperature difference: ± 0.5 K
