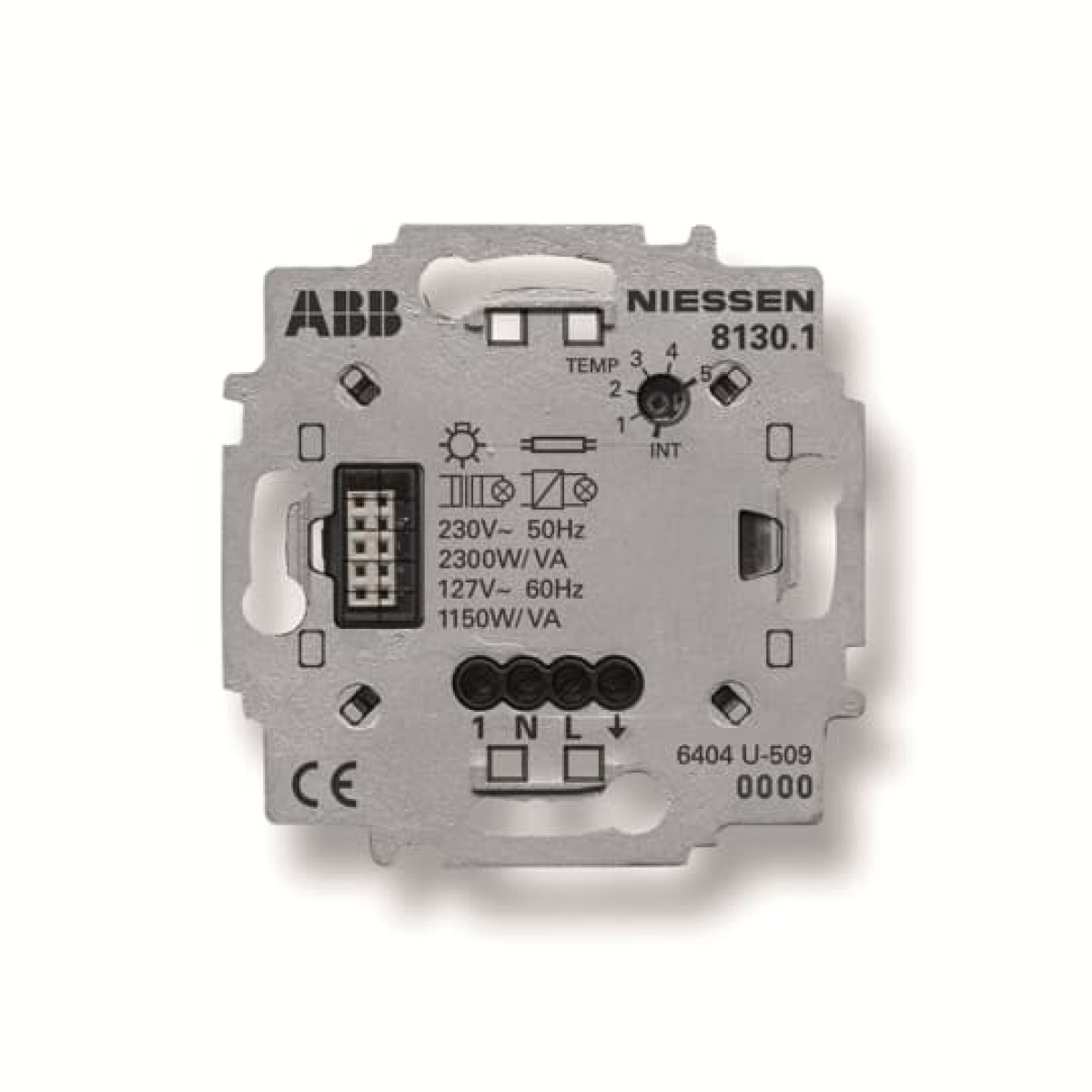

Rated voltage: 230 V~, +10 % / -10 % Rated frequency: 50 Hz For switching incandescent lamps, 230 V tungsten halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are actuated via transformers. 3 wire connection (neutral conductor required). With operating mode switch for operating mode: switch, time switch. Switch operating mode: press on the upper rocker switch half to switch the light on, press on the lower rocker switch half to switch the light off. Time switch operating mode: press on the upper rocker switch half to switch the light on, the light automatically switches off after a time delay. Manual switching off not possible. The delay can be set in 5 steps between 30 and 300 secs. Operation also possible via conventional push buttons 8104.X. Inputs: 1 Polling voltage: 230 V~, Sensing pulse, L-wire Outputs: 1 Normally open contact, potential-bound Suitable for: ohmic, capacitive and inductive loads Rated current: 10 AX Rated power: 2300 W/VA Included: attachable claws. Electronic cover plate code: 8530, 8430, 8230 & 5530
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
Other
Halogen free
No
Surface protection
-
Signal transmission
Radio frequency (RF)
Número de canais
4
Alcance
100
With remote control
No
Wall-mounted transmitter
Yes
Suitable for switch
Yes
Suitable for dimmer
Yes
Suitable for movement sensor
No
Material quality
-
Material
-
With manual transmitter
No
Suitable for venetian shutter switch
Yes
Número RAL semelhante
-
Transparent
No
Surface finishing
-
Window transmitter
No
Suitable for indication element
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Brands
ABB
Descrição Longa
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
For switching incandescent lamps, 230 V tungsten halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are actuated via transformers.
3 wire connection (neutral conductor required).
With operating mode switch for operating mode: switch, time switch.
Switch operating mode: press on the upper rocker switch half to switch the light on, press on the lower rocker switch half to switch the light off.
Time switch operating mode: press on the upper rocker switch half to switch the light on, the light automatically switches off after a time delay. Manual switching off not possible. The delay can be set in 5 steps between 30 and 300 secs.
Operation also possible via conventional push buttons 8104.X.
Inputs: 1
Polling voltage: 230 V~, Sensing pulse, L-wire
Outputs: 1 Normally open contact, potential-bound
Suitable for: ohmic, capacitive and inductive loads
Rated current: 10 AX
Rated power: 2300 W/VA
Included: attachable claws.
Electronic cover plate code: 8530, 8430, 8230 & 5530
