Color: White. Rated voltage: 230 Vac / 50 Hz Power: - Incandescent: 40 - 500 W - Halogen with transformer: 40 - 400 VA - Motors: 40 - 100 VA 2 wire connection Delay setup: 10 sec. to 10 min. Overcurrent protection: with fuse Indicator LED lamp included Operating temperature: 0 - 40ºC Size: 2 modules.
Miscellaneous

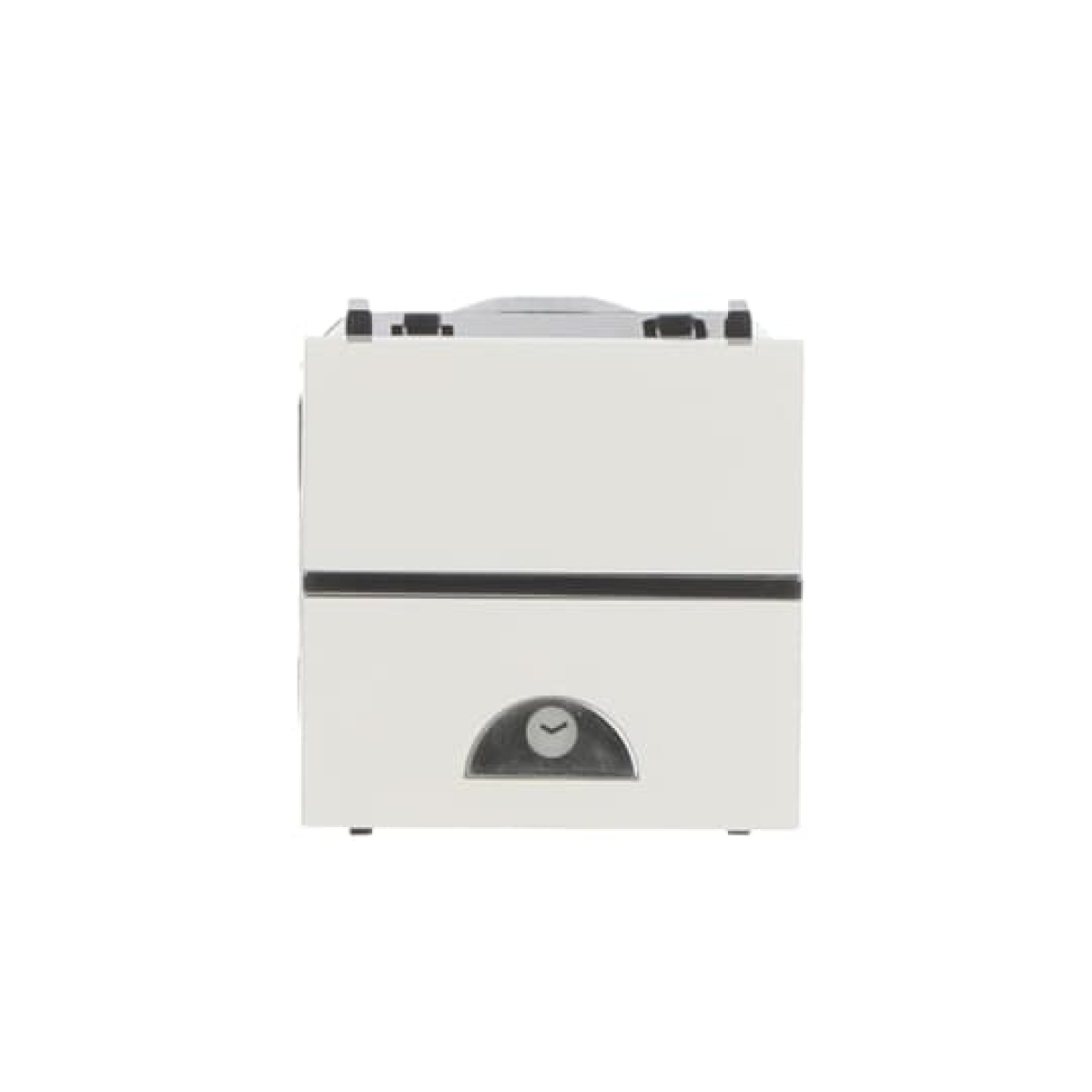

Time switch insertcover Electronic White - Zenit
Nortécnica Ref:
EAN:
8427238068756
Description
Technical Information
Attributes
Tensão nominal
230
Mounting method
Flush-mounted
Assembly arrangement
Modular device for domestic switching devices
Colour
White
Model
Electronic
Surface protection
Untreated
Autonomy
0
Profundidade incorporada
33.5
Shortest switching interval
0.17
Random generator
No
Astro program
No
Corrente nominal especificada
2.1
Frequency
-
-
Time setting
0.16
10
Material quality
Thermoplastic
Max. power
500
Material
Plastic
Type of fastening
Engage (snap)
Twilight value adjustable
-
-
With brightness sensor connection
No
Substation input
No
Número RAL semelhante
9010
Wi-Fi-compatible
-
Transparent
No
Surface finishing
-
Suitable for degree of protection IP
IP20
Timer function
-
Número de contatos como contato normalmente fechado
-
Número de contatos como contato normalmente aberto
1
Número de contatos como inversores
-
Largura do dispositivo
44
Altura do dispositivo
44
Profundidade do dispositivo
42
Número de módulos sistema de módulos
2
IFTTT support available
No
Min. profundidade da caixa de instalação embutida
33.5
Operation by Bluetooth
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Brands
ABB
Descrição Longa
Color: White.
Rated voltage: 230 Vac / 50 Hz
Power:
- Incandescent: 40 - 500 W
- Halogen with transformer: 40 - 400 VA
- Motors: 40 - 100 VA
2 wire connection
Delay setup: 10 sec. to 10 min.
Overcurrent protection: with fuse
Indicator LED lamp included
Operating temperature: 0 - 40ºC
Size: 2 modules.
