Frames for flush mounted installation. Watertight frame IP55. White colour. Mechanism N2288 BL included, 16 AX ; 250 V~ With lib that provides the direct operation of the mechanisms, with 120º opening angle. Mounting plate included.
Sockets

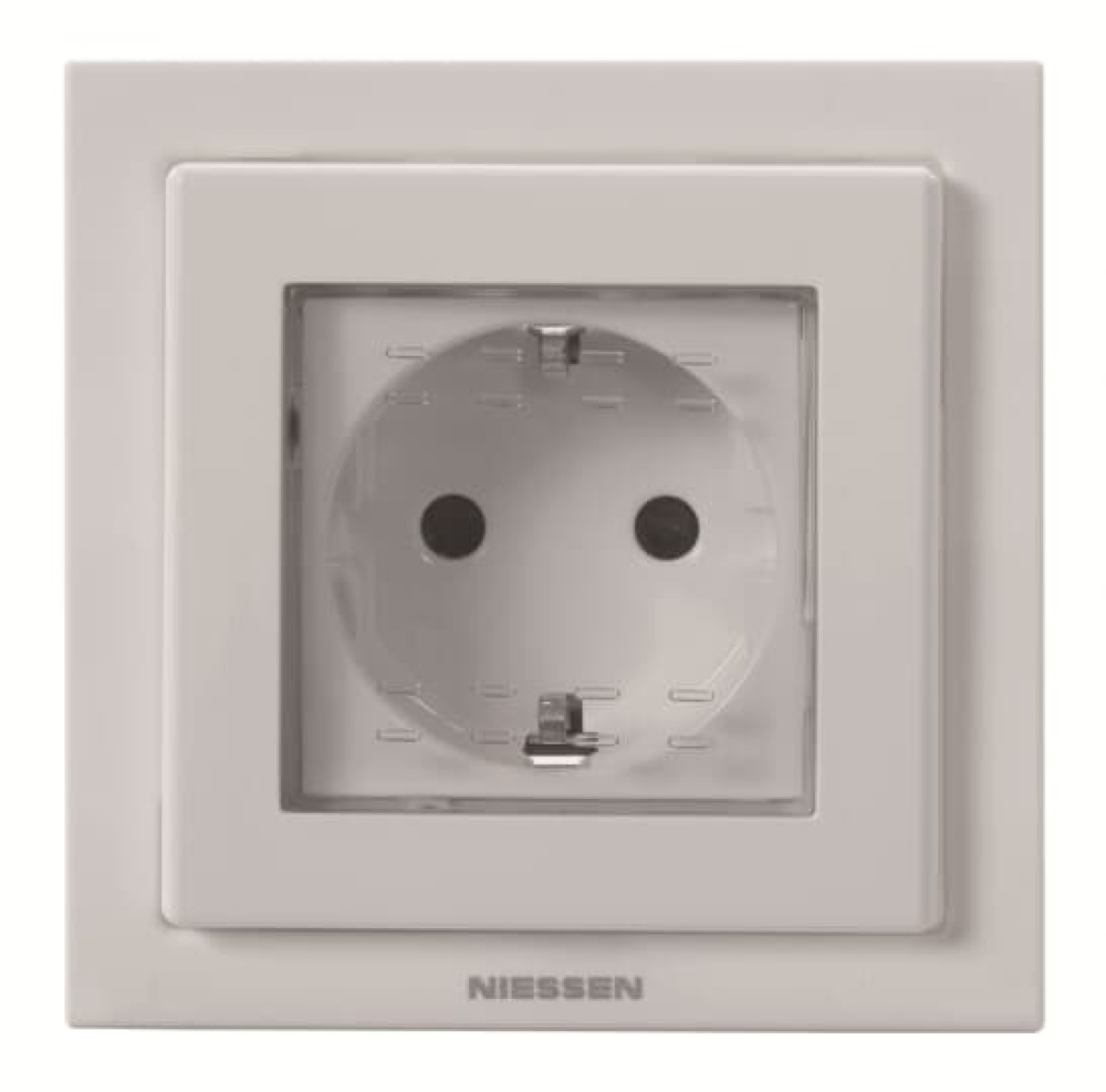

Socket outlet insertcover Protective contact SCHUKO Without imprint Hinged Lid White - Zenit
Nortécnica Ref:
EAN:
8427238106618
Description
Technical Information
Attributes
Nominal current
16
Nominal voltage
250
Mounting method
Flush-mounted
Colour
White
Model
Socket outlet with protective contact CEE 7/3 (type F)
Halogen free
Yes
Number of units
-
Lockable
No
With hinged lid
No
Connection type
Screwed terminal
Surface protection
Untreated
With signal lamp
No
Number of phases
2
With enhanced contact protection
Yes
Frequency
50
60
With onoff switch
No
Number of ports USB-A
0
Label spaceinformation surface
No
Eject-mechanism
No
Material quality
Thermoplastic
Rotated central insert
No
Overvoltage protection
No
Fault current protection
No
Special power supply
Other
Insulated mounting
-
Material
Plastic
Rated fault current
-
Type of fastening
Mounting with screw
Imprintindication
None
RAL-number similar
9010
Impact strength
IK04
Concurrently switching neutral conductor
-
Transparent
No
Surface finishing
Glossy
With miniature fuse
No
With loop through function
No
Suitable for degree of protection IP
IP55
Device width
90
Device height
90
Device depth
73
Number of socket outlets switchable
0
With function lighting
No
With orientation lighting
No
Number of modules module system
2
IFTTT support available
No
Number of active contacts round
2
Number of active contacts flat
0
Min. depth of built-in installation box
-
With Wi-Fi signal repeater
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Metallic colour
No
Colour of switch operator
-
Max. current rating of USB power supply
-
With built-in bluetooth speaker
No
Number of ports USB-C
0
Number of active contacts square
0
Protective contact
Earthing clips
Number of loop throughs
-
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
Frames for flush mounted installation.
Watertight frame IP55.
White colour.
Mechanism N2288 BL included,
16 AX ; 250 V~
With lib that provides the direct operation of the mechanisms, with 120º opening angle.
Mounting plate included.
