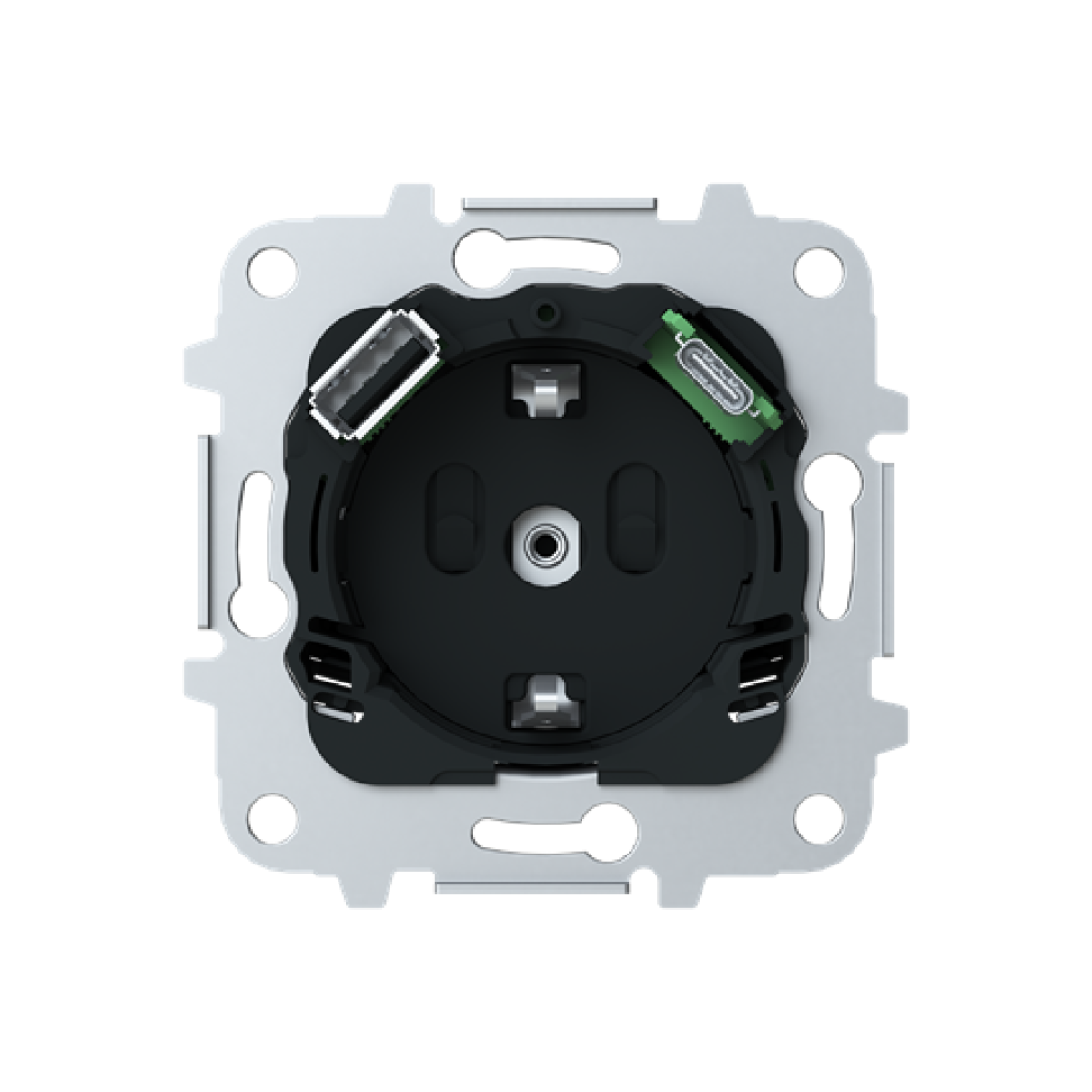

    Socket outlet with USB AC - Platform 8100
    ABB
    1

    Sockets

    Socket outlet with USB AC - Platform 8100

    Nortécnica Ref:
    EAN: 8427238272672
    Login to see prices and stocks

    Description

    Schuko® socket outlet: Rated voltage: 250 Vac. +/- 10%; 50/60 Hz. Rated current: 16A. Type F: 2P + E. With child safety shutter Operating temperature: -5º C ... 45 ºC USB charger: Input current: 0,20 A (with maximum load). Output voltage: 5 Vdc ±5%. Output current: 2.000 mA. USB-port Type: Power consuption in stand-by: <= 0,015W@230Vac. Energy efficiency: >= 79%. Screw terminals Max. torsion 0.8Nm according to ISO 60884-1 Without fixing claws Cover plate code: 8988.4, 8588.4.

    Technical Information

    Attributes
    Corrente nominal
    16
    Tensão nominal
    -
    Mounting method
    Flush-mounted
    Colour
    -
    Model
    Socket outlet with protective contact CEE 7/3 (type F)
    Halogen free
    No
    EF000074
    0
    Lockable
    No
    With hinged lid
    No
    Connection type
    Push-in clamp
    Surface protection
    -
    With signal lamp
    No
    Number of phases
    2
    With enhanced contact protection
    No
    Frequency
    -
    -
    With onoff switch
    No
    Number of ports USB-A
    1
    Label spaceinformation surface
    No
    Eject-mechanism
    No
    Material quality
    -
    Rotated central insert
    No
    Overvoltage protection
    No
    Fault current protection
    No
    Special power supply
    EV006426
    Insulated mounting
    -
    Material
    -
    Rated fault current
    -
    Type of fastening
    Snap mounting (engagement)
    Imprintindication
    None
    RAL-number similar
    -
    Impact strength
    IK04
    Concurrently switching neutral conductor
    -
    Transparent
    No
    Surface finishing
    -
    With miniature fuse
    No
    With loop through function
    No
    Suitable for degree of protection IP
    IP20
    Device width
    0.149
    Device height
    0.078
    Device depth
    0.225
    Number of socket outlets switchable
    0
    With function lighting
    No
    With orientation lighting
    No
    Number of modules module system
    0
    IFTTT support available
    No
    Number of active contacts round
    2
    Number of active contacts flat
    0
    Min. depth of built-in installation box
    -
    With Wi-Fi signal repeater
    No
    Compatible with Apple HomeKit
    No
    Compatible with Google Assistant
    No
    Compatible with Amazon Alexa
    No
    Metallic colour
    No
    Colour of switch operator
    -
    Max. current rating of USB power supply
    -
    With built-in bluetooth speaker
    No
    Number of ports USB-C
    1
    Number of active contacts square
    0
    Protective contact
    Earthing clips
    Number of loop throughs
    -
    Anti-bacterial treatment
    No
    Brands
    ABB

    Technical Sheet
