Rated voltage: 250 Vac Rated current: 16A Type F: 2P + E Shuttered for child safety Screwless terminals Without fixing claws Cover plate code: 8988, 8588, 8588.1, 8488, 8288, 8288.1
Sockets

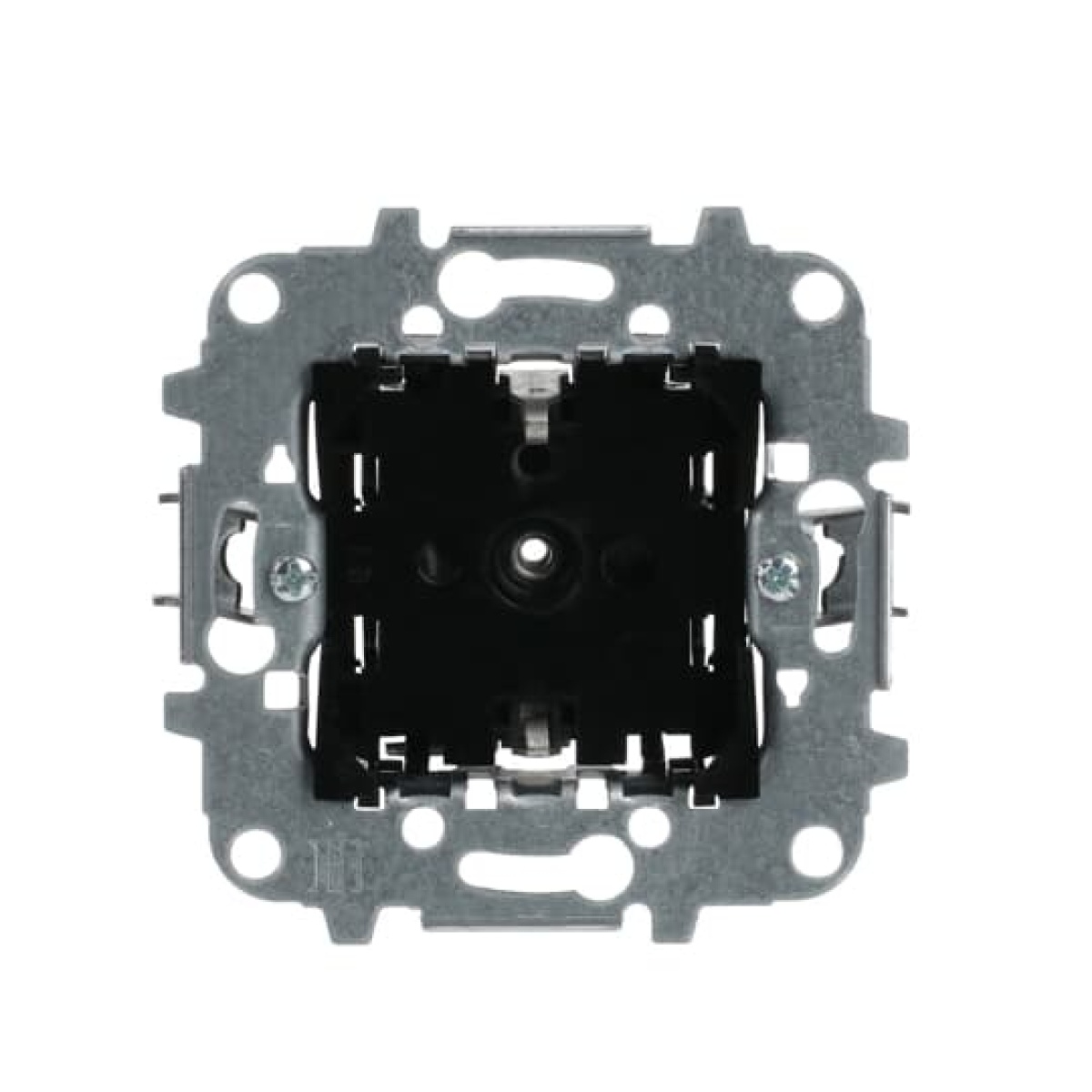

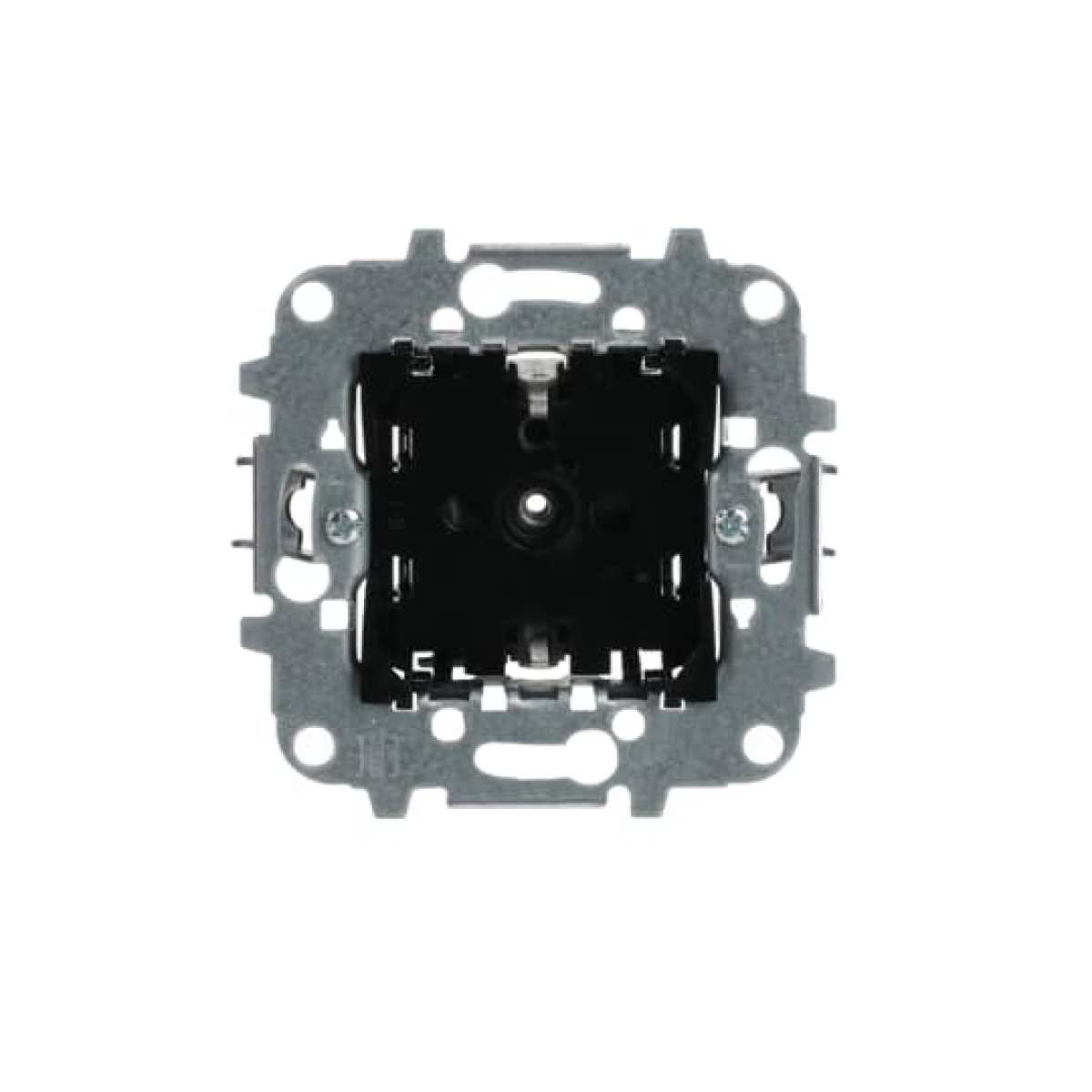

Socket outlet Without imprint - Platform 8100
Nortécnica Ref:
EAN:
8427238016924
Description
Technical Information
Attributes
Nominal current
16
Nominal voltage
250
Mounting method
Flush-mounted
Colour
-
Model
Socket outlet with protective contact CEE 7/3 (type F)
Halogen free
Yes
Number of units
0
Lockable
No
With hinged lid
No
Connection type
Push-in clamp
Surface protection
-
With signal lamp
No
Number of phases
2
With enhanced contact protection
Yes
Frequency
50
60
With onoff switch
No
Number of ports USB-A
0
Label spaceinformation surface
No
Eject-mechanism
No
Material quality
-
Rotated central insert
No
Overvoltage protection
No
Fault current protection
No
Special power supply
EV006426
Insulated mounting
-
Material
-
Rated fault current
-
Type of fastening
Mounting with screw
Imprintindication
None
RAL-number similar
-
Impact strength
IK04
Concurrently switching neutral conductor
-
Transparent
No
Surface finishing
-
With miniature fuse
No
With loop through function
No
Suitable for degree of protection IP
IP20
Device width
149.000
Device height
78.000
Device depth
225.000
Number of socket outlets switchable
0
With function lighting
No
With orientation lighting
No
Number of modules module system
0
IFTTT support available
No
Number of active contacts round
2
Number of active contacts flat
0
Min. depth of built-in installation box
-
With Wi-Fi signal repeater
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Metallic colour
-
Colour of switch operator
-
Max. current rating of USB power supply
-
With built-in bluetooth speaker
No
Number of ports USB-C
0
Number of active contacts square
0
Protective contact
Earthing clips
Number of loop throughs
-
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
Rated voltage: 250 Vac
Rated current: 16A
Type F: 2P + E
Shuttered for child safety
Screwless terminals
Without fixing claws
Cover plate code: 8988, 8588, 8588.1, 8488, 8288, 8288.1
