Rated voltage: 125 / 250 Vac. Rated current: 13 / 16 A. Multiple type: 2P + E. Shuttered for child safety. Screw terminals. Without fixing claws. Cover plates: - British type (Type G: 2P + E): 8537. - Euroamerican type (Type B+C: 2P + E / NEMA 5-15R): 8538. - Universal type (Multiple type: 2P + E): 8539.
Sockets

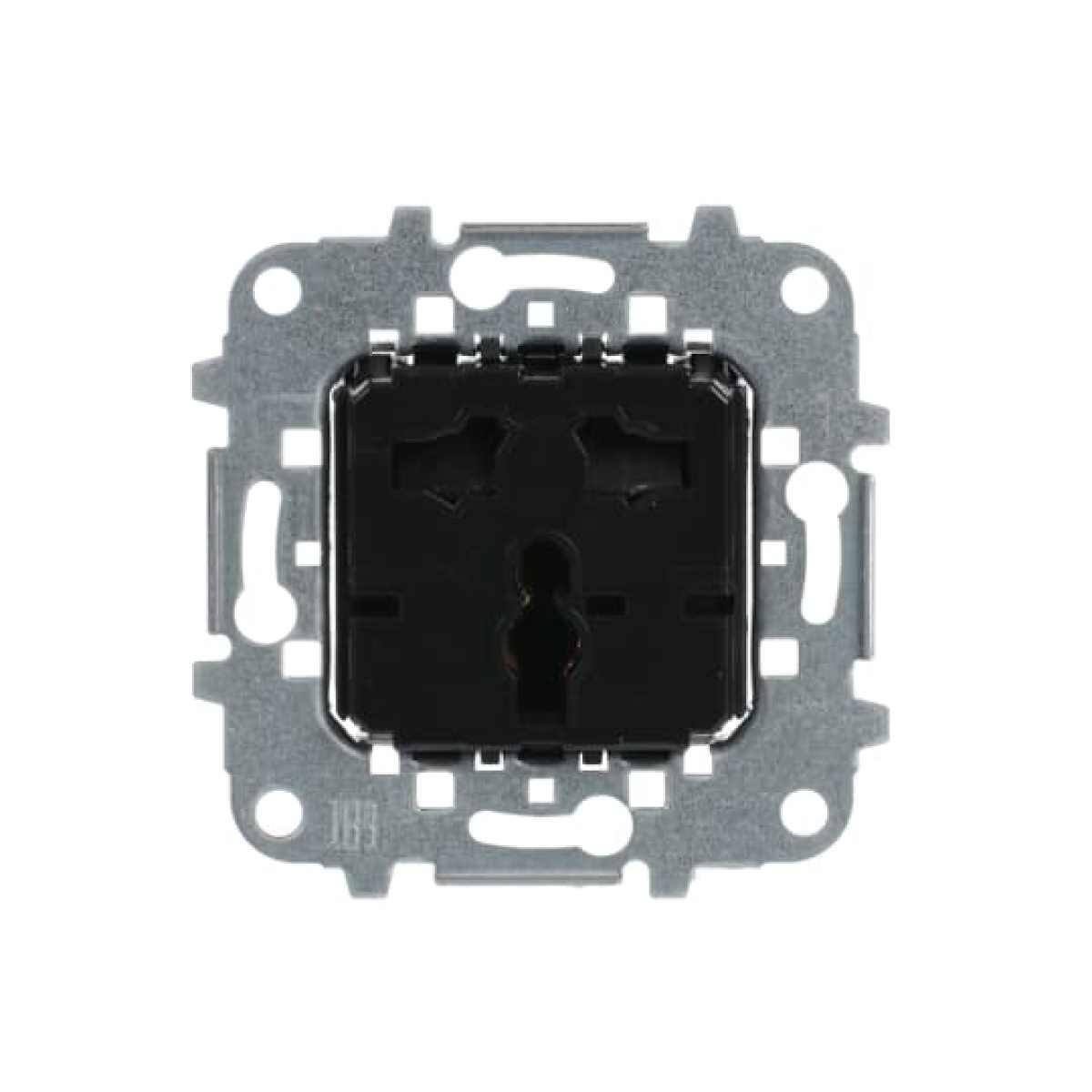

Socket outlet Without imprint - Platform 8100
Nortécnica Ref:
EAN:
8427238167466
Description
Technical Information
Attributes
Nominal current
15
Nominal voltage
220
Mounting method
Flush-mounted
Colour
-
Model
Multi-standard socket
Halogen free
Yes
Number of units
0
Lockable
No
With hinged lid
No
Connection type
Screwed terminal
Surface protection
-
With signal lamp
No
Number of phases
2
With enhanced contact protection
Yes
Frequency
50
60
With onoff switch
No
Number of ports USB-A
0
Label spaceinformation surface
No
Eject-mechanism
No
Material quality
-
Rotated central insert
No
Overvoltage protection
No
Fault current protection
No
Special power supply
EV006426
Insulated mounting
-
Material
-
Rated fault current
-
Type of fastening
Snap mounting (engagement)
Imprintindication
None
RAL-number similar
-
Impact strength
IK04
Concurrently switching neutral conductor
-
Transparent
No
Surface finishing
-
With miniature fuse
No
With loop through function
No
Suitable for degree of protection IP
IP20
Device width
70.000
Device height
71.000
Device depth
28.000
Number of socket outlets switchable
0
With function lighting
No
With orientation lighting
No
Number of modules module system
0
IFTTT support available
No
Number of active contacts round
4
Number of active contacts flat
3
Min. depth of built-in installation box
-
With Wi-Fi signal repeater
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Metallic colour
-
Colour of switch operator
-
Max. current rating of USB power supply
-
With built-in bluetooth speaker
No
Number of ports USB-C
0
Number of active contacts square
3
Protective contact
Other
Number of loop throughs
-
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
Rated voltage: 125 / 250 Vac.
Rated current: 13 / 16 A.
Multiple type: 2P + E.
Shuttered for child safety.
Screw terminals.
Without fixing claws.
Cover plates:
- British type (Type G: 2P + E): 8537.
- Euroamerican type (Type B+C: 2P + E / NEMA 5-15R): 8538.
- Universal type (Multiple type: 2P + E): 8539.
