Rated voltage: 230 V~, +10 % / -10 % Rated frequency: 50 Hz Suitable for blind, roller blind and awning drives with mechanical or electronic limit switch shut-off. With two 230 V multi-way input terminals (Up/Down) for group control. With operating mode switch for the following modes: normal, louvre, base station, position. Wind alarm, cleaning functions can be accommodated via extension input. For comfort timer control element 8565.31 or 8565.3 Remote control also available with blind switchs / push-buttons code 8144.X Running time: 3 min Outputs: 2 Normally open contact Rated current: 3 A, cos φ0.5 Rated power: 690 VA Control/Signal outputs: 2, Temperature range (Device): 0 °C to 35 °C Included: fixing claws
Switches, Dimmers, and Buttons

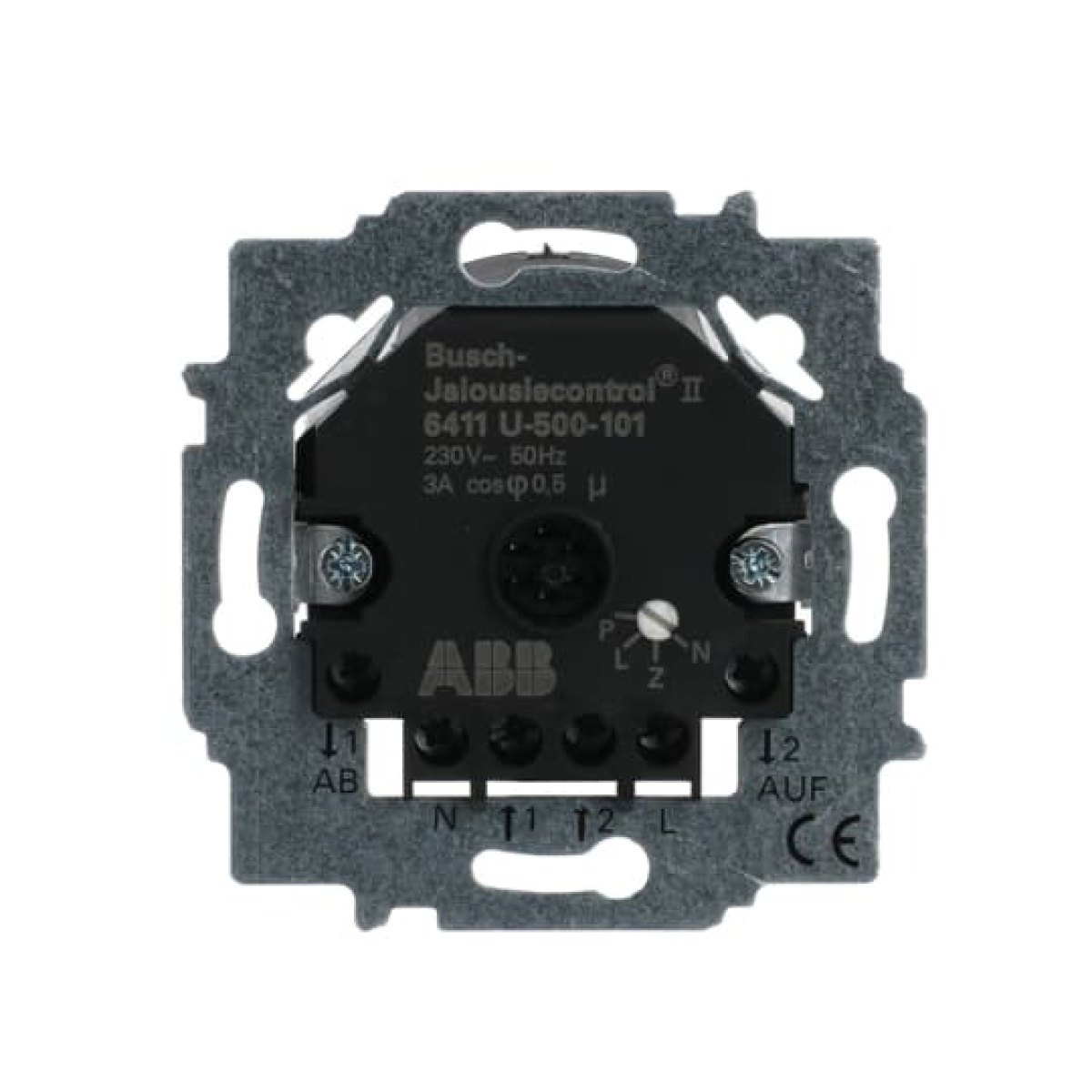

Blind switch 230 V
Nortécnica Ref:
EAN:
8427238016825
Description
Technical Information
Attributes
Tensão nominal
230
Mounting method
Flush-mounted
Assembly arrangement
Basic element
Colour
-
Halogen free
Yes
Surface protection
-
Autonomy
-
Random generator
-
With memory function
No
Frequency
50
50
Material quality
-
Potência de comutação máxima
690
With Astro program
No
Material
-
Type of fastening
Mounting with claw and screw
Integrated timer
-
Switch-off protection
Yes
Twilight value adjustable
-
-
With glass breaking detector connection
Yes
With brightness sensor connection
Yes
Substation input
Yes
Número RAL semelhante
-
Sun protection value adjustable
50000
50000
Suitable for rain sensor
No
Suitable for wind sensor
No
Transparent
-
Surface finishing
-
Suitable for degree of protection IP
IP20
IFTTT support available
No
Min. profundidade da caixa de instalação embutida
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Brands
ABB
Descrição Longa
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
Suitable for blind, roller blind and awning drives with mechanical or electronic limit switch shut-off.
With two 230 V multi-way input terminals (Up/Down) for group control.
With operating mode switch for the following modes: normal, louvre, base station, position.
Wind alarm, cleaning functions can be accommodated via extension input.
For comfort timer control element 8565.31 or 8565.3
Remote control also available with blind switchs / push-buttons code 8144.X
Running time: 3 min
Outputs: 2 Normally open contact
Rated current: 3 A, cos φ0.5
Rated power: 690 VA
Control/Signal outputs: 2,
Temperature range (Device): 0 °C to 35 °C
Included: fixing claws
