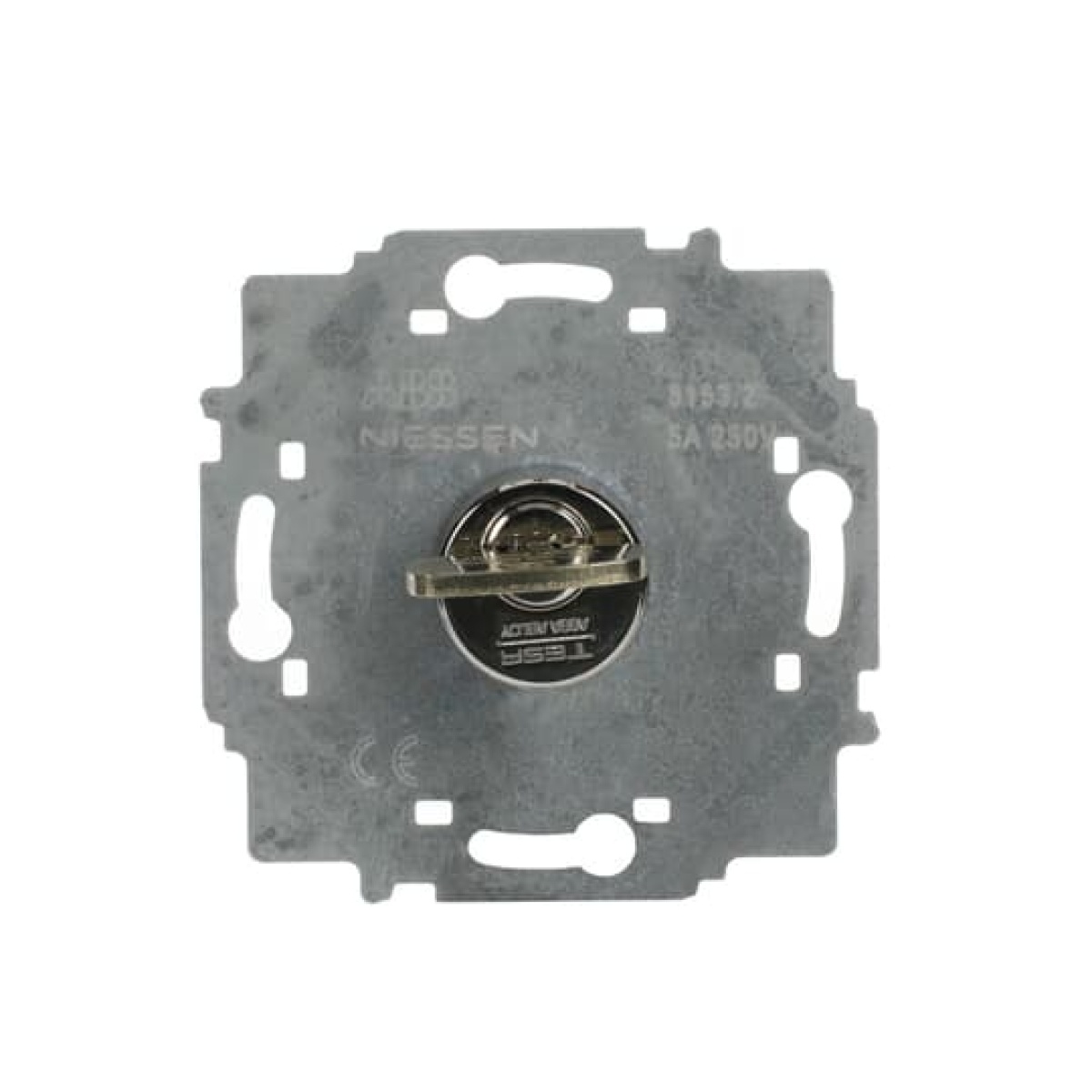

Rated voltage: 110 - 250 Vac Rated current: 5A Key removable in "OFF" position Unique key for each lock Suitable for alarms Cover plate code: 8553 & 8253
Switches, Dimmers, and Buttons
Push button insert Revolving contact 1 NO 0 NC 1 CO 5 A
Nortécnica Ref:
EAN:
8427238031682
Description
Technical Information
Attributes
Nominal voltage
250
Mounting method
Flush-mounted
Assembly arrangement
Basic element
Operating method
Key
Colour
-
Model
Reversing push button
Halogen free
No
Connection type
Screwed terminal
Imprint
-
Surface protection
Untreated
With signal lamp
No
Rated current
5
Label spaceinformation surface
No
Monitoring contact
No
Material quality
Thermoplastic
Number of poles
1
Material
Plastic
Type of fastening
Screw mounting
Number of rockers
-
With lighting
No
RAL-number similar
-
Operating principle
-
Impact strength
IK00
With light source
No
Transparent
No
Surface finishing
-
Suitable for degree of protection IP
IP20
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
1
Device width
76.000
Device height
64.000
Device depth
76.000
Number of modules module system
-
IFTTT support available
No
Min. depth of built-in installation box
29
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Number of revolving contacts
0
Contactless type
No
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
Rated voltage: 110 - 250 Vac
Rated current: 5A
Key removable in "OFF" position
Unique key for each lock
Suitable for alarms
Cover plate code: 8553 & 8253
