3 wire connection (neutral conductor required). For Busch-Watchdog 180 FP sensor for All Weather 44 6800-3x-102C. For comfort timer control element 6455-101-500. For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101. For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M. For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx. For Busch-Remote control IR control cover 6067-xxx-10x. For control cover with control lamp 6543-xxx-10x. Combinable with Busch-Watchdog extension insert 6805 U. Operation also possible via conventional push buttons (2020 US, 2021/6 UK).
Switches, Dimmers, and Buttons

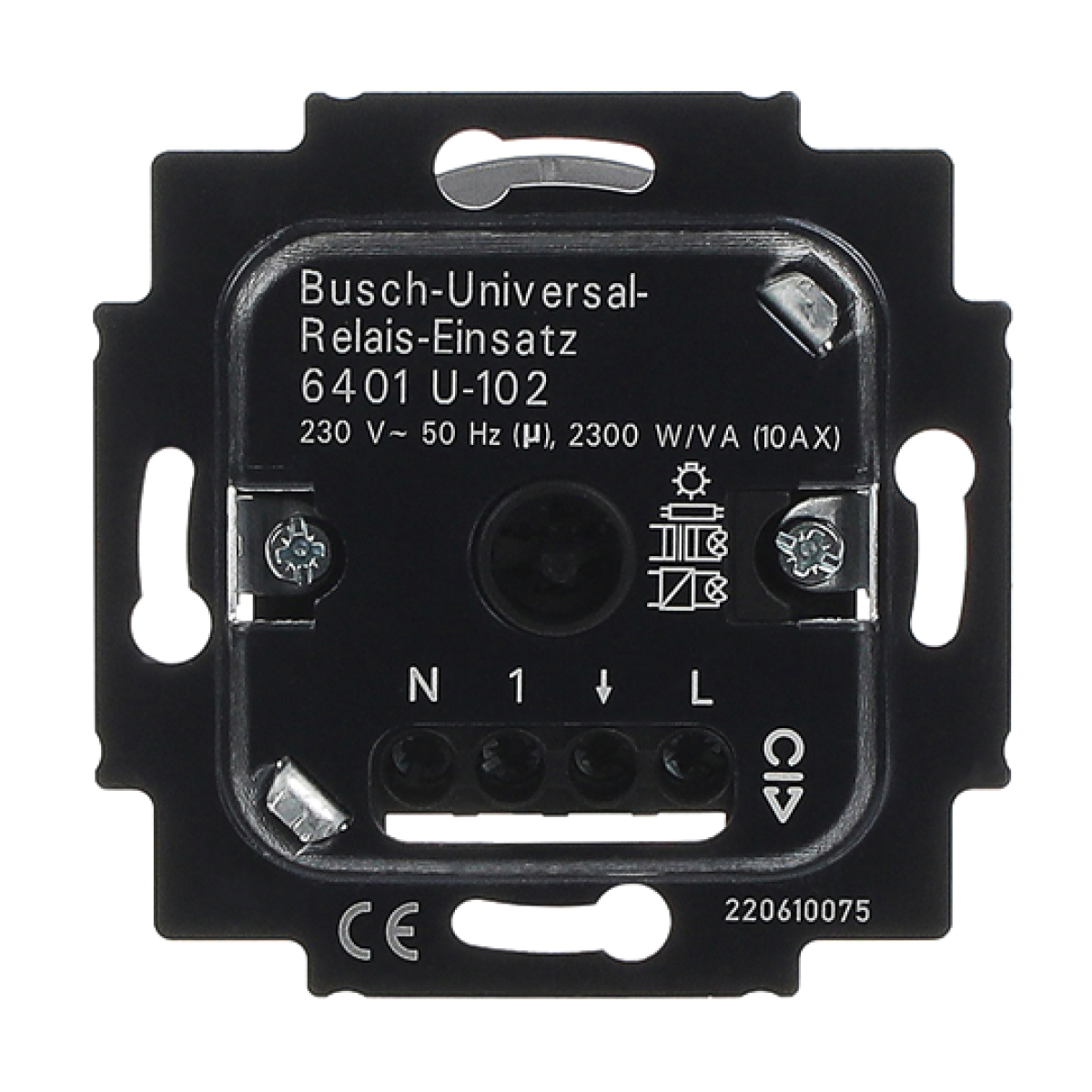

Relay insert 1-gang 230 V
Nortécnica Ref:
EAN:
4011395991299
Description
Technical Information
Attributes
Tensão nominal
230
Mounting method
Flush-mounted
Assembly arrangement
Control element
Colour
-
Model
-
Surface protection
Other
Corrente nominal especificada
10
Número de canais
-
Frequency
-
-
Material quality
Thermoplastic
Type of load
Universal and LED Retrofit
Material
Plastic
Type of fastening
-
Light value memory
No
Substation input
Yes
Número RAL semelhante
-
Switch capacity HVAC
-
-
Applicable with movement sensor
Yes
Applicable with transmission button
No
Applicable with infrared button
Yes
Applicable with presence indicator
Yes
Applicable with button
Yes
Applicable with time switchtimer
Yes
Switch capacity
-
-
Potência dissipada
-
Transparent
No
Surface finishing
Glossy
IFTTT support available
No
Min. profundidade da caixa de instalação embutida
32
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Brands
ABB
Descrição Longa
3 wire connection (neutral conductor required). For Busch-Watchdog 180 FP sensor for All Weather 44 6800-3x-102C. For comfort timer control element 6455-101-500. For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101. For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M. For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx. For Busch-Remote control IR control cover 6067-xxx-10x. For control cover with control lamp 6543-xxx-10x. Combinable with Busch-Watchdog extension insert 6805 U. Operation also possible via conventional push buttons (2020 US, 2021/6 UK).
