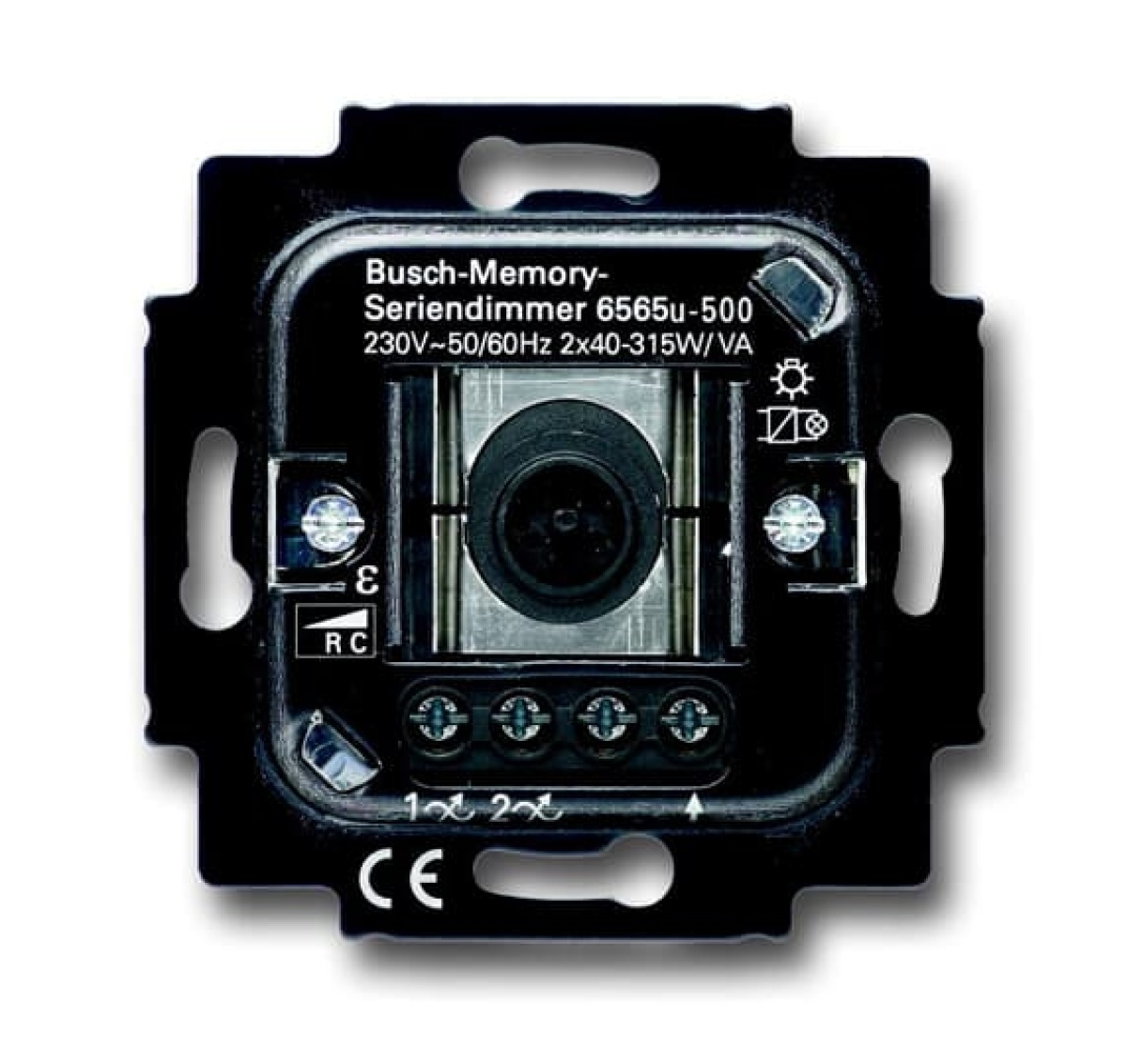

For switching and dimming 2 independent devices. With trailing edge control. 2gang 1way For incandescent lamps, 230 V tungsten halogen lamps and low-voltage halogen lamps with electronic transformers. Compatible with control covers 6545-xxx. Without cover, without cover plate. Outputs: 2 independent dimmer channels. Rated power: 40-315 W/VA per channel.
Switches, Dimmers, and Buttons
6565 U-500 Flush Mounted Inserts Flush-mounted installation boxes and inserts
Nortécnica Ref:
EAN:
4011395096017
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Assembly arrangement
Basic element
Operating method
Touch control button
Colour
-
Halogen free
No
EF000074
-
Connection type
Screwed terminal
Surface protection
Untreated
Consumo potência em VA
-
Frequency
-
-
Material quality
Other
Type of load
Capacitive load
Material
Metal
Type of fastening
-
Light value memory
-
Substation input
-
Número RAL semelhante
-
Serial dimmer
-
Applicable with movement sensor
-
Applicable with transmission button
-
Applicable with infrared button
-
Applicable with presence indicator
-
Applicable with button
-
Applicable with time switchtimer
-
Impact strength
IK00
Nominal voltage
230
230
Control voltage
220
240
Transparent
-
Surface finishing
Matt
Suitable for degree of protection IP
-
Core cross section
-
-
Largura do dispositivo
71
Altura do dispositivo
71
Profundidade do dispositivo
41
Número de módulos sistema de módulos
0
IFTTT support available
No
Dimming phase cut-off trailing edge
-
Dimming phase cut-on leading edge
-
Min. profundidade da caixa de instalação embutida
32
App control via Bluetooth
-
Nominal power resistive load
-
-
Nominal power inductive load
-
-
Nominal power capacitive load
-
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Min. brightness controllable
-
Brands
ABB
