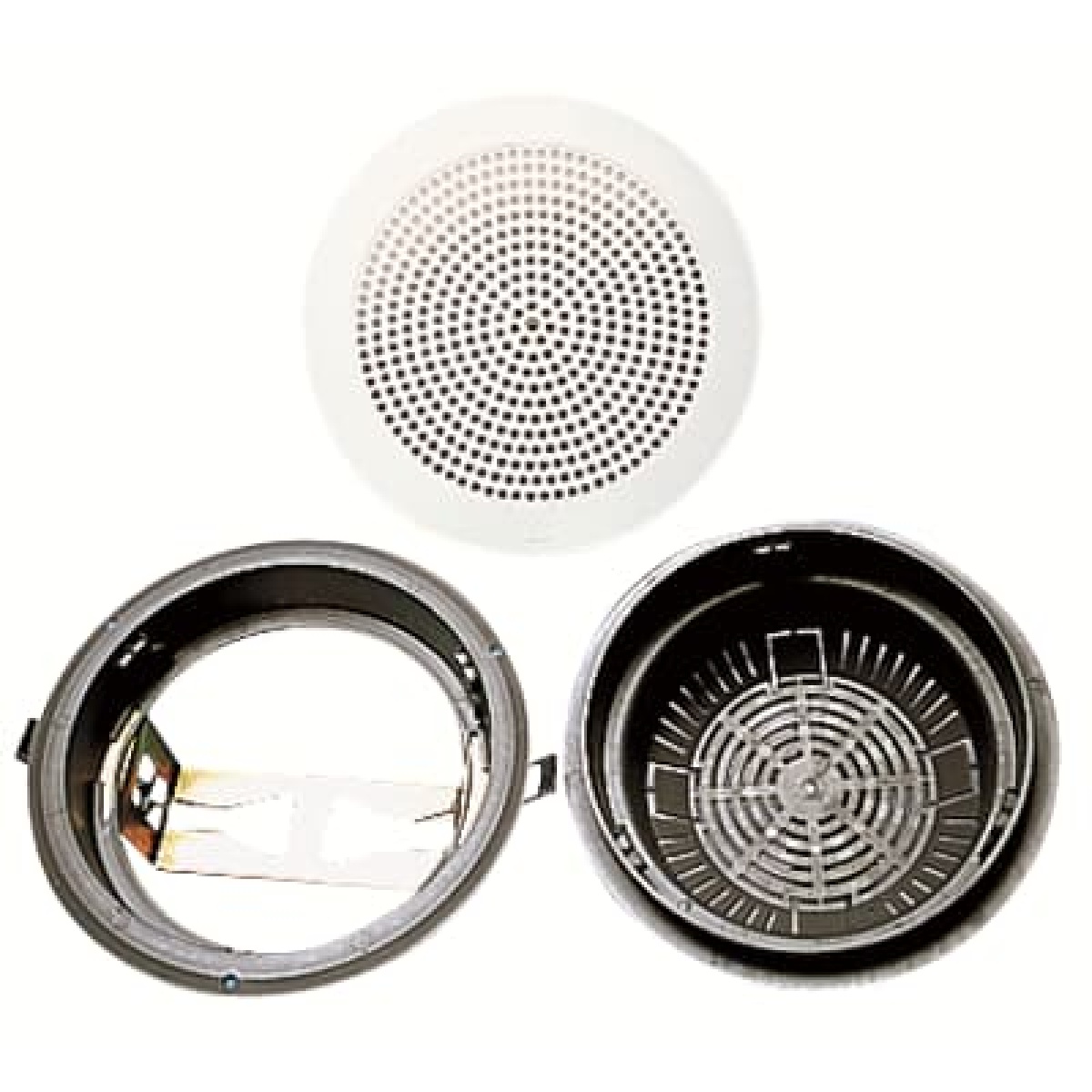

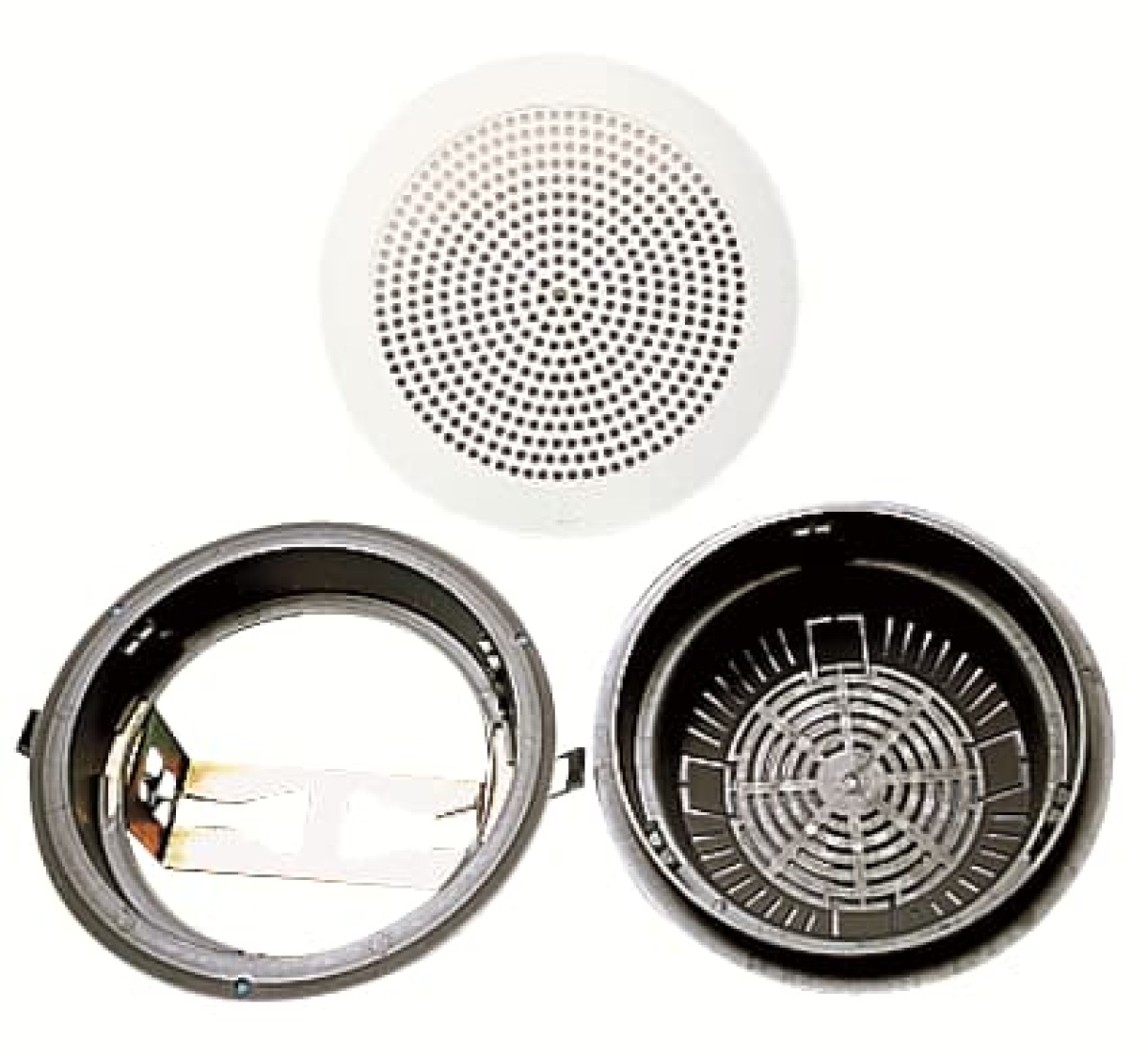

For 9329.1 loudspeaker For flush-mounted assembly Drilling measurements: 174 mm. Mounting depth: 84 mm
Boxes
Device Connection Box Round Square Sound device 1-gang Black - Platform 8100
Nortécnica Ref:
EAN:
8427238028279
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
Black
Width
62.000
Model
Single
Halogen free
Yes
Shape
Round
Surface protection
Untreated
Diameter
-
Equipped with
-
Construction type
Device connection box (round/square)
Profundidade interior
-
Couplable
No
Length
73.000
Sealable
No
Integridade do circuito
E60
Material
Plastic
Número de vias de entrada
2
Mounting switching equipment
Spread
Cover attachment
-
Para o número de acessórios
1
Luminaire hook mounting
No
Máx. seção transversal do condutor
-
With screening
No
With screws
No
Airtight
No
Depth
73.000
73.000
Suitable for cable diameter
0
8
Degree of protection IP
IP20
For tube diameter
16 mm
Inlet from the rear
Yes
Pipe locking
No
Special application
-
Clamp position fixed
-
With partition panel
-
Número de polos do terminal
-
Nozzle
-
Provided with revolving ring
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Número de bicos incluídos
0
Cover model
-
Housing feed-through by break-out opening
Yes
Transparent cover
-
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
Número de olhais de fixação do dispositivo não ajustáveis
-
Número de olhais de fixação do dispositivo ajustáveis
-
Brands
ABB
Long Description
For 9329.1 loudspeaker
For flush-mounted assembly
Drilling measurements: 174 mm.
Mounting depth: 84 mm
