Zenit workstation box for flush mounted installations. 3-columns - 2+2+2+2+2+2 modules. For 1 or 2 module devices. Also suitable for T10XX devices. Size (height x width x depth): 150 x 211 x 45 mm Included: - Mounting plates (vertically folding devices for easy installation). - multi-box linking accessories. - Screws. - Plugs. - Isolating metallic plate to devide power from VDI. - Claws for drywall. Suitable for frames code: T1173.
Boxes

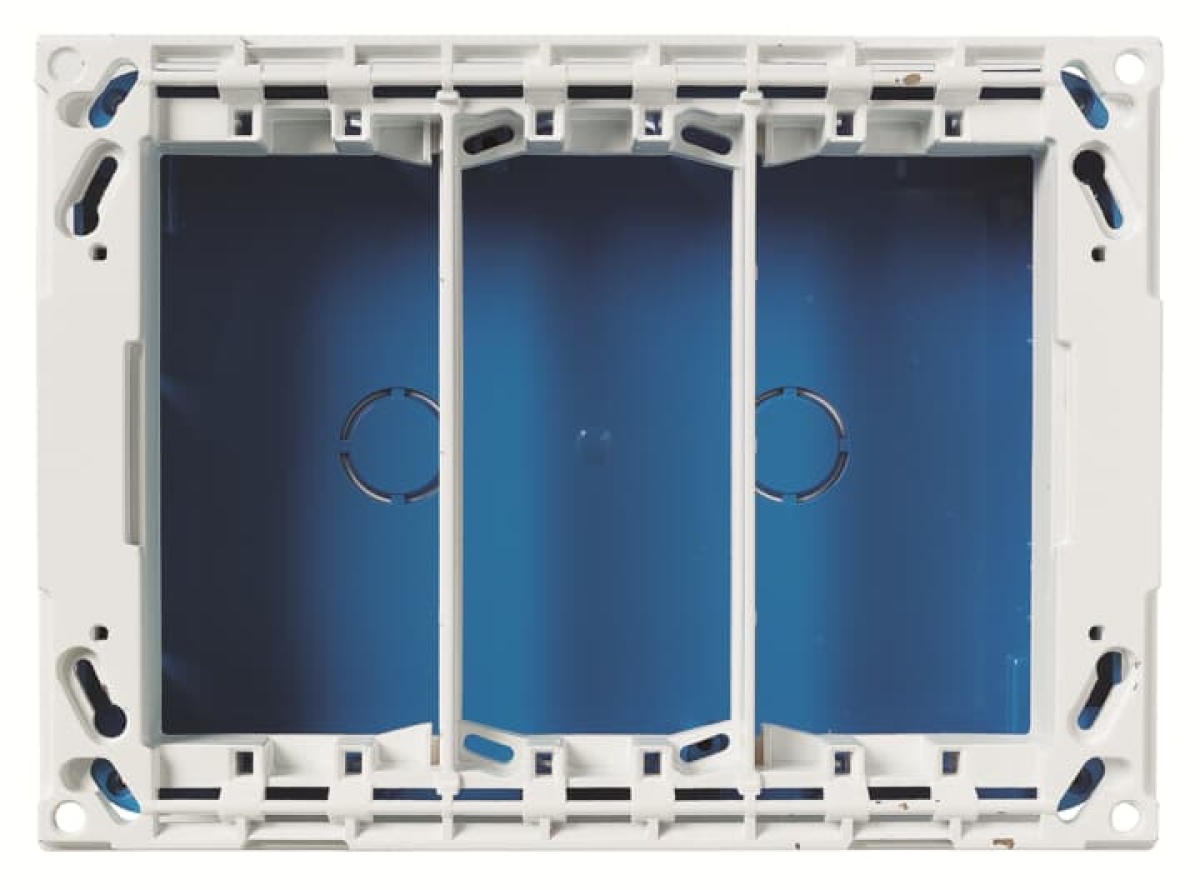

Device Connection Box Round Square Workstation 12-gang with Mounting plate Blue - Zenit
Nortécnica Ref:
EAN:
8427238055329
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
Blue
Largura
211
Model
Single
Halogen free
Yes
Shape
Rectangular
Surface protection
Untreated
Diâmetro
-
Equipped with
Mounting plate
Construction type
Device connection box (round/square)
Inner depth
-
Couplable
No
Comprimento
42
Sealable
No
Circuit integrity
E60
Material
Plastic
Number of inlets
4
Mounting switching equipment
Screwing
Cover attachment
-
For number of device inserts
2
Luminaire hook mounting
No
Max. conductor cross section
-
With screening
No
With screws
Yes
Airtight
No
Depth
42
42
Suitable for cable diameter
0
8
Degree of protection IP
IP20
For tube diameter
16 mm
Inlet from the rear
Yes
Pipe locking
No
Special application
-
Clamp position fixed
-
With partition panel
-
Number of poles of the clamp
-
Nozzle
-
Provided with revolving ring
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Number of included spouts
0
Cover model
-
Housing feed-through by break-out opening
Yes
Transparent cover
No
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
Number of non-adjustable device fixing lugs
-
Number of adjustable device fixing lugs
-
Brands
ABB
Descrição Longa
Zenit workstation box for flush mounted installations.
3-columns - 2+2+2+2+2+2 modules.
For 1 or 2 module devices. Also suitable for T10XX devices.
Size (height x width x depth): 150 x 211 x 45 mm
Included:
- Mounting plates (vertically folding devices for easy installation).
- multi-box linking accessories.
- Screws.
- Plugs.
- Isolating metallic plate to devide power from VDI.
- Claws for drywall.
Suitable for frames code: T1173.
