For flat flush-mounted installation, hollow wall Suitable for cover frame carat®. For double planking. Set consists of a flush-mounted box for cavity walls 3050. With positioning device and adapter rings. Suitable for drywalls and plasterboards for 9,5 mm, 10 mm and 12,5 mm. With Torx/slotted screws. Mounting boxes are combinable directly. With flex knockouts for cables or pipes. Fast installation via cable strap latches. A 74 mm diameter moulding cutter with countersink is needed. Hole size : 74 mm
Boxes

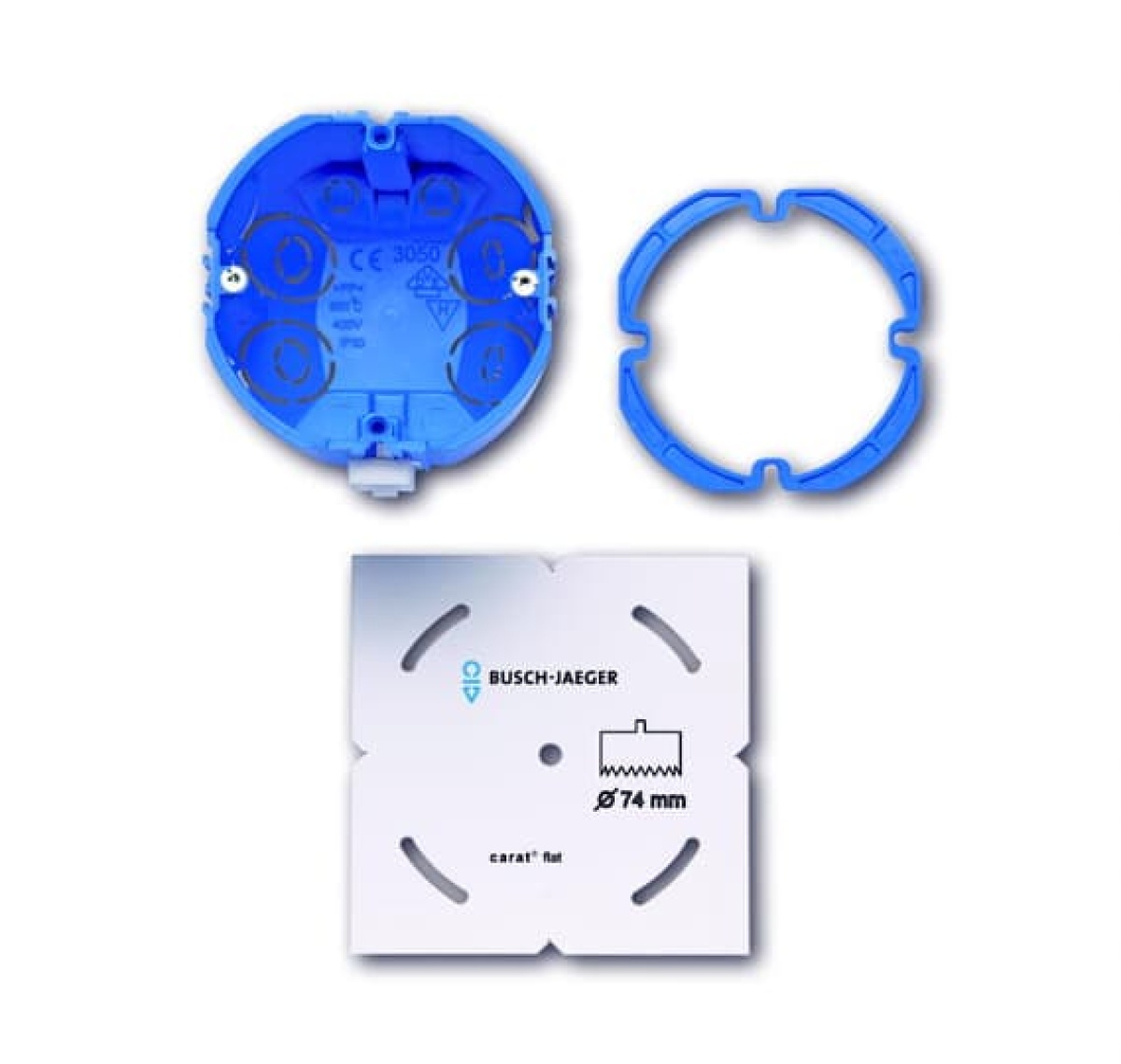

Mounting box set 1 gang blue - carat
Nortécnica Ref:
EAN:
8712507115041
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
Blue
Width
85
Model
4-fold
Halogen free
Yes
Shape
Round
Surface protection
Untreated
Diameter
73
Equipped with
-
Construction type
Built-in installation box (device box)
Inner depth
85
Couplable
No
Length
74
Sealable
No
Circuit integrity
-
Material
Plastic
Number of inlets
8
Mounting switching equipment
Screwing
Cover attachment
Snapped on
For number of device inserts
1
Luminaire hook mounting
No
Max. conductor cross section
-
With screening
No
With screws
Yes
Airtight
No
Depth
74
74
Suitable for cable diameter
-
-
Degree of protection IP
IP20
For tube diameter
20 mm
Inlet from the rear
Yes
Pipe locking
-
Special application
-
Clamp position fixed
No
With partition panel
-
Number of poles of the clamp
-
Nozzle
-
Provided with revolving ring
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Number of included spouts
-
Cover model
Construction protective cover
Housing feed-through by break-out opening
Yes
Transparent cover
-
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
Number of non-adjustable device fixing lugs
-
Number of adjustable device fixing lugs
-
Brands
ABB
Descrição Longa
For flat flush-mounted installation, hollow wall Suitable for cover frame carat®. For double planking. Set consists of a flush-mounted box for cavity walls 3050. With positioning device and adapter rings. Suitable for drywalls and plasterboards for 9,5 mm, 10 mm and 12,5 mm. With Torx/slotted screws. Mounting boxes are combinable directly. With flex knockouts for cables or pipes. Fast installation via cable strap latches. A 74 mm diameter moulding cutter with countersink is needed. Hole size : 74 mm
