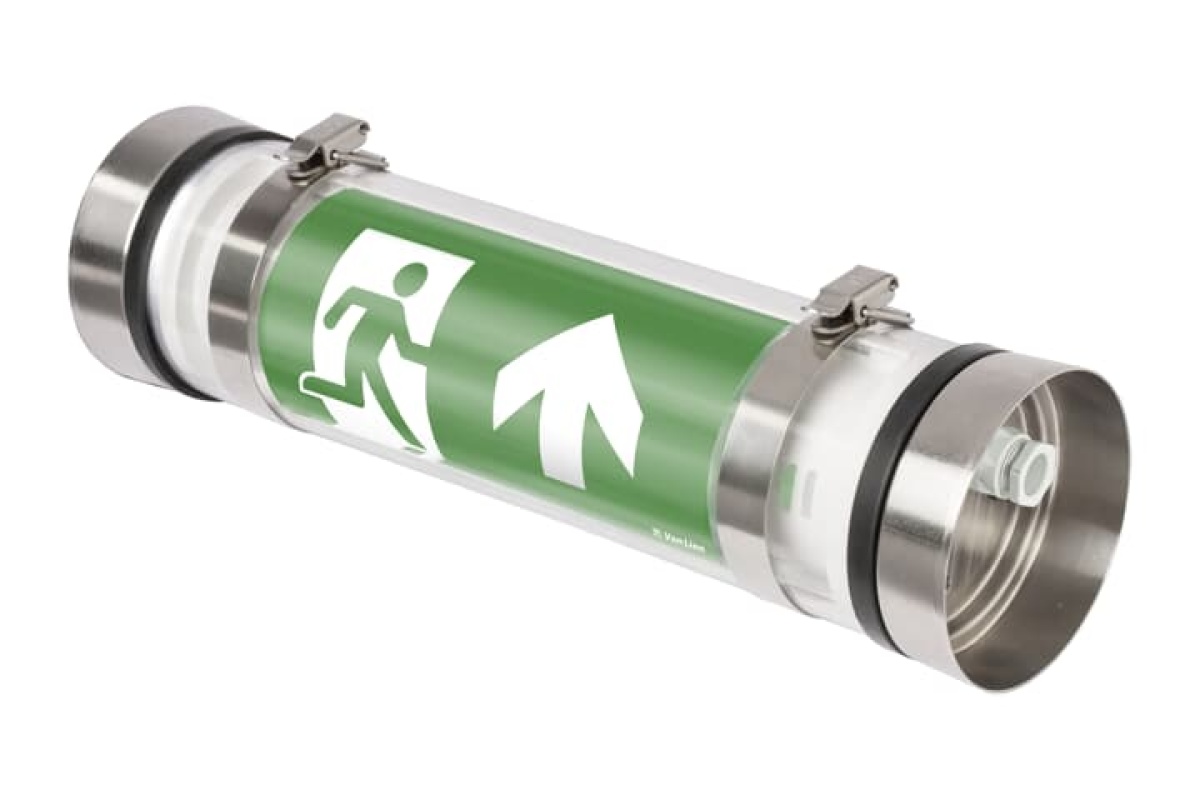

Slave 4 watt, 230 Volt surface mount led luminaire, series Indulux
Description
Technical Information
Attributes
Mounting method
Wall surface mounting/ceiling surface mounting
Protection class according to IEC 61140
II
Largura
114
Diâmetro externo
108
Function
Escape route lighting/signage
Lamp holder
-
Secção transversal do condutor
2.5
Connection type
Other
Housing colour
Stainless steel
Voltage type
AC/DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
-
Diâmetro para embutir
-
Suitable for labelling type
Insert sheet/plate
Type of indicator
Single-sided
Número de polos
6
Comprimento
398
Alturaprofundidade
114
Housing material
Stainless steel
Lamp type
LED not exchangeable
Número de fontes de luz
1
Comprimento para embutir
-
Material cover
Plastic, transparent
Impact strength
IK10
Battery technology
-
Nominal voltage
220
230
Degree of protection IP
IP68
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Adequado para número de lâmpadas
1
With remote switch connection
No
EF008091
EV010144
Distância de reconhecimento
17
Nominal current
-
-
Colour temperature
6000
6000
Potência máx. do sistema
6.5
EF009349
400
Constant light output CLO
-
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
-
Fluxo luminoso no modo de espera
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
-
Light distributor
Diffuser lens/optic/panel
RAL da carcaça
-
Nominal operation time
-
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
-
Suitable for continuous circuit
-
Alturaprofundidade para embutir
-
Fator de potência
0.9
Brands
ABB
Descrição Longa
Slave 4 watt, 230 Volt surface mount led luminaire, series Indulux
