For automatic switching of devices dependent on motion and brightness. For down-to-ground detection. For relay inserts 6401 U-102, 6402 U and 6812 U-101. For MOS-Fet insert 6804 U-101. For Dimmer insert 6593 U. For extension insert 6805 U. With integrated selector switch for ON-AUTOMATIC-OFF (lockable). Soft phase-out: In combination with the 6593 U (mode of operation: Soft OFF) the illumination is dimmed down within 60 sec and switched off. Surveillance density: 28 sectors with 112 switching segments. Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
Motion and Presence Detectors

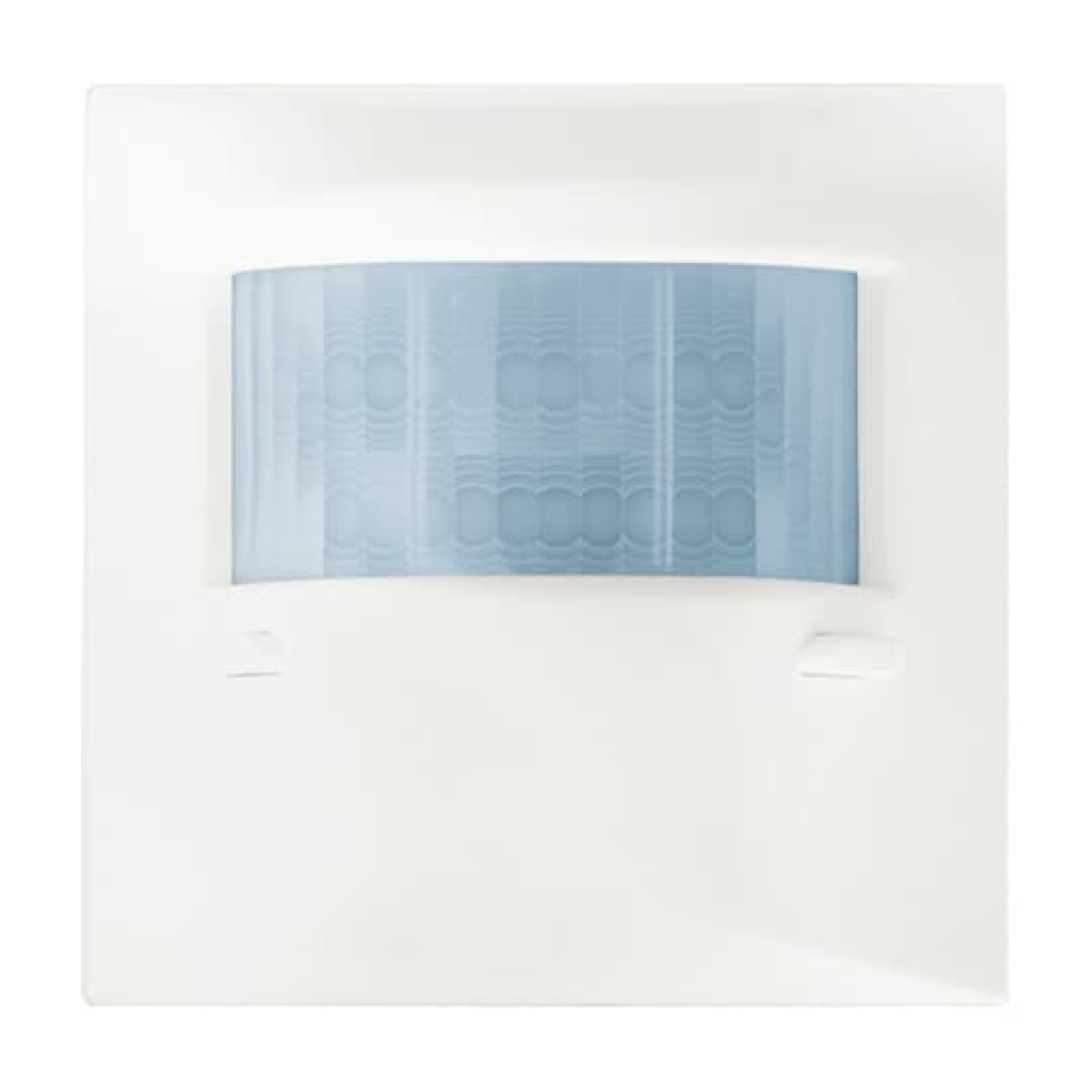

Electronic Controls Movement sensor studio white matt - impuls
Nortécnica Ref:
EAN:
4011395129814
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
White
Model
EV004048
Halogen free
Yes
Creep-under protection
No
Staircase light controller
Yes
Suitable for wireless transmission
No
Material quality
Thermoplastic
Comprimento máximo de alcance
15
Alcance máximo lateral
5
Material
-
Response value sensitivity adjustable
-
Dim function with dimmer basic element
Yes
Campo de deteção do diâmetro do solo
-
HVAC-control
No
Constant light control
No
Mounting height
-
Número RAL semelhante
9016
Teach-function for response value luminosity
No
Networkable
Yes
Operation mode switch
Yes
Animal zone
No
Detection angle horizontal
0
180
Duração mínima de funcionamento
10
Ciclo máximo de funcionamento
32
Suitable for degree of protection IP
IP20
Response value luminosity adjustable
Yes
Switch-off delay self-learning
No
With orientation lighting
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Combination movement sensorpush button switch
-
Brands
ABB
Descrição Longa
For automatic switching of devices dependent on motion and brightness. For down-to-ground detection. For relay inserts 6401 U-102, 6402 U and 6812 U-101. For MOS-Fet insert 6804 U-101. For Dimmer insert 6593 U. For extension insert 6805 U. With integrated selector switch for ON-AUTOMATIC-OFF (lockable). Soft phase-out: In combination with the 6593 U (mode of operation: Soft OFF) the illumination is dimmed down within 60 sec and switched off. Surveillance density: 28 sectors with 112 switching segments. Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
