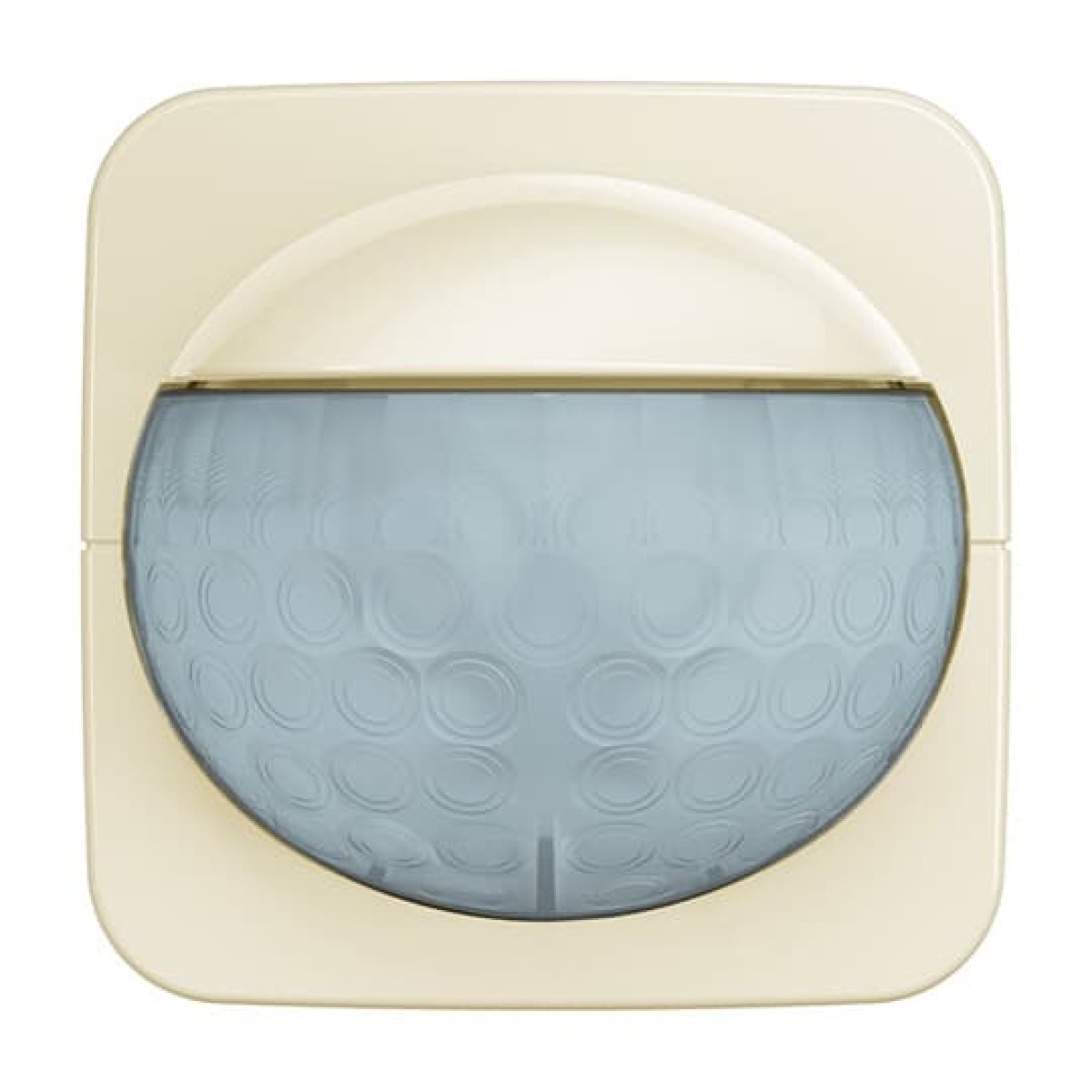

Motion detector Enrolment device Wireless white - Busch-Duro 2000 SI
ABB

Motion and Presence Detectors

Motion detector Enrolment device Wireless white - Busch-Duro 2000 SI

Nortécnica Ref:
EAN: 4011395294468

Description

Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness. Push switch function possible at all times. For detection down to the floor. For detection in stairwells. With 4 detection levels. In combination with dimmer insert flex: dimming function of lighting and selectable light value storage. With time-controlled basic illumination function. With time-controlled night anti-glare function. With enabling of pre-warning of switch-off for stairwell operation. Compatible with all free@home flex inserts. Remote operation via the Bluetooth and smartphone/tablet app. Multi-lens: suitable also for mounting heights of 2.20 m. Extension of the detection range by means of master/slave combination. Timer with Astro function. Automatic switchover from summer time to winter time (switch-off function). With continuous light/continuous Off function. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 54 sectors with 224 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. For relay insert flex, 1gang, 64811 U. For e-contact insert flex, 1gang, 64814 U. For series relay insert flex, 2gang, 64821 U.

Technical Information

Attributes
Mounting method
Flush-mounted
Colour
White
Model
EV000154
Halogen free
Yes
Creep-under protection
No
Staircase light controller
Yes
Suitable for wireless transmission
Yes
Material quality
Thermoplastic
Max. reach frontally
8
Max. reach sideways
8
Material
-
Response value sensitivity adjustable
-
Dim function with dimmer basic element
Yes
Diameter reach on floor
-
HVAC-control
No
Constant light control
No
Mounting height
-
RAL-number similar
1013
Teach-function for response value luminosity
Yes
Networkable
Yes
Operation mode switch
Yes
Animal zone
No
Detection angle horizontal
13
180
Min. switch-on time
30
Max. duty cycle
30
Suitable for degree of protection IP
IP20
Response value luminosity adjustable
Yes
Switch-off delay self-learning
No
With orientation lighting
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Combination movement sensorpush button switch
Yes
Brands
ABB
Descrição Longa
Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness. Push switch function possible at all times. For detection down to the floor. For detection in stairwells. With 4 detection levels. In combination with dimmer insert flex: dimming function of lighting and selectable light value storage. With time-controlled basic illumination function. With time-controlled night anti-glare function. With enabling of pre-warning of switch-off for stairwell operation. Compatible with all free@home flex inserts. Remote operation via the Bluetooth and smartphone/tablet app. Multi-lens: suitable also for mounting heights of 2.20 m. Extension of the detection range by means of master/slave combination. Timer with Astro function. Automatic switchover from summer time to winter time (switch-off function). With continuous light/continuous Off function. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 54 sectors with 224 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. For relay insert flex, 1gang, 64811 U. For e-contact insert flex, 1gang, 64814 U. For series relay insert flex, 2gang, 64821 U.

Technical Sheet
