230 V ; 50 Hz. 1200 W. 302 VA. Detection angle: 360º. Time setting 1: 5 seg. - 12 min. Time setting 2: 10 seg. - 30 min. Detection range: 6-8 m installed in 2,5 m height. Provides a potential-free contact. For ciling with flush mounting box. With two relays, one of them potential-free.
Motion and Presence Detectors

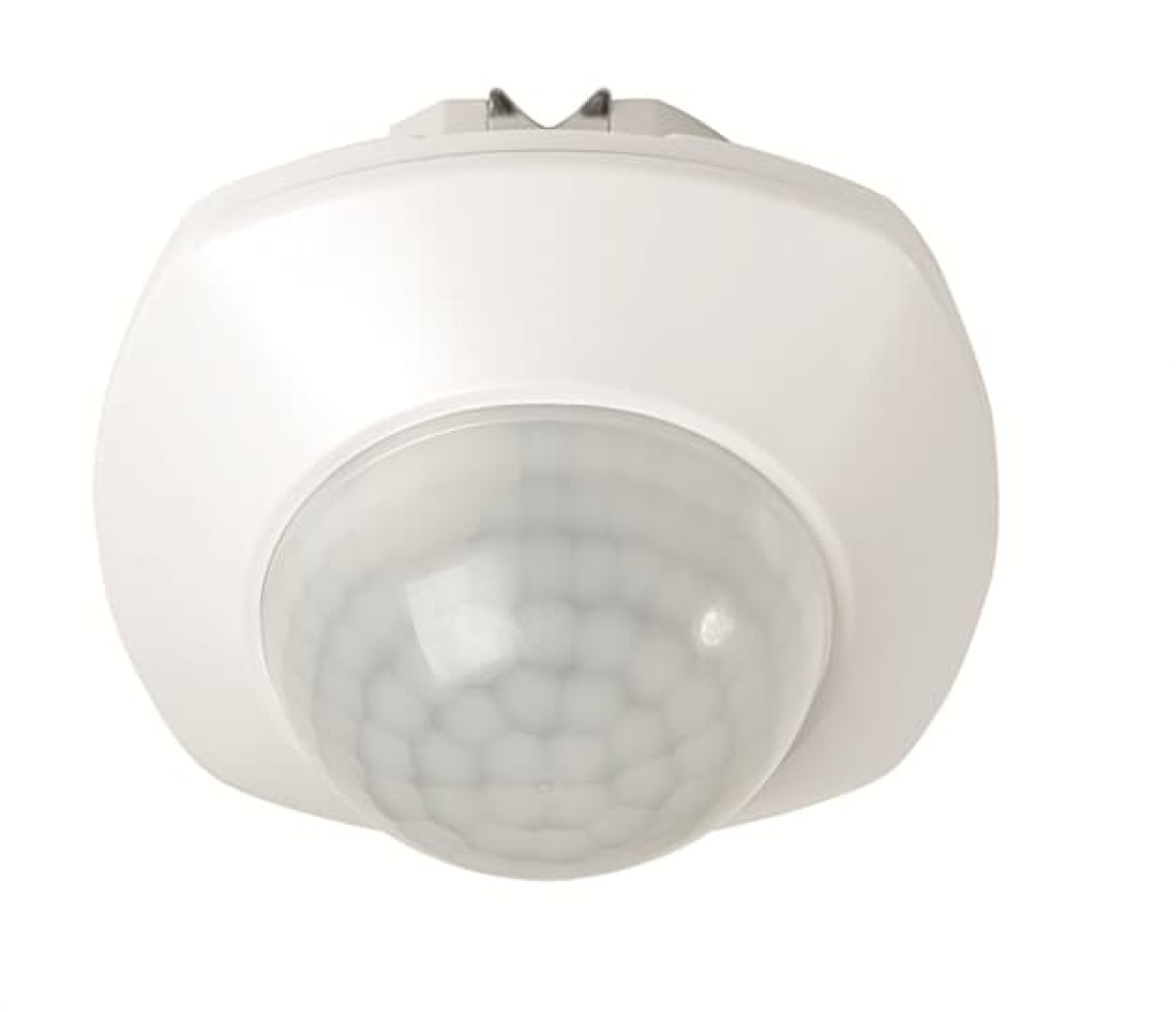

N9611.71 Motion detector ceiling
Nortécnica Ref:
2788N9611.71
EAN:
8427238081748
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
White
Largura
98.000
Model
Movement sensor
Halogen free
Yes
Altura
102.000
Profundidade
127.000
Connection type
-
Surface protection
Untreated
Creep-under protection
Yes
Voltage type
AC
Atraso na ligação
1800
Atraso de desligamento
5
Profundidade incorporada
45
Frequency
-
-
With remote control
No
Diameter
90
Suitable for wall mounting
No
Built-in width
0
Built-in diameter
68
Staircase light controller
-
Bridging switch
-
Suitable for wireless transmission
Yes
Material quality
Thermoplastic
Comprimento máximo de alcance
8
Alcance máximo lateral
8
Potência de comutação máxima
1200
EF001731
20
20
Corrente máxima de arranque
5
Material
Plastic
Response value sensitivity adjustable
No
Comprimento do cabo de conexão
-
Dim function with dimmer basic element
No
Response value luminosity
3
1000
Suitable for C-load
-
Campo de deteção do diâmetro do solo
8
Remote operation
No
HVAC-control
No
Constant light control
No
Substation input
No
Número RAL semelhante
9010
With signal unit
No
Corrente de controlo
4500
Teach-function for response value luminosity
No
Networkable
Yes
Forced switch off
No
Ângulo de varrimento
360
Built-in length
-
Impact strength
-
With connection cable
-
Nominal voltage
240
240
Degree of protection IP
IP20
With alarm function
No
Transparent
No
Animal zone
No
Surface finishing
Matt
Detection angle horizontal
-
-
Duração mínima de funcionamento
5
Ciclo máximo de funcionamento
30
Response value luminosity adjustable
Yes
Altura de montagem ideal
2.5
Swivel range sensor, horizontal
0
0
Swivel range sensor, vertical
0
0
Número de zonas de comutação
-
EF009569
No
IFTTT support available
No
Forced switch on
No
Min. Corrente inicial
-
Min. profundidade da caixa de instalação embutida
45
Faixa de presença max.
201.06176
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Potência máxima do LED
-
Background monitoring
-
With acoustic sensor
-
Sensor type
EV000154
Suitable for ceiling mounting
Yes
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
230 V ; 50 Hz.
1200 W.
302 VA.
Detection angle: 360º.
Time setting 1: 5 seg. - 12 min.
Time setting 2: 10 seg. - 30 min.
Detection range: 6-8 m installed in 2,5 m height.
Provides a potential-free contact.
For ciling with flush mounting box. With two relays, one of them potential-free.
