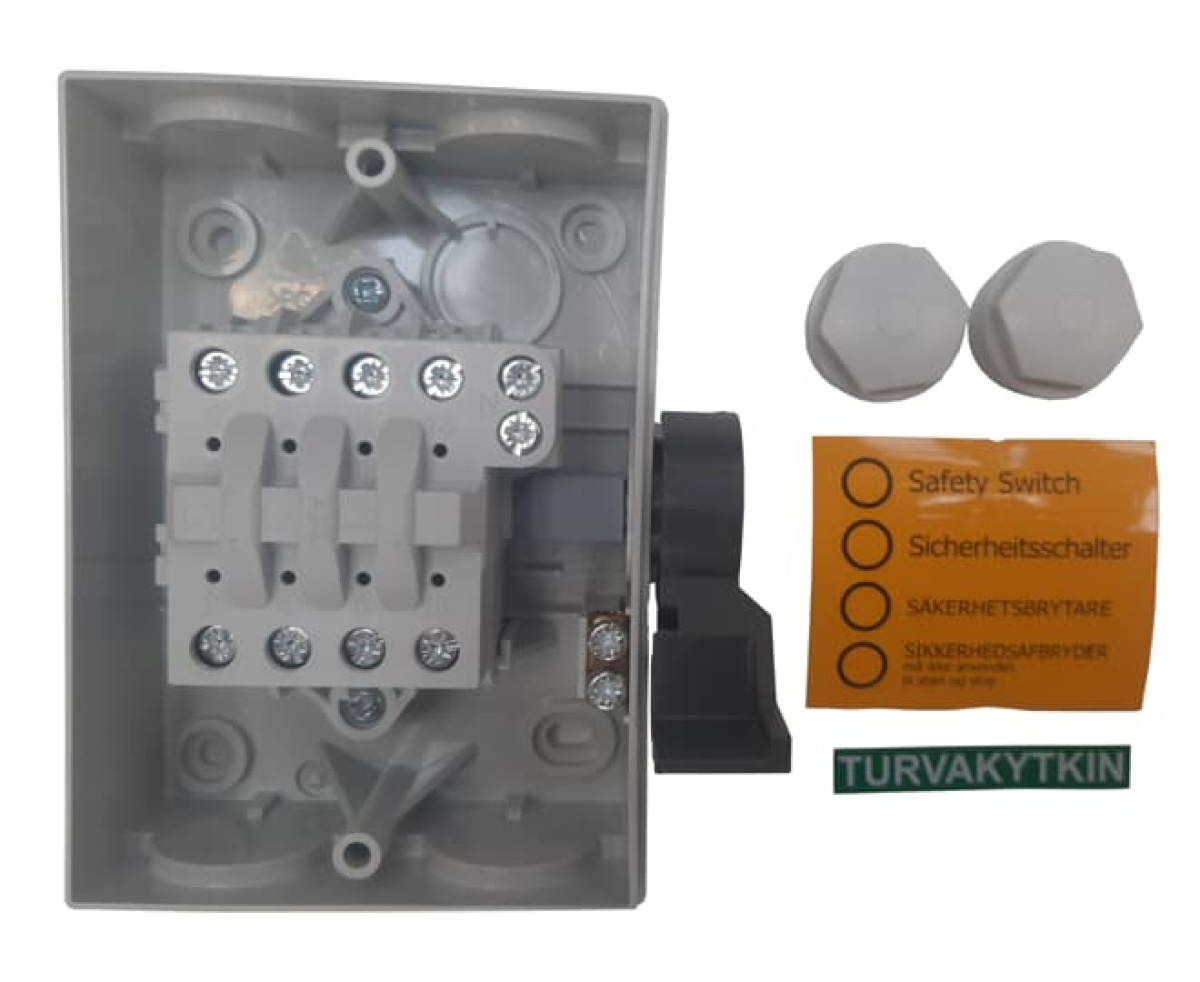

BWS316TPN Safety switch
Cutting and Protection Devices
BWS316TPN Safety switch
Nortécnica Ref:
EAN:
7392696424172
Description
Technical Information
Attributes
Width
111
Height
130
Depth
60
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
32
Number of poles
3
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP65
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
-
Version as emergency stop installation
No
Type of control element
Rocker lever
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
7.5
Rated short-time withstand current lcw
-
Colour control element
Grey
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
7.5
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
16
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
