User-friendly fuse-switch-disconnector in "drawer technology", with latching mechanism and captive fuse link carrier. Fuse can be replaced only if the system is de-energized. Compatible with D02 fuse links and D01 fuse link with reducing piece. Twin box terminal on both sides and user-friendly installation of cross-wiring in lower terminal. Compatible with auxiliary switch to indicate switching position.
Cutting and Protection Devices

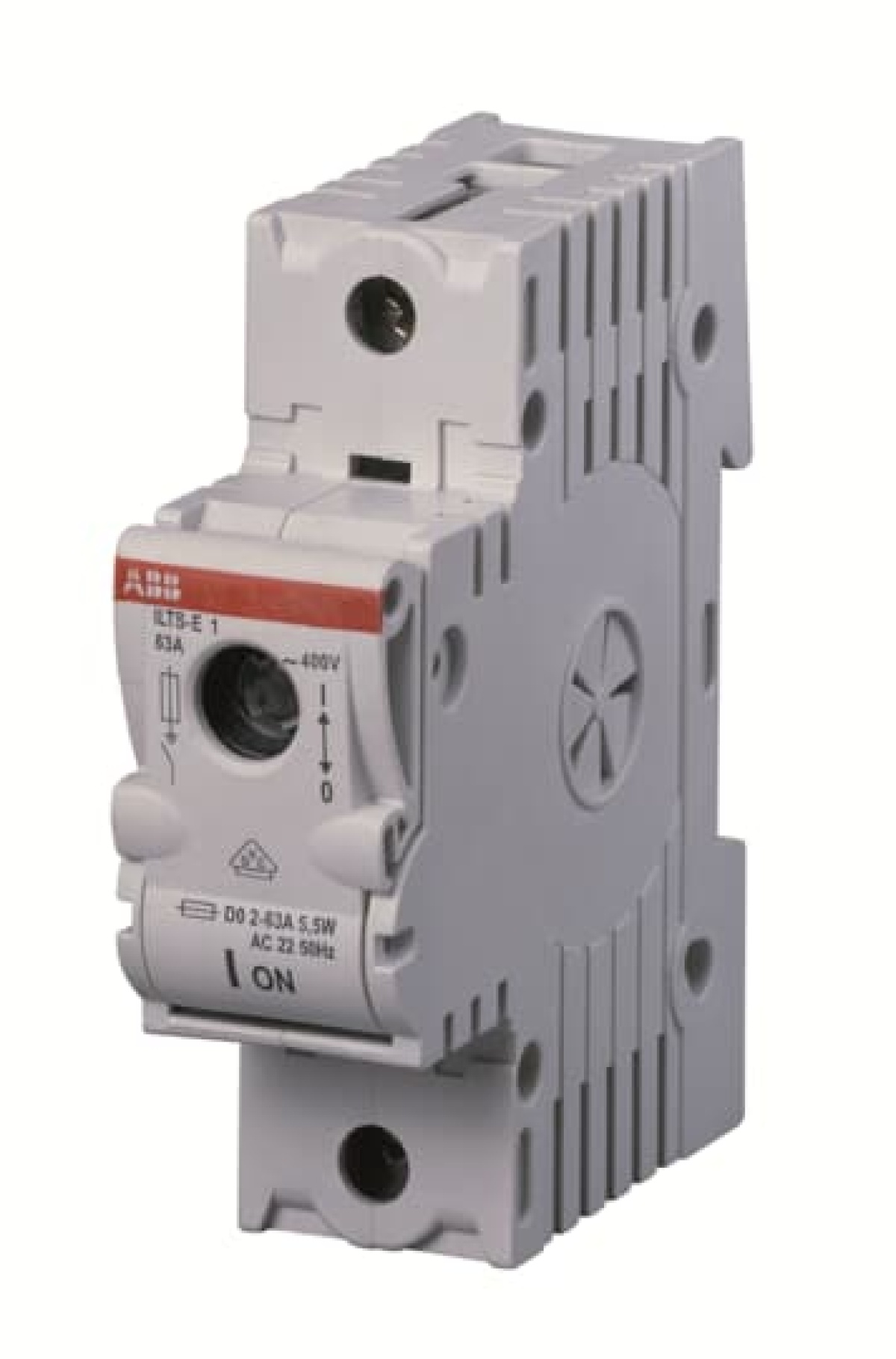

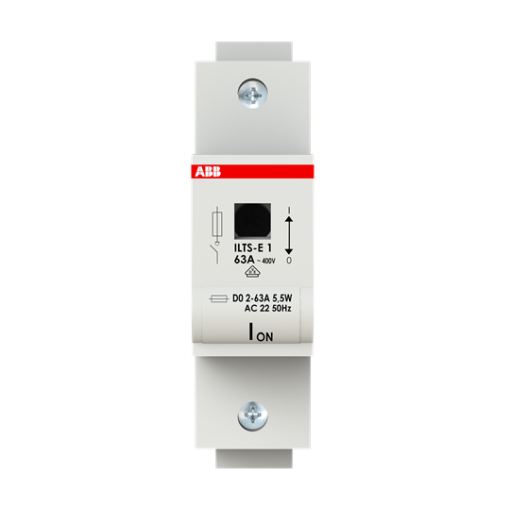

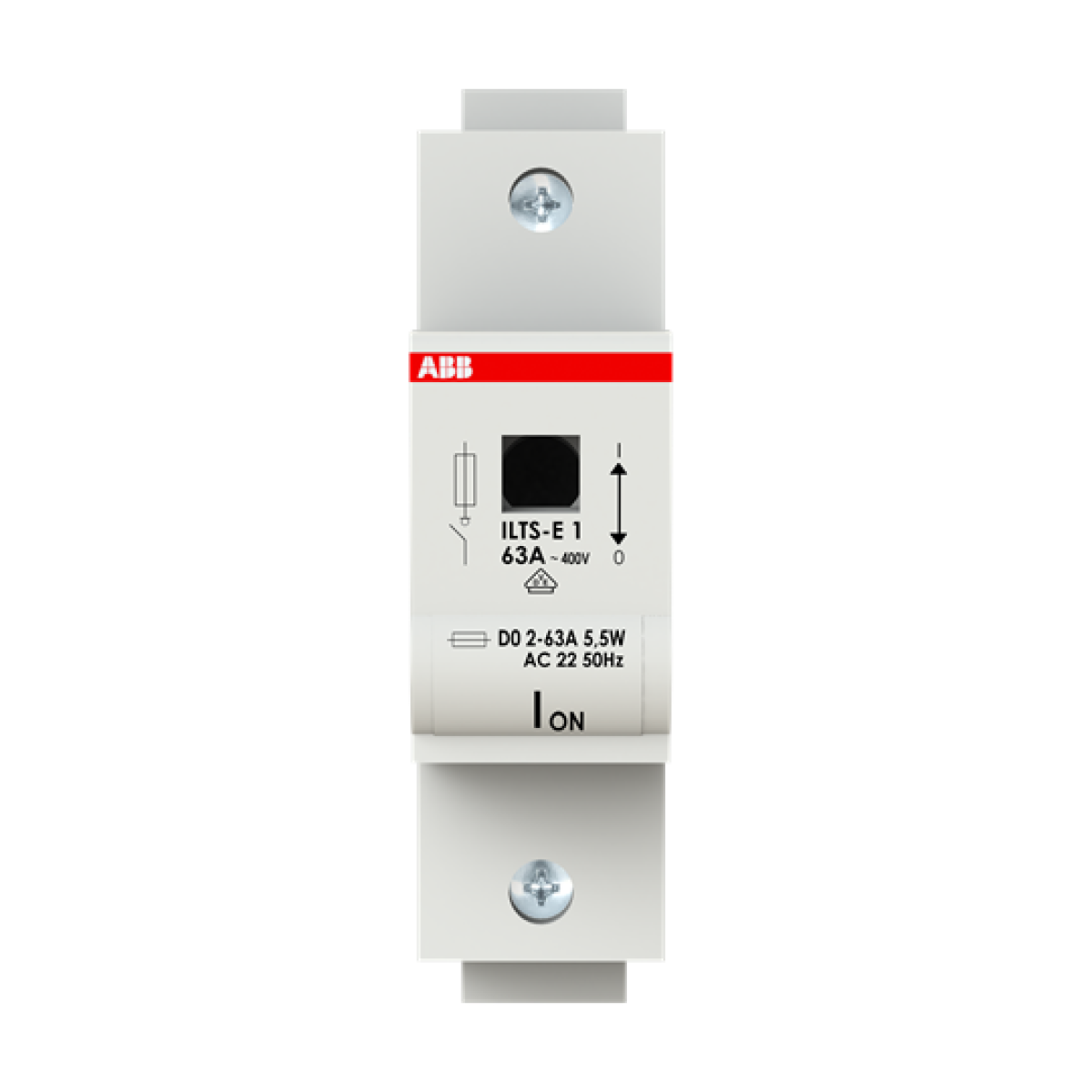

D0-fuse disconnector ILTS-E1
Nortécnica Ref:
EAN:
4016779653473
Description
Technical Information
Attributes
Voltage type
-
Switching function
-
With signal lamp
No
Built-in depth
70
Rated current
16
Rated voltage
-
Max. lamp power
-
Número de polos
1
Lamp type
-
Short-circuit breaking capacity Icw
-
Rated switching capacity
-
Width in number of modular spacings
1.5
Imprintindication
-
Colour calotte
-
Lamp socket
-
Min. rated voltage
-
Degree of protection IP
IP20
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Brands
ABB
Descrição Longa
User-friendly fuse-switch-disconnector in "drawer technology", with latching mechanism and captive fuse link carrier. Fuse can be replaced only if the system is de-energized. Compatible with D02 fuse links and D01 fuse link with reducing piece. Twin box terminal on both sides and user-friendly installation of cross-wiring in lower terminal. Compatible with auxiliary switch to indicate switching position.
