The RCD Block DDA800 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product provides the best compromise between safety and continuity in the service, thanks to the resistance to unwanted trippings. It is suitable for assembly with MCBs S800 series up to 100A.
Cutting and Protection Devices

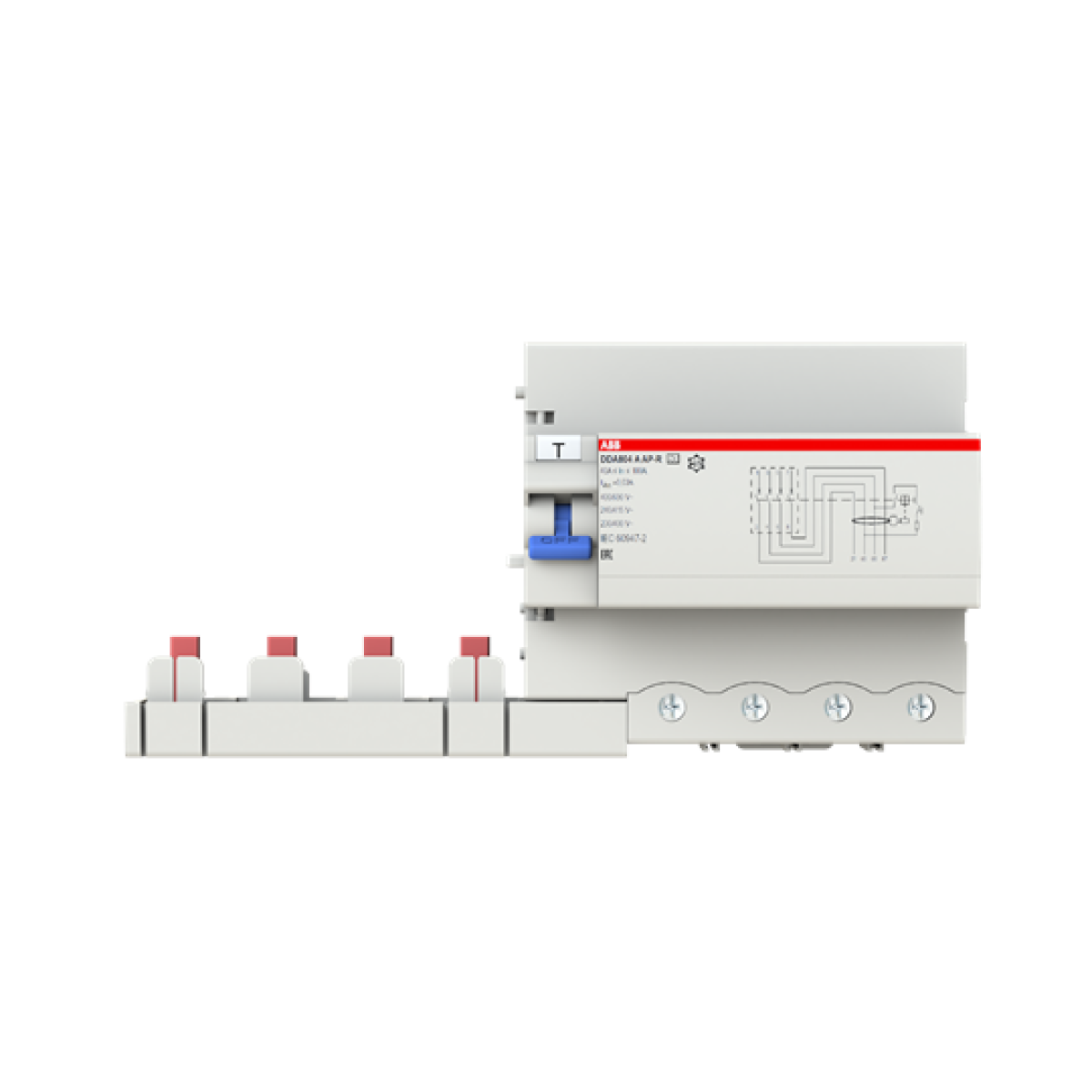

DDA804 A-1000,03 AP-R - RCD Block
Nortécnica Ref:
272CSB804401R1000
EAN:
8012542547136
Description
Technical Information
Attributes
Nominal current
100
Rated insulation voltage Ui
690
Number of poles
4
Delay adjustable
No
Max. delay time
-
Leakage current type
A
Surge current capacity
3
Pollution degree
-
Rated fault current
0.03
0.03
Nominal voltage
230
690
Power loss
10.5
Frequency
50/60 Hz
Degree of protection IP
IP2X
Connectable conductor cross section solid-core
6
50
Connectable conductor cross section multi-wired
6
70
With interlocking device
No
Ambient temperature during operating
-25
60
Rated fault current adjustable
No
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
6
Brands
ABB
Descrição Longa
The RCD Block DDA800 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product provides the best compromise between safety and continuity in the service, thanks to the resistance to unwanted trippings. It is suitable for assembly with MCBs S800 series up to 100A.
