C.BREAKER SACE EMAX2 E2.2H-A 1200 UL FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 1200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Cutting and Protection Devices

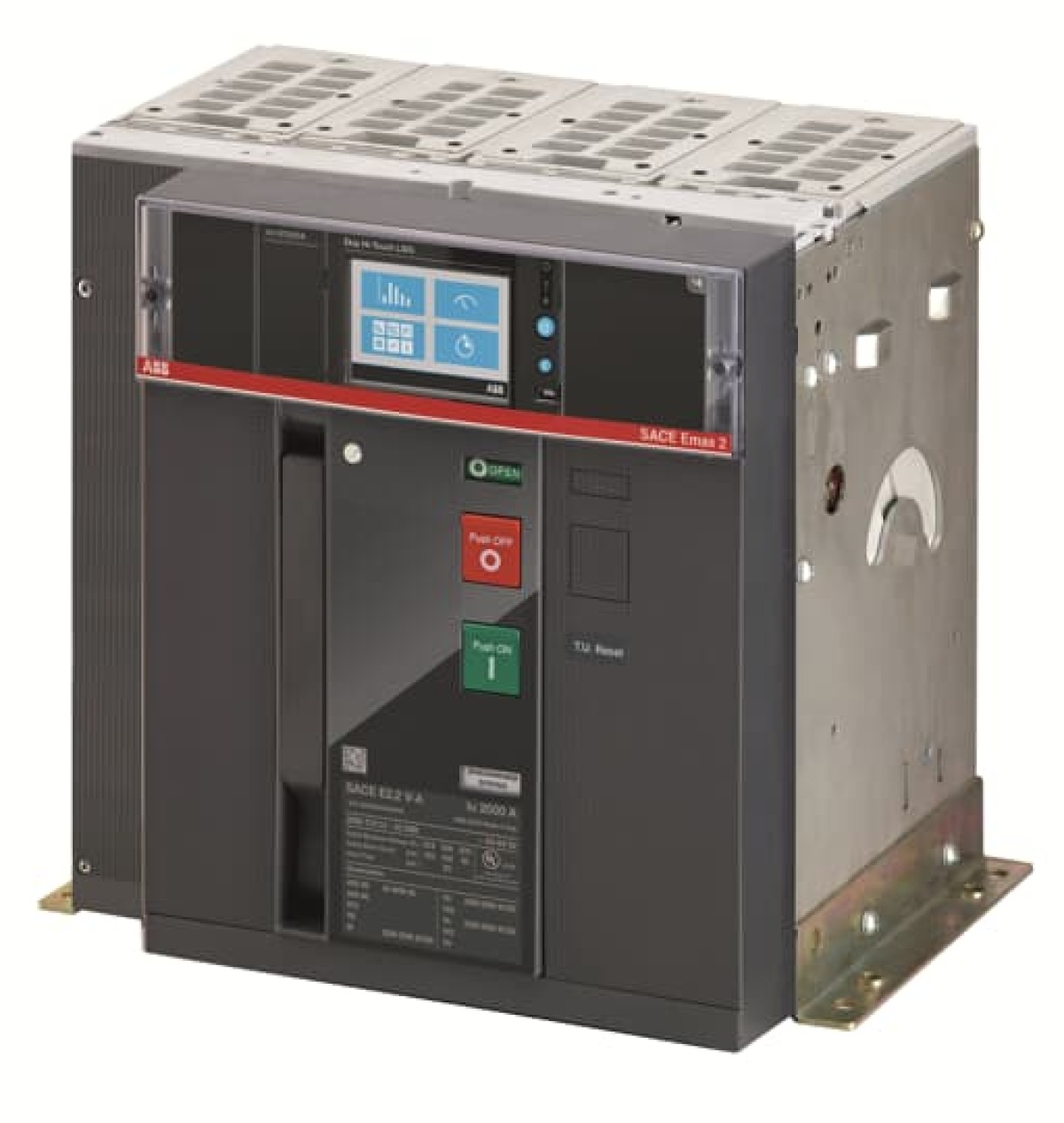

E2.2H-A 1200 Ekip Hi-Touch LSI 4p F HR
Nortécnica Ref:
EAN:
8015644838485
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1200
With integrated under voltage release
No
Number of poles
4
Overload release current setting
480.0
1200
Número de contatos auxiliares como contato de comutação
4
Rated voltage
600
600
Potência dissipada
99
Degree of protection IP
IP30
Position of connection for main current circuit
Back side
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Type of control element
Push button
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
-
Adjustment range short-term delayed short-circuit release
720.0
12000
Adjustment range undelayed short-circuit release
1800.0
18000
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
ABB
Long Description
C.BREAKER SACE EMAX2 E2.2H-A 1200 UL FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 1200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
