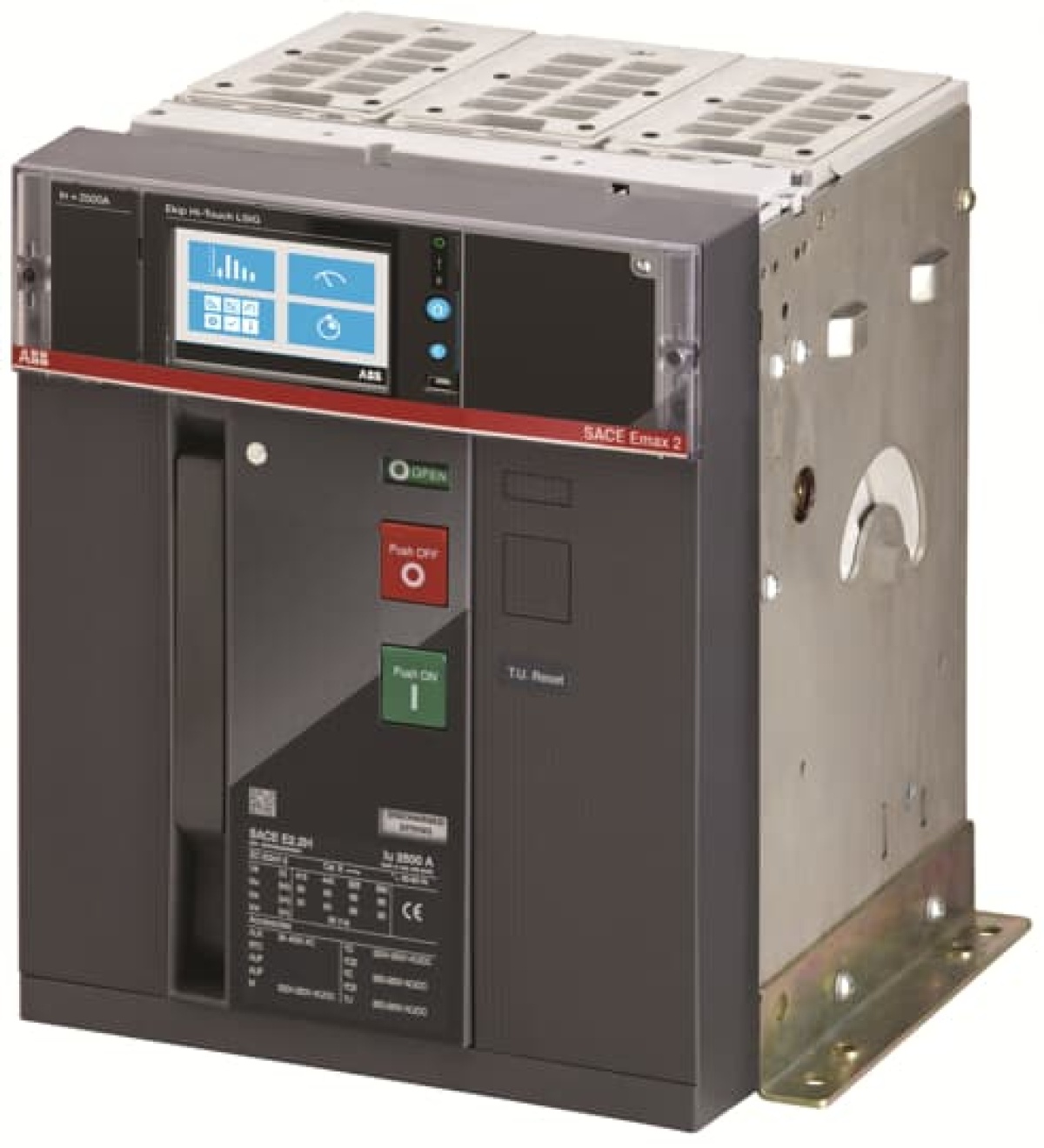

C.BREAKER SACE EMAX2 E2.2N 1000 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Cutting and Protection Devices
E2.2N 1000 Ekip Touch LI 3p F HR
Nortécnica Ref:
EAN:
8015644747749
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1000
With integrated under voltage release
No
Número de polos
3
Overload release current setting
400.0
1000
Número de contatos auxiliares como contato de comutação
4
Rated voltage
690
690
Potência dissipada
53
Degree of protection IP
IP30
Position of connection for main current circuit
Back side
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Type of control element
Push button
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
66
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
1500.0
15000
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
ABB
Descrição Longa
C.BREAKER SACE EMAX2 E2.2N 1000 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
