SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E2N/VF 1600A 1000V AC THREE-POLE OVERCURRENT RELEASE PR122/VF-LI R1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED SPEC.VERS.IEC FOR LOW FREQUENCY 1...60HZ
Cutting and Protection Devices

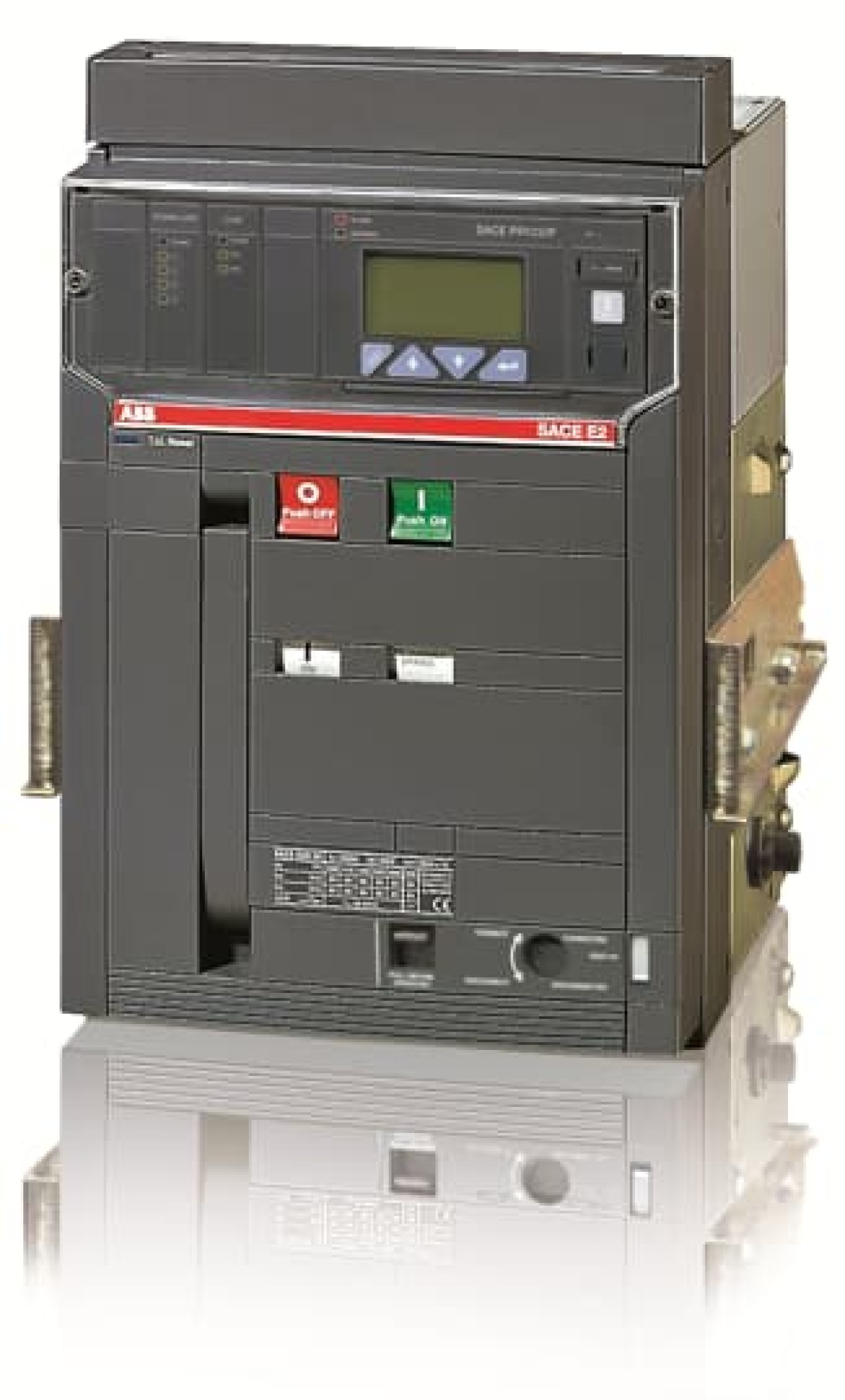

E2NVF 1600 PR122VF In1600A 3p WMP 1000V
Nortécnica Ref:
EAN:
8015644701673
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1600
With integrated under voltage release
No
Number of poles
3
Overload release current setting
640.0
1600
Número de contatos auxiliares como contato de comutação
4
Rated voltage
1000
1000
Power loss
215
Degree of protection IP
IP30
Position of connection for main current circuit
Connection at separate chassis part
Motor drive integrated
No
Type of electrical connection of main circuit
Connection at separate chassis part
Type of control element
Push button
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
65
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
2400.0
24000
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device slide-in technique (withdrawable)
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
ABB
Long Description
SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E2N/VF 1600A 1000V AC THREE-POLE OVERCURRENT RELEASE PR122/VF-LI R1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED SPEC.VERS.IEC FOR LOW FREQUENCY 1...60HZ
