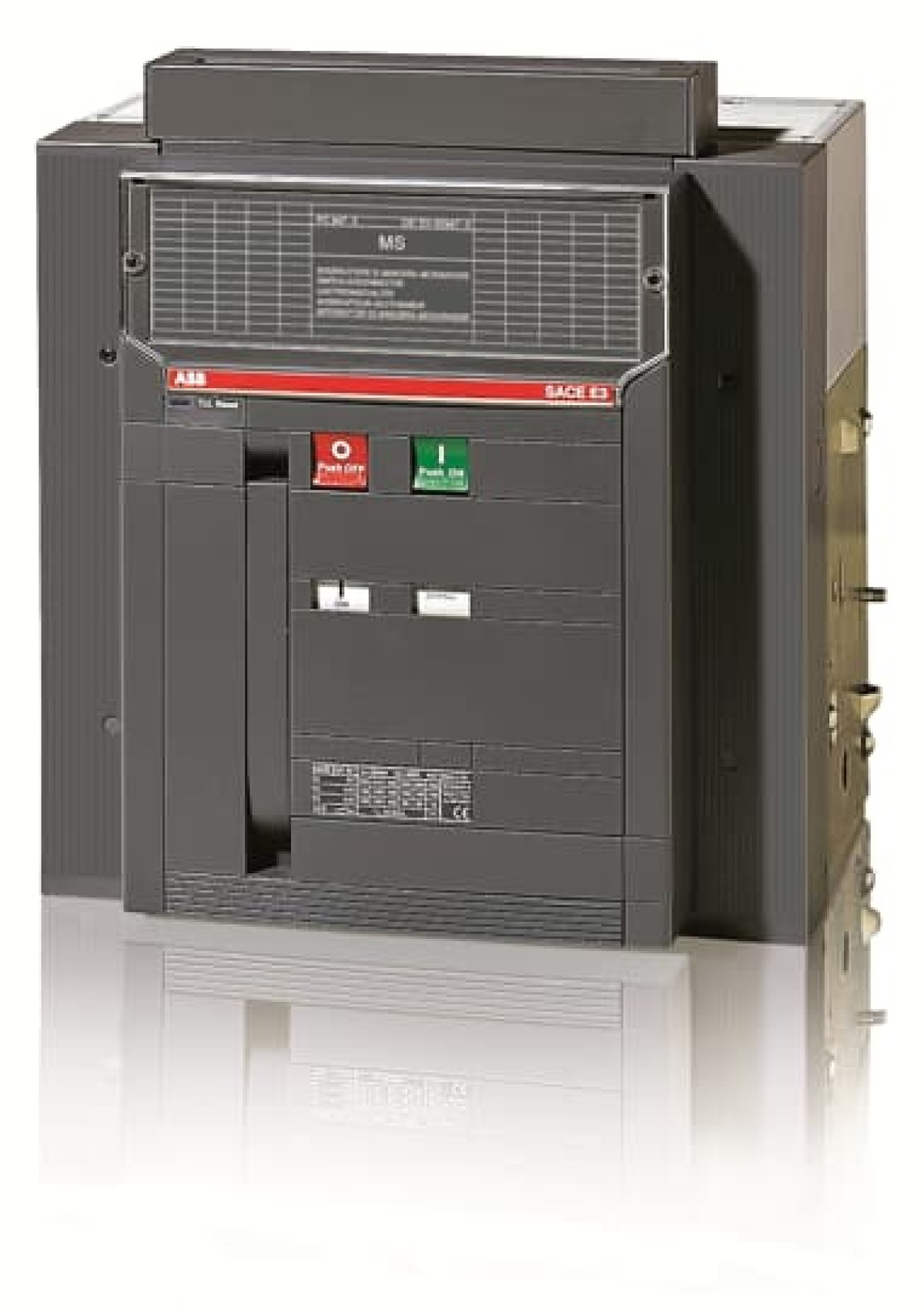

SACE EMAX C.BREAKER SWITCH-DISCONNECTOR E3H/VF-MS 2500A 1000V CA UL THREE-POLE FIXED WITH TERMINALES REAR HORIZONTAL NEW SPEC.VERS.IEC/UL FOR VARIABLE FREQUENCY 1...200HZ
Cutting and Protection Devices
E3HVF-MS 2500 3p F HR UL 1000VAC
Nortécnica Ref:
EAN:
8015644702250
Description
Technical Information
Attributes
Width
404
Height
418
Depth
302
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
2500
Number of poles
3
Rated operating voltage
-
-
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP30
Número de contatos auxiliares como contato de comutação
0
Number of switches
0
Interlockable
-
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
Push button
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
65
Colour control element
Other
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
-
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
2500
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
2500
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Long Description
SACE EMAX C.BREAKER SWITCH-DISCONNECTOR E3H/VF-MS 2500A 1000V CA UL THREE-POLE FIXED WITH TERMINALES REAR HORIZONTAL NEW SPEC.VERS.IEC/UL FOR VARIABLE FREQUENCY 1...200HZ
