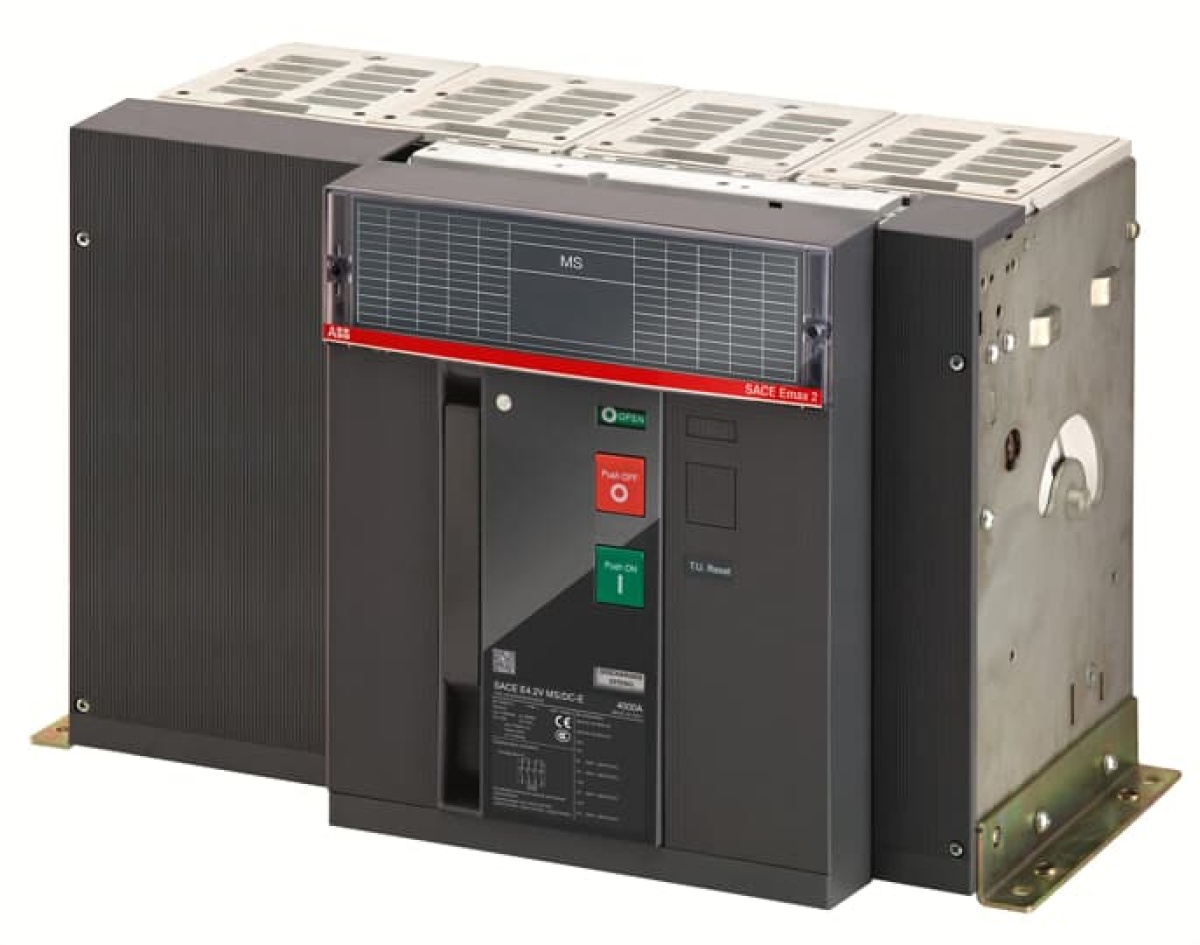

Emax 2 switch-disconnector E4.2S MS/DC-E 1600A 1500V IEC four poles fixed without terminals
Cutting and Protection Devices
E4.2S MSDC-E 1600A 1500V 4p F
Nortécnica Ref:
EAN:
8056221074827
Description
Technical Information
Attributes
Largura
510
Altura
371
Profundidade
270
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1600
Número de polos
4
Rated operating voltage
1500
1500
Conditioned rated short-circuit current Iq
-
Largura em número de módulos
-
Degree of protection IP, front side
IP30
Número de contatos auxiliares como contato de comutação
0
Number of switches
0
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
Push button
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
-
Colour control element
Other
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
1500
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
1600
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
1600
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
Emax 2 switch-disconnector E4.2S MS/DC-E 1600A 1500V IEC four poles fixed without terminals
