MOVING PART FOR C.BREAKER SACE EMAX2 E6.2H 6300 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 6300 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Cutting and Protection Devices

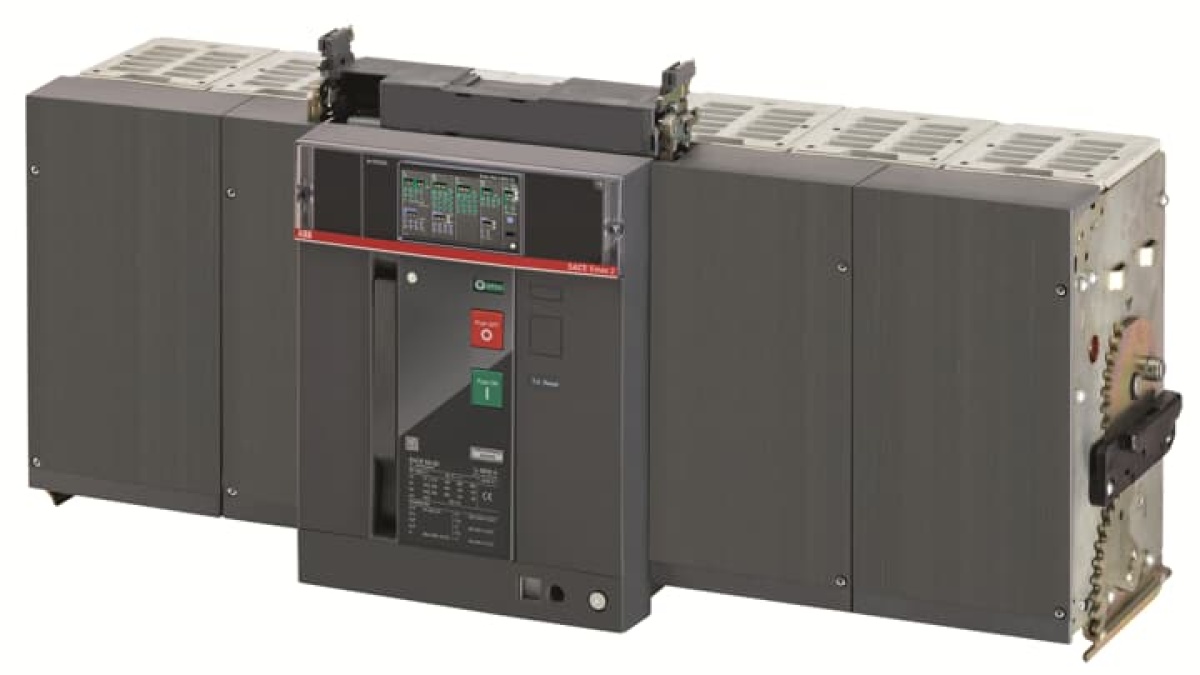

E6.2H 6300 Ekip Dip LSI 4p WMP
Nortécnica Ref:
EAN:
8015644771225
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
6300
With integrated under voltage release
No
Number of poles
4
Overload release current setting
2520.0
6300
Número de contatos auxiliares como contato de comutação
4
Rated voltage
690
690
Potência dissipada
1550
Degree of protection IP
IP30
Position of connection for main current circuit
Connection at separate chassis part
Motor drive integrated
No
Type of electrical connection of main circuit
Connection at separate chassis part
Type of control element
Push button
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
100
Adjustment range short-term delayed short-circuit release
3780.0
63000
Adjustment range undelayed short-circuit release
9450.0
94500
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device slide-in technique (withdrawable)
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
ABB
Long Description
MOVING PART FOR C.BREAKER SACE EMAX2 E6.2H 6300 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 6300 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
