The EH04 are auxiliary contact blocks which can be used in combination with all the new ESB..N and EN..N installation contactors. These devices are available in 2 different contact configurations and no tool is needed for their assembling.
Cutting and Protection Devices

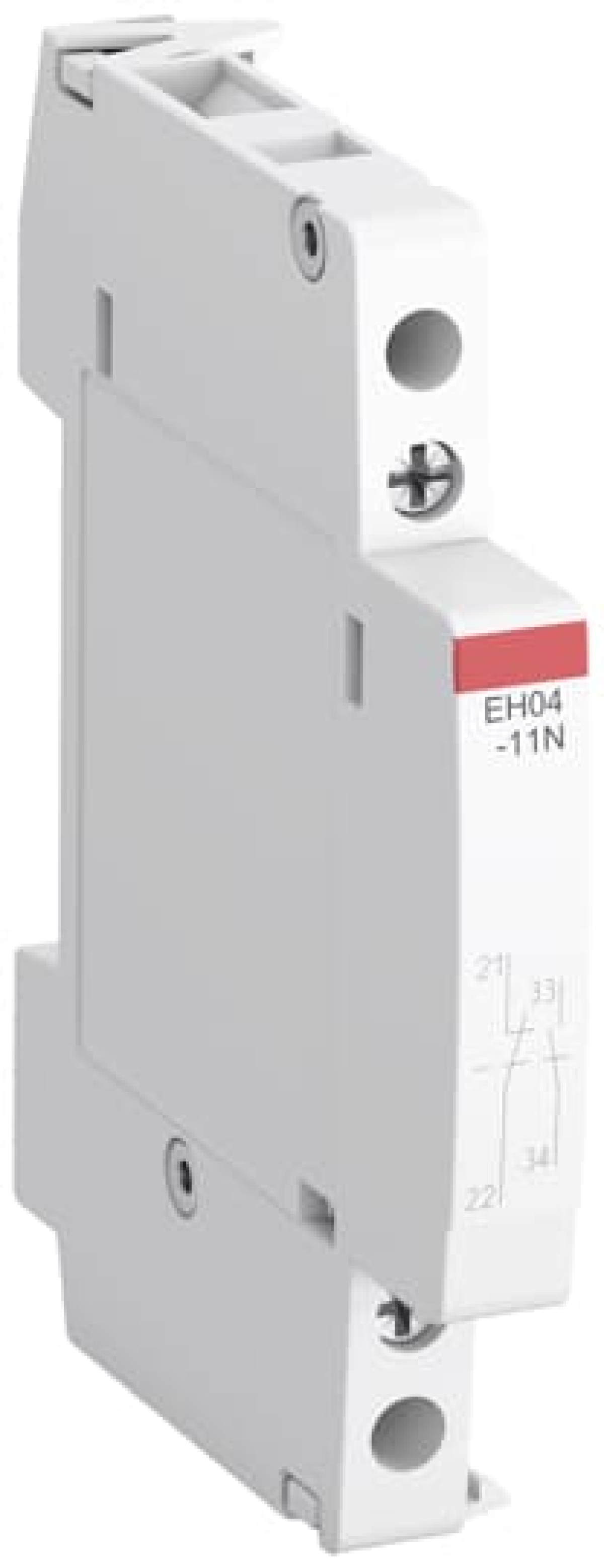

EH04-11N Auxiliary Contact - 0 NO - 0 NC - Auxiliary Circuit 50 Hz
Nortécnica Ref:
271SAE901901R1011
EAN:
4013614527616
Description
Technical Information
Attributes
Mounting method
Side mounting
Model
Clip-on
Lamp holder
None
Corrente nominal de operação Ie em AC-15, 230 V
4
Type of electric connection
Screw connection
Number of fault-signal switches
0
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Brands
ABB
Descrição Longa
The EH04 are auxiliary contact blocks which can be used in combination with all the new ESB..N and EN..N installation contactors.
These devices are available in 2 different contact configurations and no tool is needed for their assembling.
