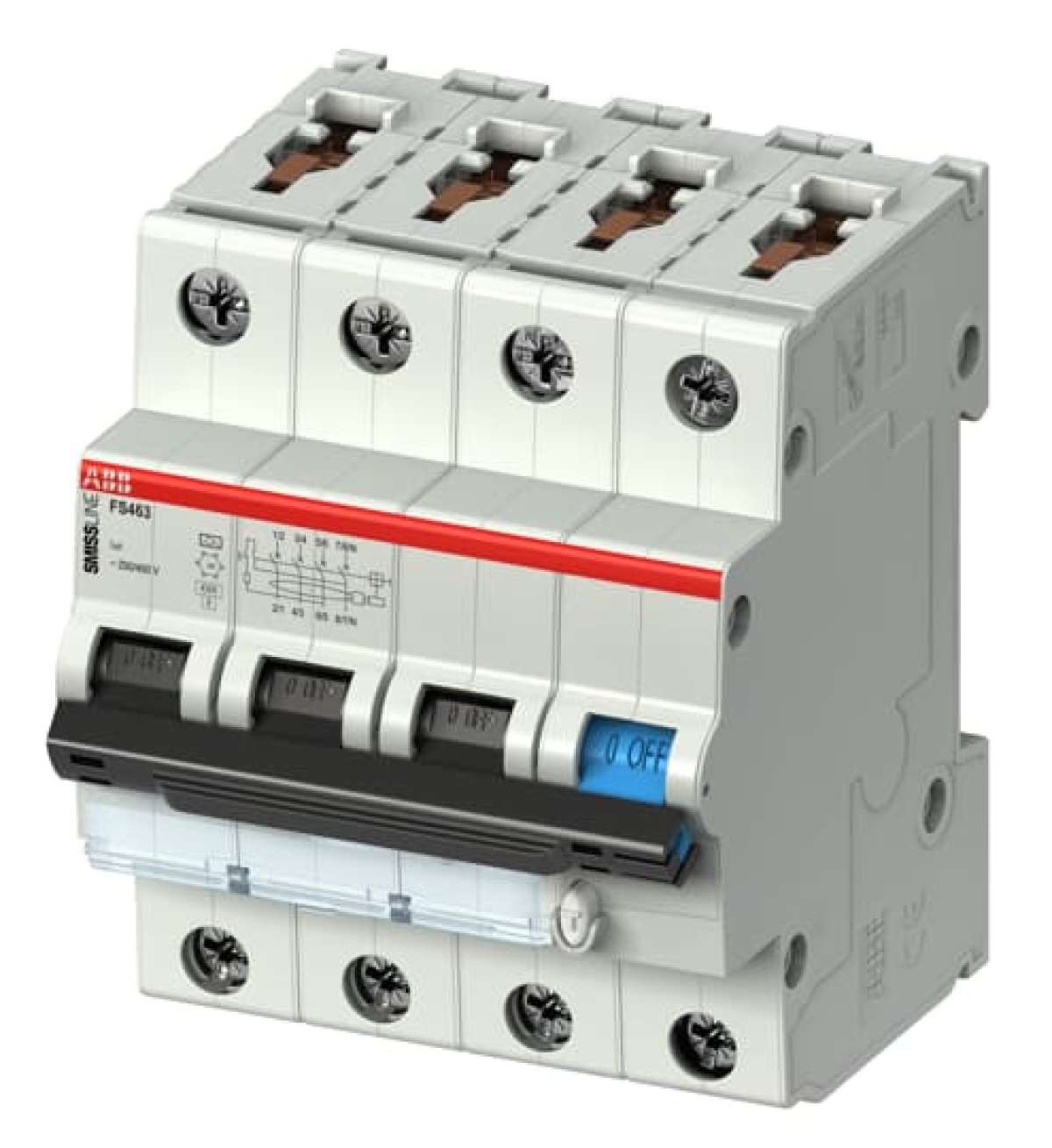

Residual current operated circuit breaker with overcurrent protection 3LN Type F for DIN
Cutting and Protection Devices
FS463MK-C160.03
Nortécnica Ref:
EAN:
7612271470531
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
91
Rated current
16
EF000228
415
Release characteristic
C
Rated insulation voltage Ui
500
Rated fault current
0.03
Leakage current type
F
Surge current capacity
3
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
2
Power loss
-
Frequency
50/60 Hz
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
Yes
Rated short-circuit breaking capacity according to IEC 60947-2
25
Connectable conductor cross section solid-core
-
-
Connectable conductor cross section multi-wired
0.75
25
With interlocking device
Yes
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Number of poles total
4
Anti-nuisance tripping version
-
Rated impulse withstand voltage Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
10
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
10
Brands
ABB
Descrição Longa
Residual current operated circuit breaker with overcurrent protection 3LN Type F for DIN
