System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Cutting and Protection Devices

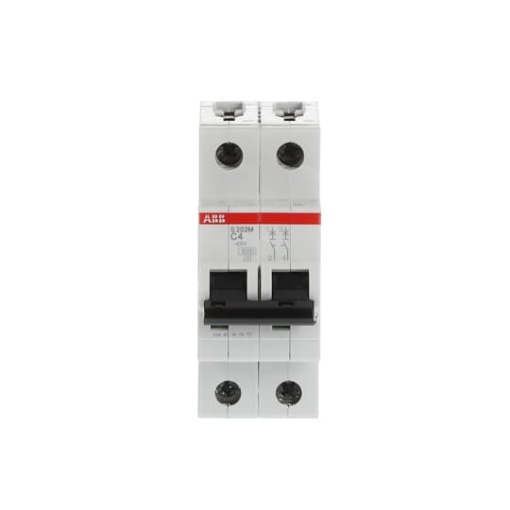

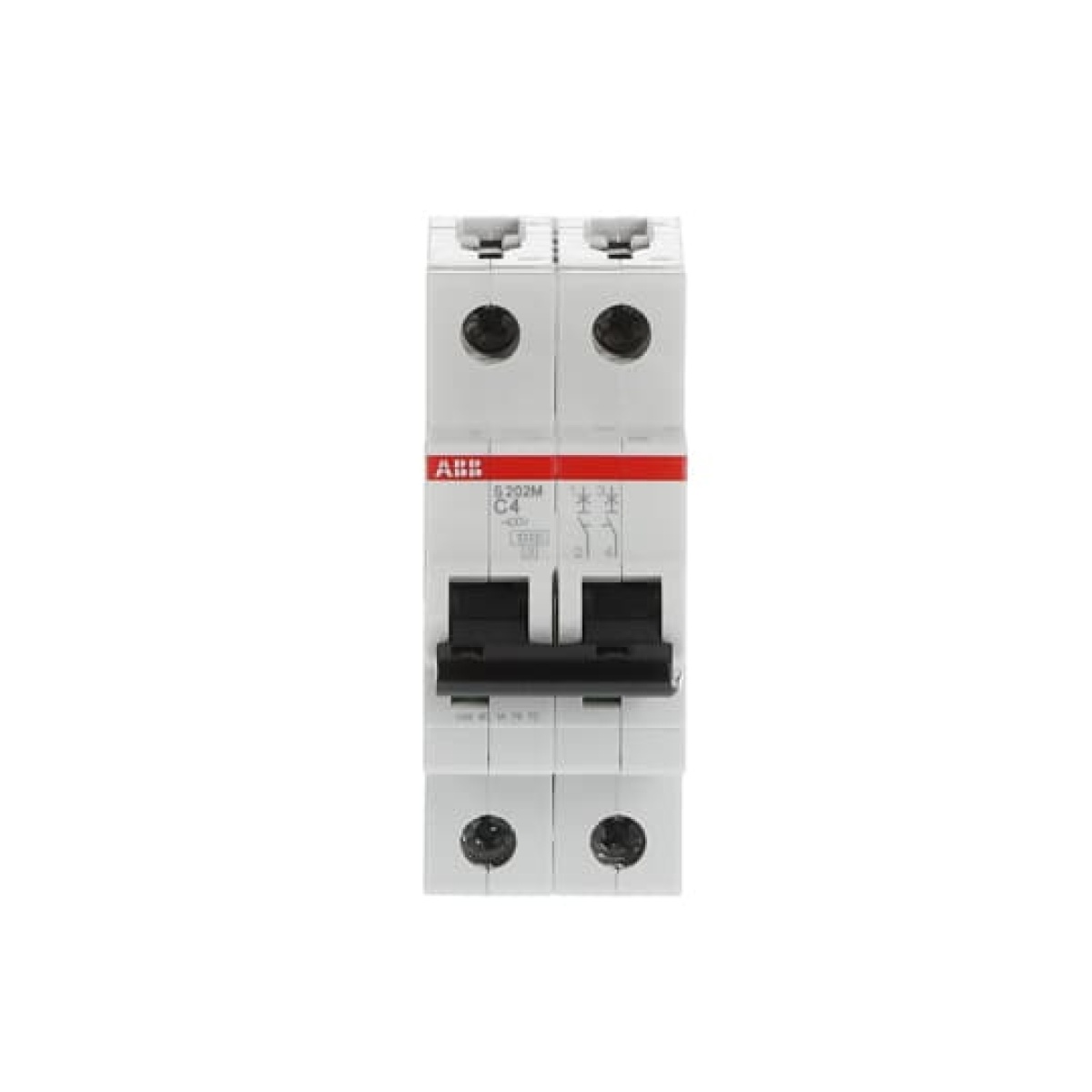

Miniature Circuit Breaker - S200M - 2P - 4 A - C - AC 10 kA
Nortécnica Ref:
272CDS272001R0044
EAN:
4016779550253
Description
Technical Information
Attributes
Voltage type
AC/DC
Profundidade incorporada
69
Corrente nominal especificada
4
Tensão especificada de funcionamento
400
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
440
Classe de limitação de energia I²t
3
Categoria de sobretensão
3
Grau de poluição
3
Largura em número de módulos
2.0
Explosion-proof
No
Potência dissipada
3.6
Degree of protection IP
IP20
Número de polos protegidos
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
2
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
-
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
10
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
25
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
15
Tensão estipulada suportável ao choque Uimp
4
Brands
ABB
Descrição Longa
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
