The miniature circuit breaker S 200 M UC extends the established ABB System pro M compact® product range with an MCB for DC and AC applications. The S 200 M UC impresses with its performance range and the accordingly large amount of approvals. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application and its approval and compliance in accordance with all major international and local standards make it truly unique. All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution.
Cutting and Protection Devices

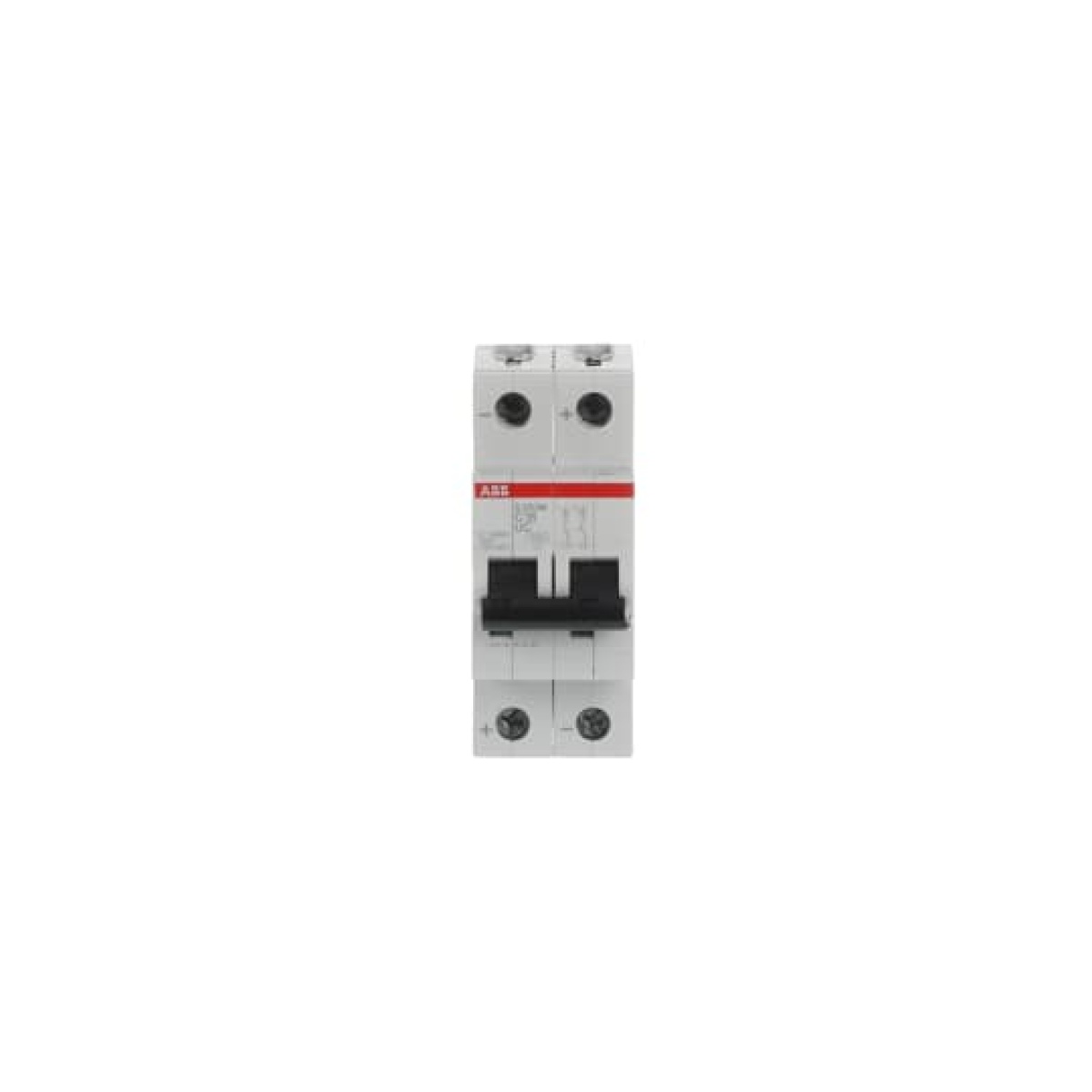

Miniature Circuit Breaker - S200MUC - 2P - 16 A - C - AC 10 kA
Nortécnica Ref:
272CDS272061R0164
EAN:
4013614433016
Description
Technical Information
Attributes
Voltage type
AC/DC
Profundidade incorporada
69
Corrente nominal especificada
16
Tensão especificada de funcionamento
400
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
440
Classe de limitação de energia I²t
3
Categoria de sobretensão
3
Grau de poluição
3
Largura em número de módulos
2.0
Explosion-proof
No
Potência dissipada
4.02
Degree of protection IP
IP20
Número de polos protegidos
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
2
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
10
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
10
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
15
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
15
Tensão estipulada suportável ao choque Uimp
4
Brands
ABB
Descrição Longa
The miniature circuit breaker S 200 M UC extends the established
ABB System pro M compact® product range with an MCB for DC and AC applications. The S 200 M UC impresses with its performance range and the accordingly large amount of approvals. Its high inbuilt short circuit breaking capacity across the
entire model line, its flexible AC and DC application and its approval and compliance in accordance with all major international and local standards make it truly unique.
All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution.
