The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Cutting and Protection Devices

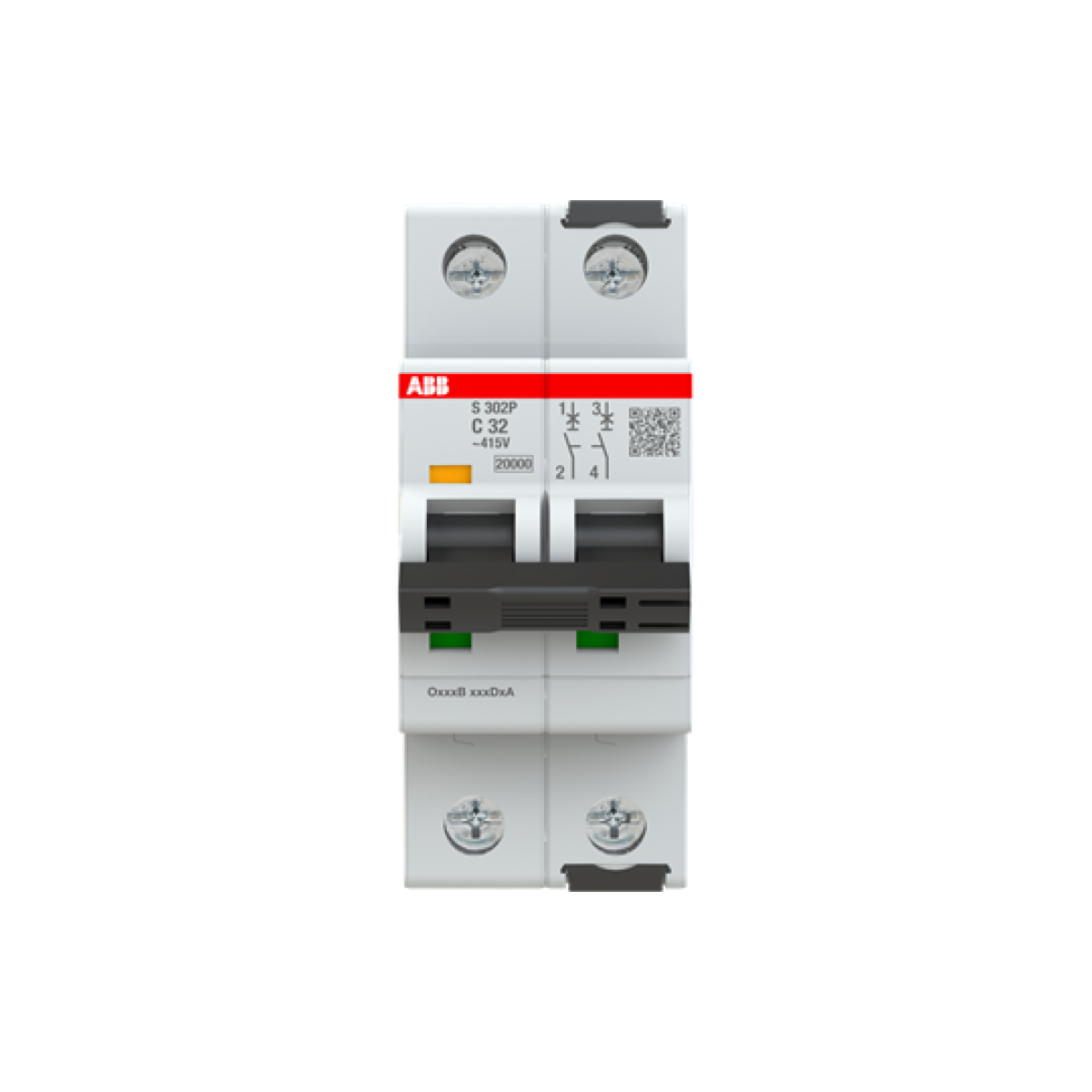

Miniature Circuit Breaker - S300P - 2P - 32 A - C - AC 20 kA
Nortécnica Ref:
272CDS382001R0324
EAN:
4016779078672
Description
Technical Information
Attributes
Voltage type
AC/DC
Profundidade incorporada
69
Corrente nominal especificada
32
Tensão especificada de funcionamento
415
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
500
Classe de limitação de energia I²t
-
Categoria de sobretensão
4
Grau de poluição
3
Largura em número de módulos
2.0
Explosion-proof
No
Potência dissipada
5.8
Degree of protection IP
IP20
Número de polos protegidos
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-40
70
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
2
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
20
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
-
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
-
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
25
Tensão estipulada suportável ao choque Uimp
6
Brands
ABB
Descrição Longa
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
