SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.
Cutting and Protection Devices

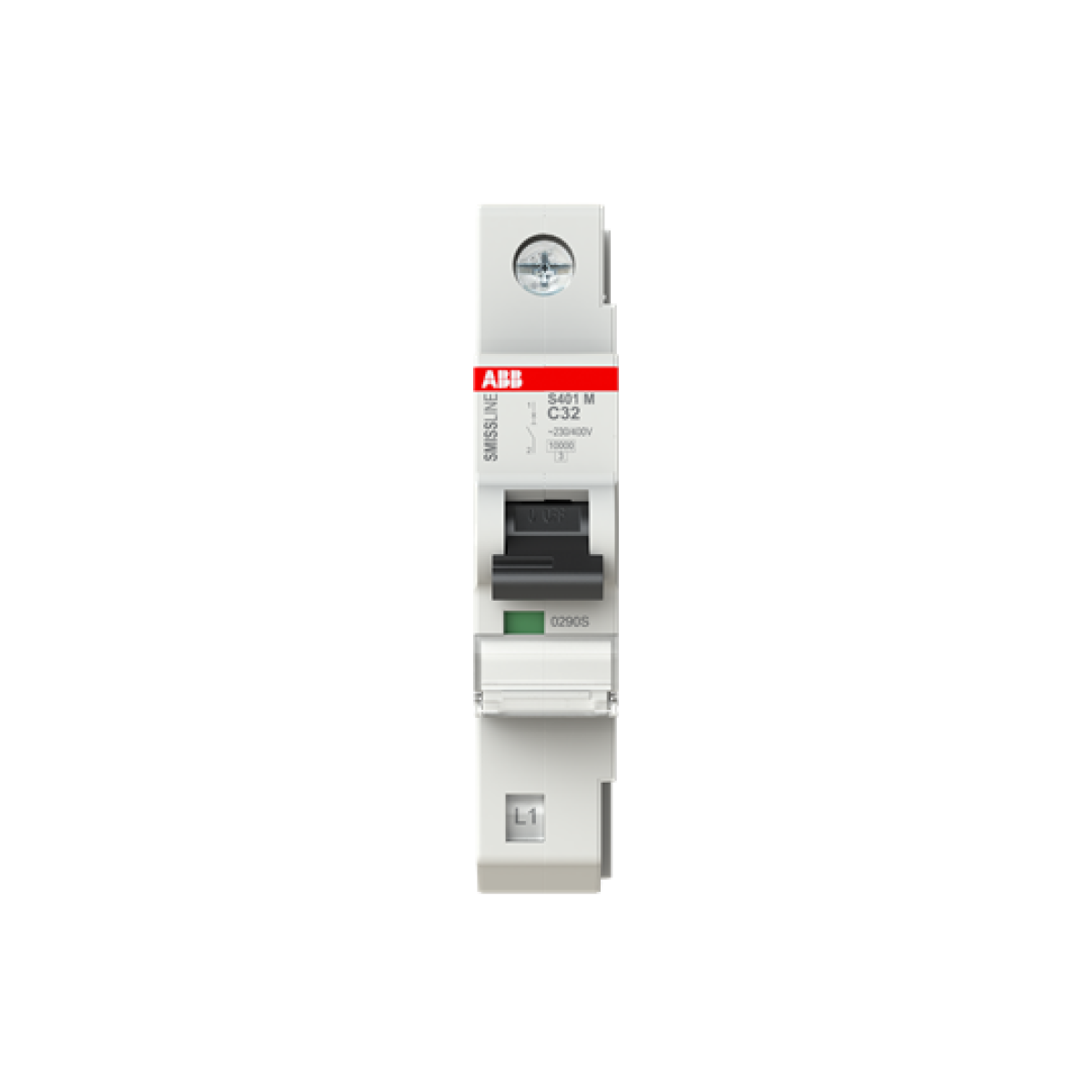

Miniature Circuit Breaker - S400 - 1P - 32 A - C - 230 V 10 kA
Nortécnica Ref:
27S401MC32
EAN:
7612270101450
Description
Technical Information
Attributes
Voltage type
AC
Profundidade incorporada
75
Corrente nominal especificada
32
Tensão especificada de funcionamento
240
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
440
Classe de limitação de energia I²t
3
Categoria de sobretensão
3
Grau de poluição
3
Largura em número de módulos
1
Explosion-proof
No
Potência dissipada
3.2
Degree of protection IP
IP20
Número de polos protegidos
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
1
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
10
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
10
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
15
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
15
Tensão estipulada suportável ao choque Uimp
4
Brands
ABB
Descrição Longa
SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.
