The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the right
Cutting and Protection Devices

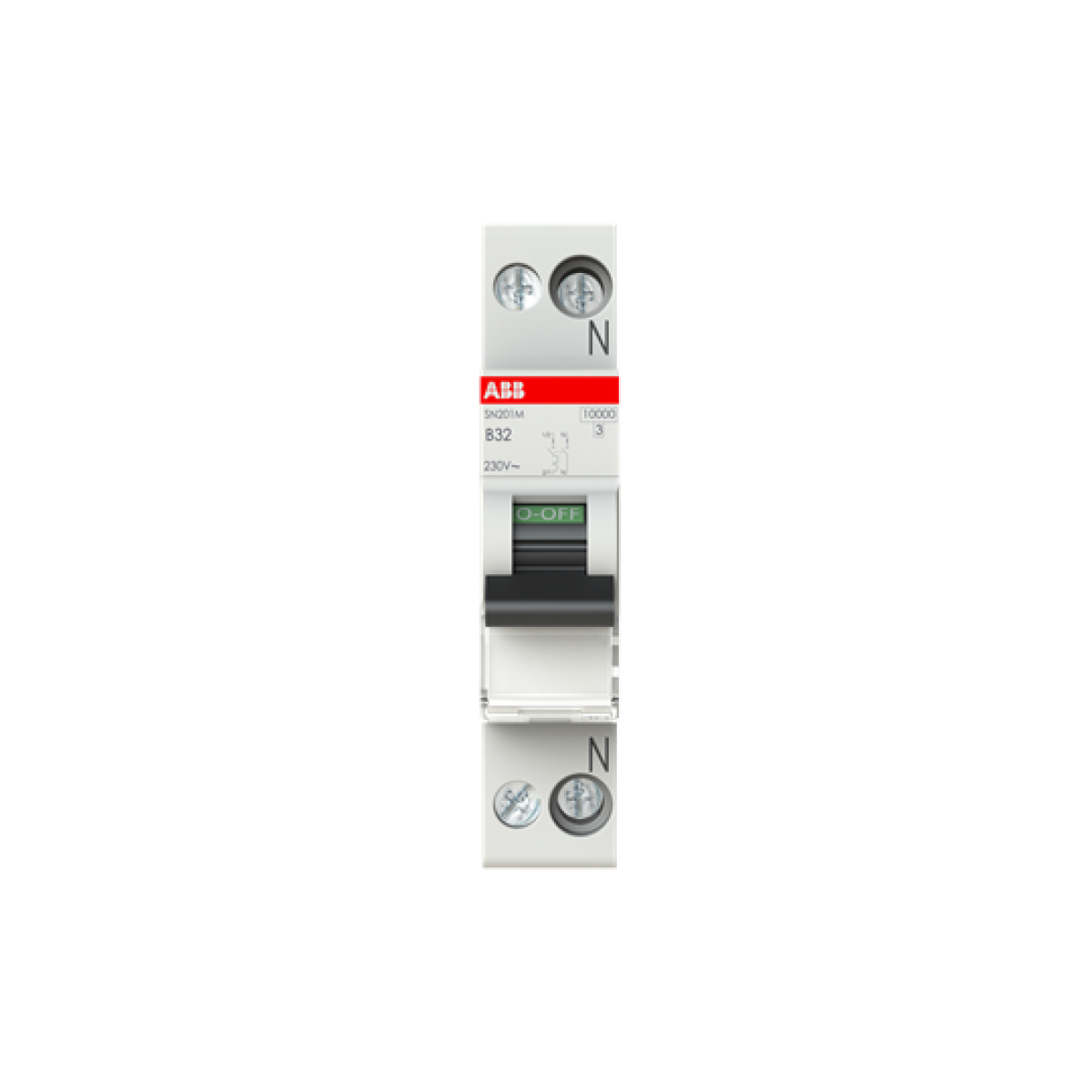

Miniature circuit breaker - SN201M - 1PN - 32 A - B - 230 V 10 kA
Nortécnica Ref:
EAN:
8012542093657
Description
Technical Information
Attributes
Voltage type
AC
Profundidade incorporada
69
Corrente nominal especificada
32
Tensão especificada de funcionamento
230
Frequency
50
60
Release characteristic
B
Tensão nominal de isolamento Ui
500
Classe de limitação de energia I²t
3
Categoria de sobretensão
3
Grau de poluição
2
Largura em número de módulos
1
Explosion-proof
No
Potência dissipada
6.7
Degree of protection IP
IP20
Número de polos protegidos
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
1
16
Connectable conductor cross section multi-wired
1
10
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
2
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
-
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
10
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
10
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
-
Tensão estipulada suportável ao choque Uimp
4
Brands
ABB
Descrição Longa
The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the right
