Manual motor starters magnetic only are electromechanical protection devices for the main circuit, complying with the latest railway rolling stock standards and allowing installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are used mainly to switch motors manually ON/OFF and protect them fuse-less against short-circuit. Fuse-less protection with a manual motor starter saves costs, space and ensures a quick reaction under short-circuit condition, by switching off the motor within milliseconds. Fuse-less starter combinations are setup together with contactors and overload relays. designed in accordance to the applicable parts of IEC 60077 standard – shocks and vibration withstand conforming to IEC 61373 (category 1, class B) – usable according to European fire and smoke safety standard EN 45545-2
Cutting and Protection Devices

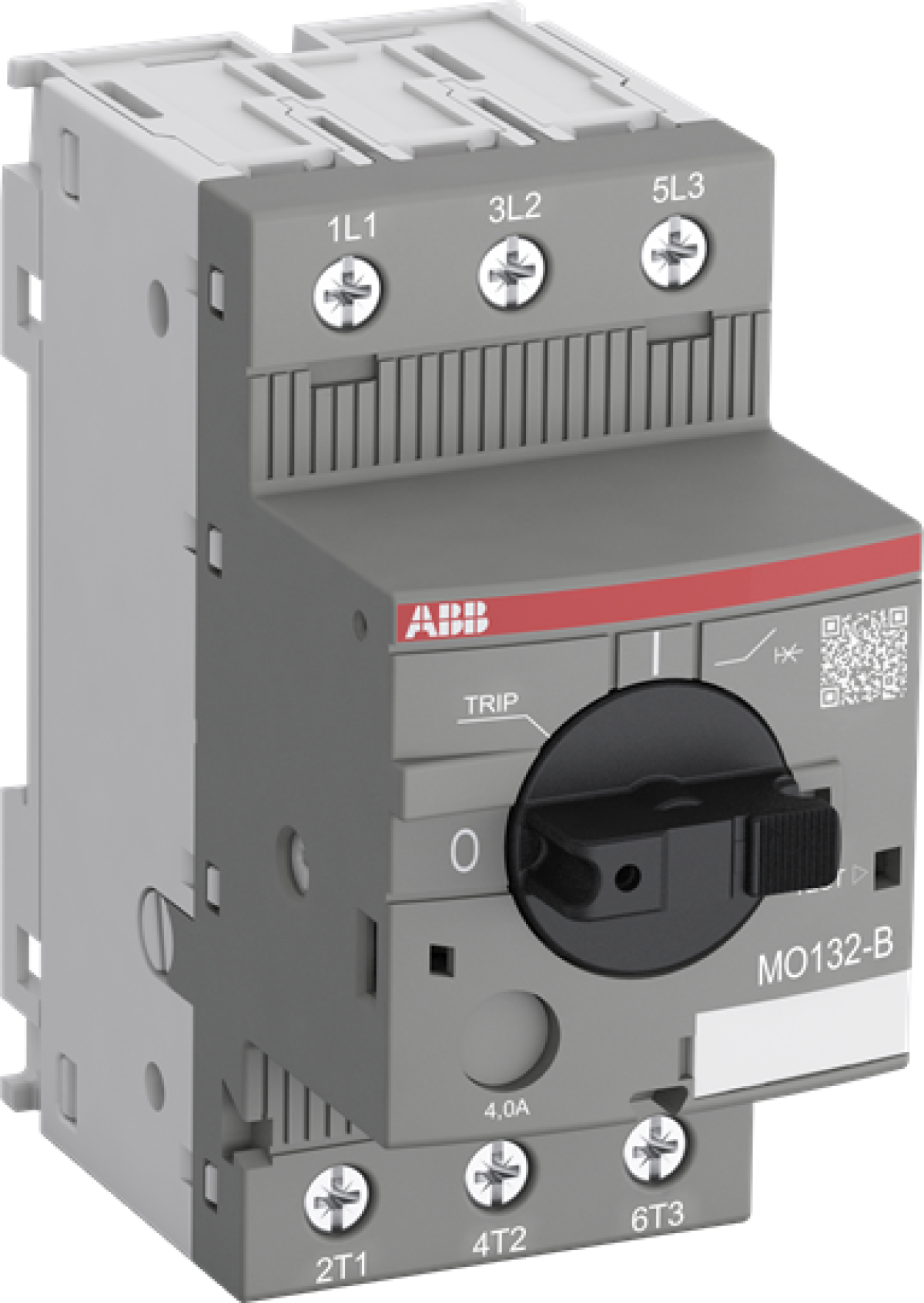

MO132-4.0B Manual Motor Starter Magnetic Only 4 A
Nortécnica Ref:
EAN:
4013614521553
Description
Technical Information
Attributes
Largura
45
Altura
90
Profundidade
86.75
Rated operation power at AC-3, 400 V
1.5
With integrated auxiliary switch
No
Corrente permanente nominal Iu
4
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
4
4
Potência dissipada
2.1
Degree of protection IP
IP20
With thermal overload protection
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Magnetic
Rated operation power at AC-3, 230 V
1.5
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
50
50
Phase failure sensitive
No
Device construction
Complete device in housing
Brands
ABB
Descrição Longa
Manual motor starters magnetic only are electromechanical protection devices for the main circuit, complying with the latest railway rolling stock standards and allowing installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are used mainly to switch motors manually ON/OFF and protect them fuse-less against short-circuit.
Fuse-less protection with a manual motor starter saves costs, space and ensures a quick reaction under short-circuit condition, by switching off the motor within milliseconds. Fuse-less starter combinations are setup together with contactors and overload relays.
designed in accordance to the applicable parts of IEC 60077 standard
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– usable according to European fire and smoke safety standard EN 45545-2
