The MO325-0.4 manual motor starter magnetic only is a 54 mm width device with a rated operational current of Ie = 0.40 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter magnetic only offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC. Further features are the build-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter magnetic only is suitable for three- and single-phase applications. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.
Cutting and Protection Devices

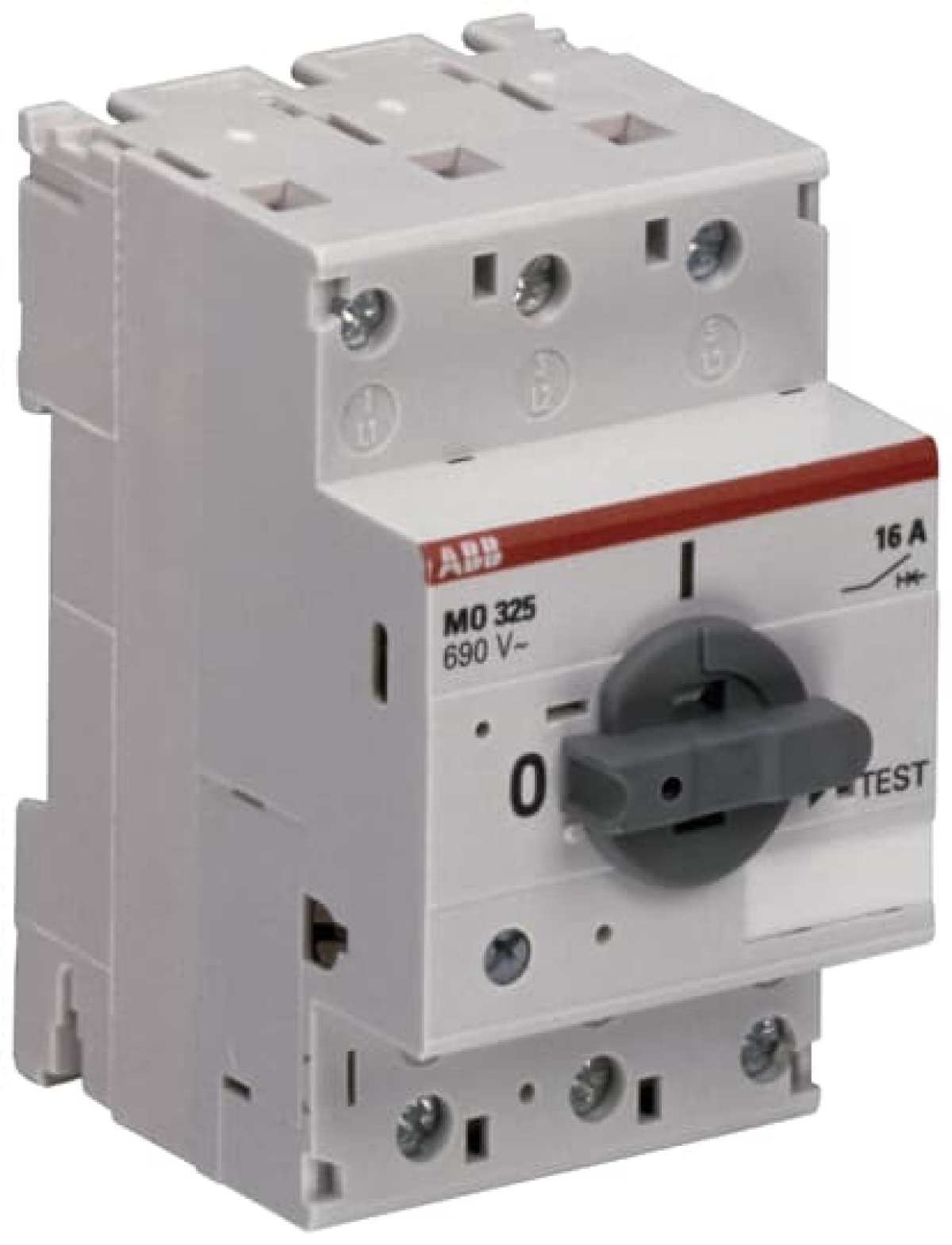

MO325-0.4 Manual Motor Starter Magnetic Only 0.4 A
Nortécnica Ref:
EAN:
4013614301995
Description
Technical Information
Attributes
Width
54
Height
87.5
Depth
75.5
Rated operation power at AC-3, 400 V
0.09
With integrated auxiliary switch
No
Corrente permanente nominal Iu
0.4
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
220
690
Overload release current setting
0.4
0.4
Potência dissipada
3
Degree of protection IP
IP20
With thermal overload protection
No
Type of electrical connection of main circuit
-
Type of control element
Turn button
Switch off technique
Magnetic
Rated operation power at AC-3, 230 V
0.09
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
3.9
3.9
Phase failure sensitive
No
Device construction
Complete device in housing
Brands
ABB
Long Description
The MO325-0.4 manual motor starter magnetic only is a 54 mm width device with a rated operational current of Ie = 0.40 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter magnetic only offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC. Further features are the build-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter magnetic only is suitable for three- and single-phase applications. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.
