Encl. Switch Disconnector, 2-p. 230V AC23 15.2A, 2.6kW. Plastic enclosure. IP67. White Round handle. The plastic enclosed switch disconnector, is well suited for commersial and residential use. There are 3 color alternatives available, red/yellow, dark grey, and white. Typical applications could be fans, pumps, kitchen appliancies etc. The product withstand water and rain, acc. to class IP67, and is well suited for indoor and outdoor us. The plastic is UV protected. Two cable glands are included in the delivery. The terminals are easily available, thanks to the enclosure design and the removable switch. PE terminal included.
Cutting and Protection Devices

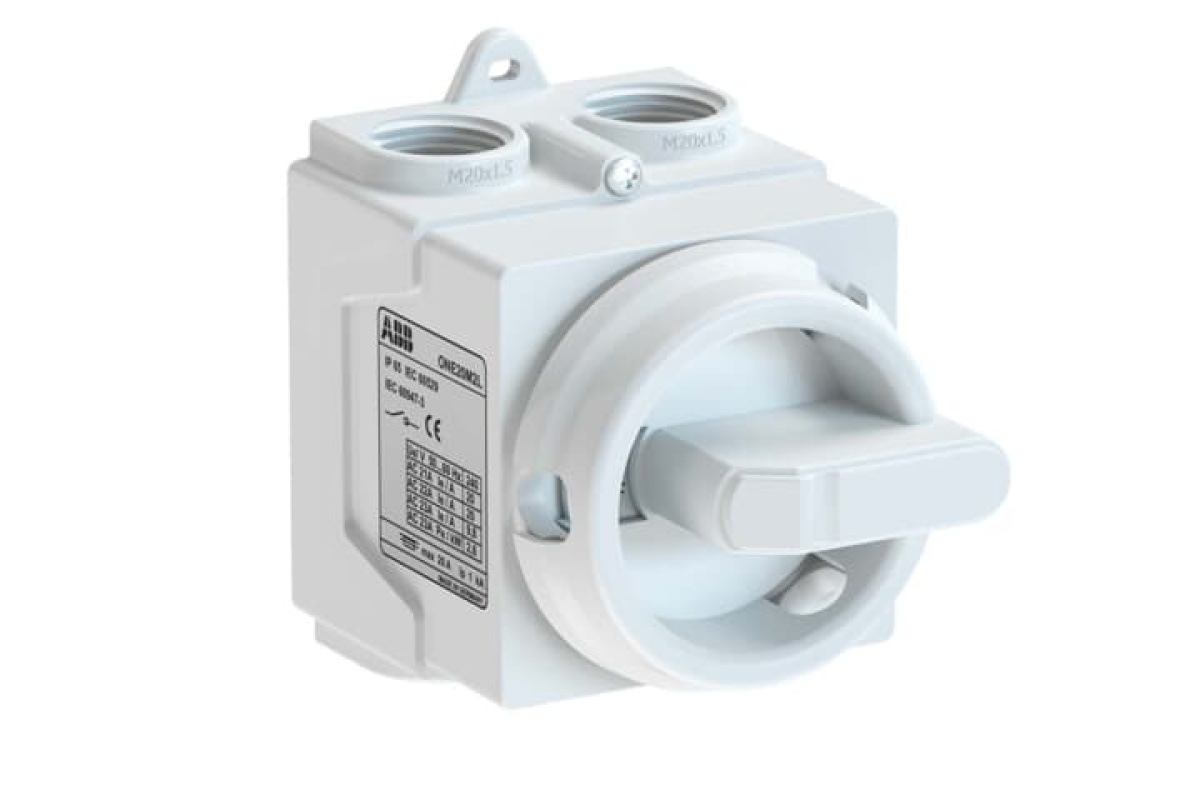

ONE20M2W Enclosed Switch Disconnector
Nortécnica Ref:
EAN:
6417019667560
Description
Technical Information
Attributes
Width
65
Height
92
Depth
84
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
20
Number of poles
2
Rated operating voltage
690
690
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP67
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
-
Version as emergency stop installation
No
Type of control element
Turn button
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
-
Colour control element
White
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
-
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
Encl. Switch Disconnector, 2-p. 230V AC23 15.2A, 2.6kW. Plastic enclosure. IP67. White Round handle. The plastic enclosed switch disconnector, is well suited for commersial and residential use. There are 3 color alternatives available, red/yellow, dark grey, and white. Typical applications could be fans, pumps, kitchen appliancies etc. The product withstand water and rain, acc. to class IP67, and is well suited for indoor and outdoor us. The plastic is UV protected. Two cable glands are included in the delivery. The terminals are easily available, thanks to the enclosure design and the removable switch. PE terminal included.
