OT Plus Switch disconnector series. 4-pole front operated base mounted DIN-rail mountable switch disconnector suitable for panels with 45mm DIN cut-out. The switch disconnector has inbuilt screw terminals and comes with direct-mounted knob handle that can be padlocked and shaft can be mounted for external operation.
Cutting and Protection Devices

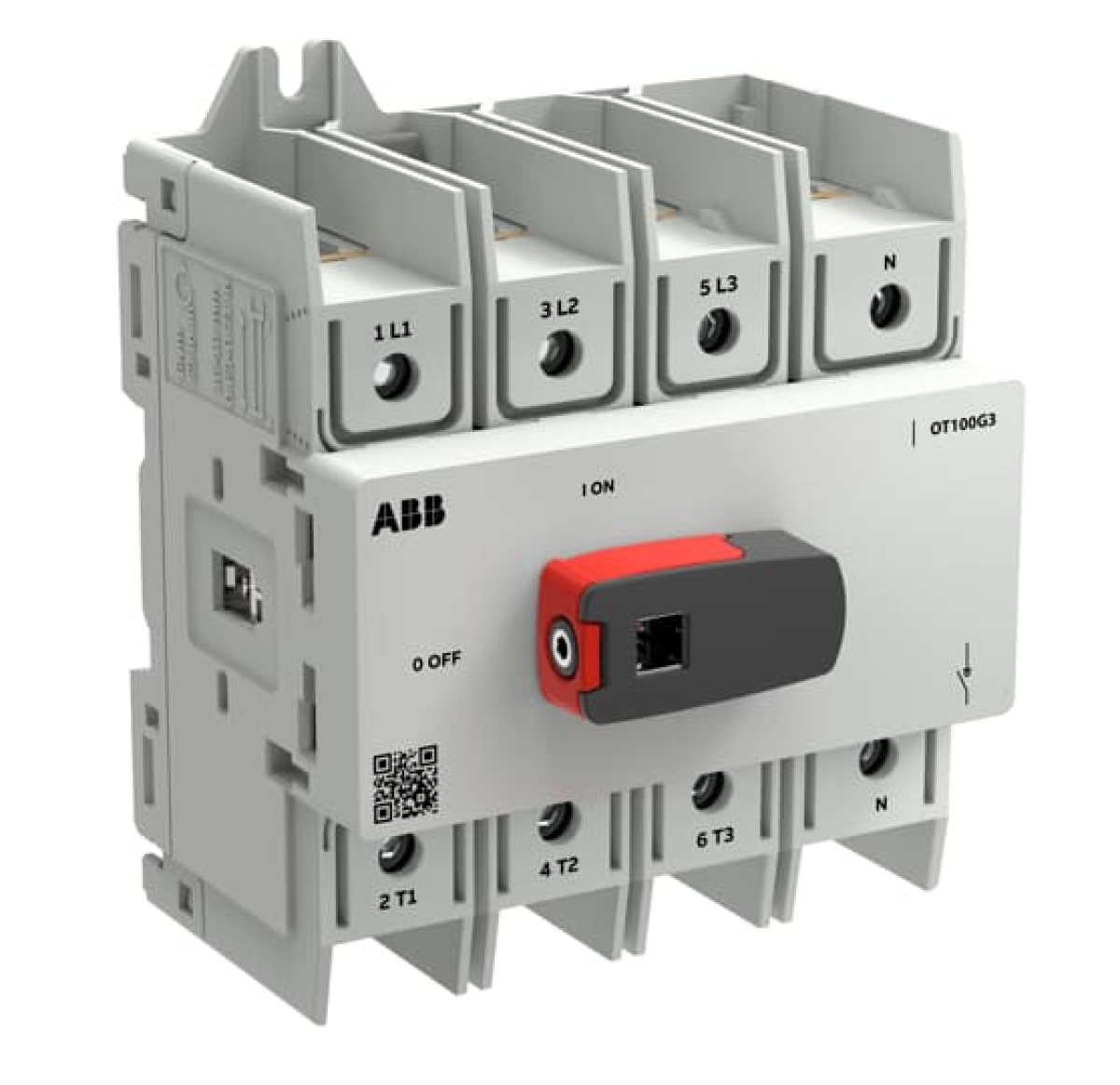

OT100G3-4BSN232 SWITCH DISCONNECTOR
Nortécnica Ref:
EAN:
6417019931692
Description
Technical Information
Attributes
Largura
95.5
Altura
123
Profundidade
74.6
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
100
Número de polos
4
Rated operating voltage
800
800
Corrente condicional nominal de curto-circuito Iq
50
Largura em número de módulos
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Other
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
2.5
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
-
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
OT Plus Switch disconnector series. 4-pole front operated base mounted DIN-rail mountable switch disconnector suitable for panels with 45mm DIN cut-out. The switch disconnector has inbuilt screw terminals and comes with direct-mounted knob handle that can be padlocked and shaft can be mounted for external operation.
