125A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
Cutting and Protection Devices

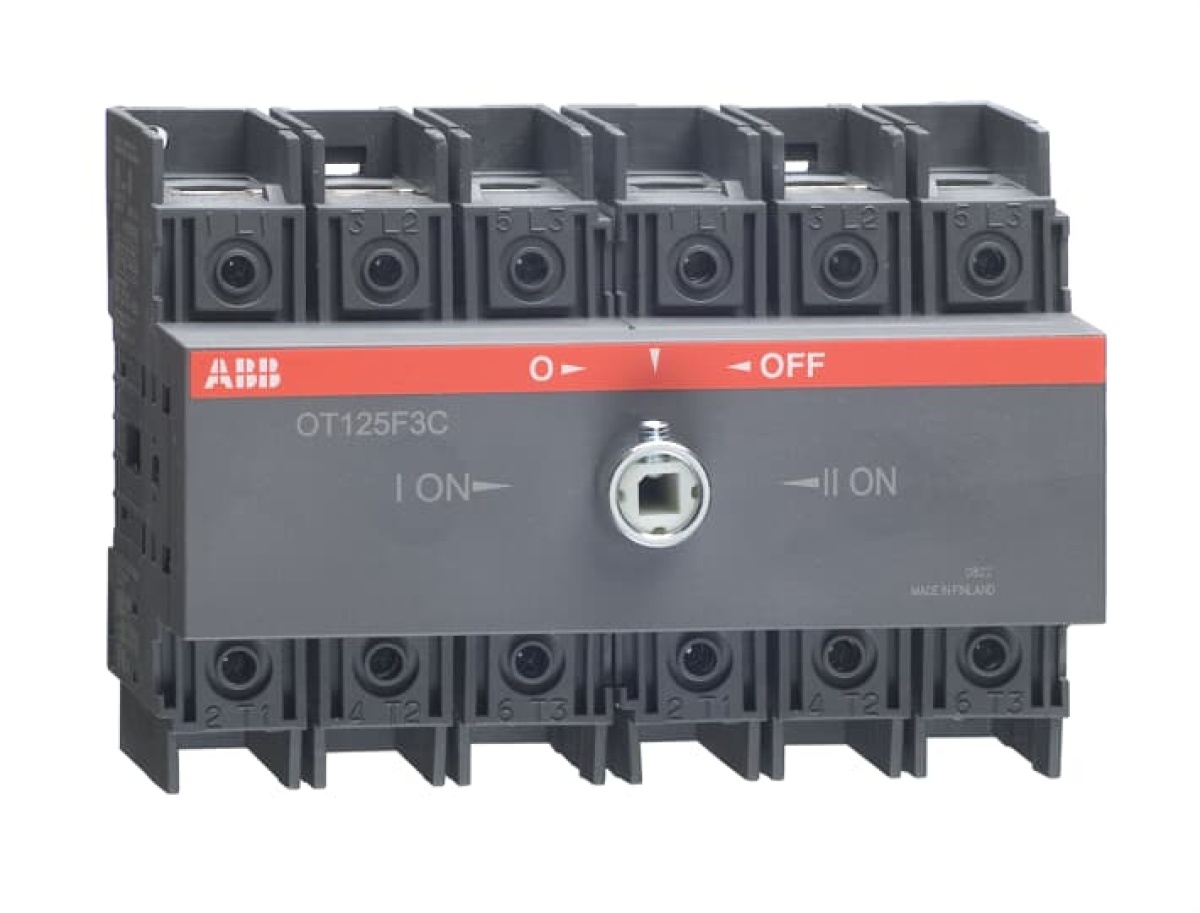

OT125F3C CHANGE-OVER SWITCH
Nortécnica Ref:
2705105037R1001
EAN:
6417019391670
Description
Technical Information
Attributes
Width
140
Height
100
Depth
86
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
-
Number of poles
3
Rated operating voltage
750
750
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Other
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
45
Corrente nominal suportável lcw atual
2.5
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
750
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device plug-in technique
Rated permanent current at AC-21, 400 V
125
Switching power at 400 V
45
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
90
Degree of protection NEMA
1
With pre-assembled cabling
-
Brands
ABB
Long Description
125A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
