OT Plus Switch disconnector series. 3-pole front operated door mounted switch disconnector. The switch disconnector has inbuilt screw terminals. Handle is not included.
Cutting and Protection Devices

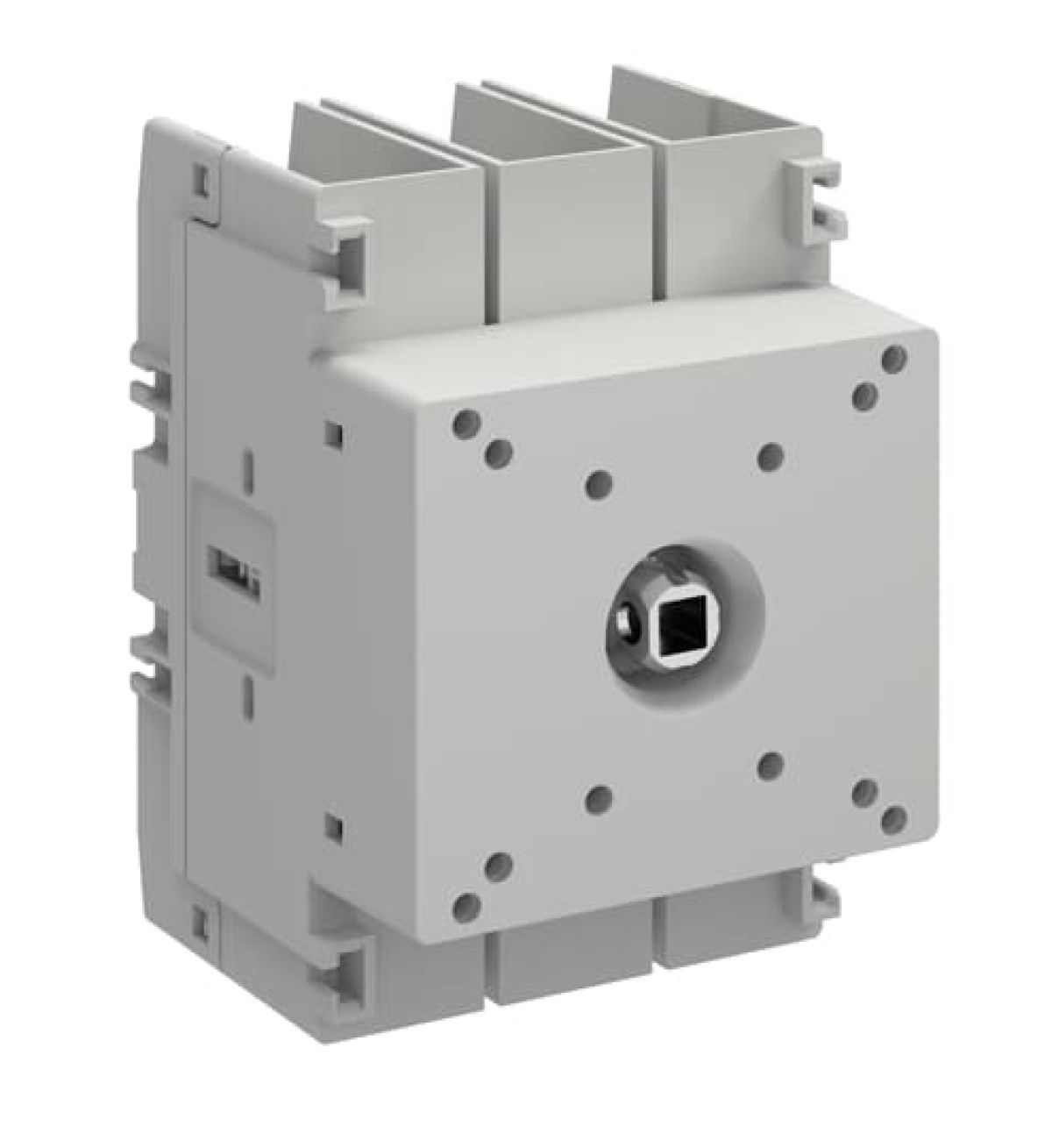

OT160G3-3DS SWITCH DISCONNECTOR
Nortécnica Ref:
EAN:
6417019925653
Description
Technical Information
Attributes
Largura
70
Altura
102.5
Profundidade
70
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
160
Número de polos
3
Rated operating voltage
800
800
Conditioned rated short-circuit current Iq
50
Width in number of modular spacings
-
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Other
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
2.5
Colour control element
-
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
-
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
800
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
OT Plus Switch disconnector series. 3-pole front operated door mounted switch disconnector. The switch disconnector has inbuilt screw terminals. Handle is not included.
