2-pole, front operated, base mounted switch-diconnector with black direct mount handle, terminal bolt kit included
Cutting and Protection Devices

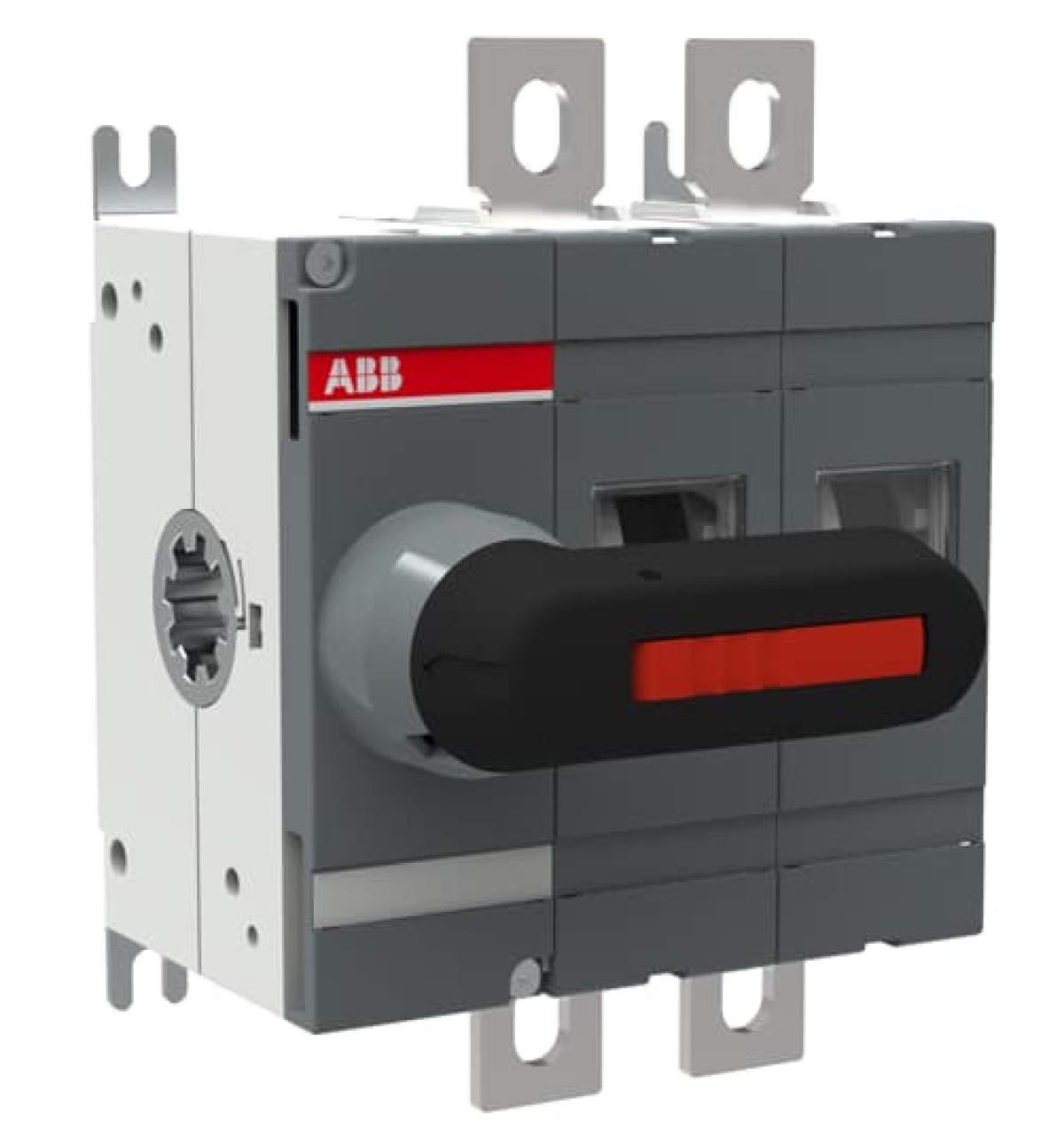

OT200E02K SWITCH-DISCONNECTOR
Nortécnica Ref:
EAN:
6417019254708
Description
Technical Information
Attributes
Largura
110.5
Altura
150
Profundidade
107
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
200
Número de polos
2
Rated operating voltage
1000
1000
Conditioned rated short-circuit current Iq
-
Largura em número de módulos
-
Degree of protection IP, front side
IP00
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
110
Rated short-time withstand current lcw
8
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
1000
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
200
Switching power at 400 V
110
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
200
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
2-pole, front operated, base mounted switch-diconnector with black direct mount handle, terminal bolt kit included
