Safety switch, 3-p. 415V AC23 200A, 110kW. Mounted auxiliary contact: 2NO1NC. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. PE terminals included.
Cutting and Protection Devices

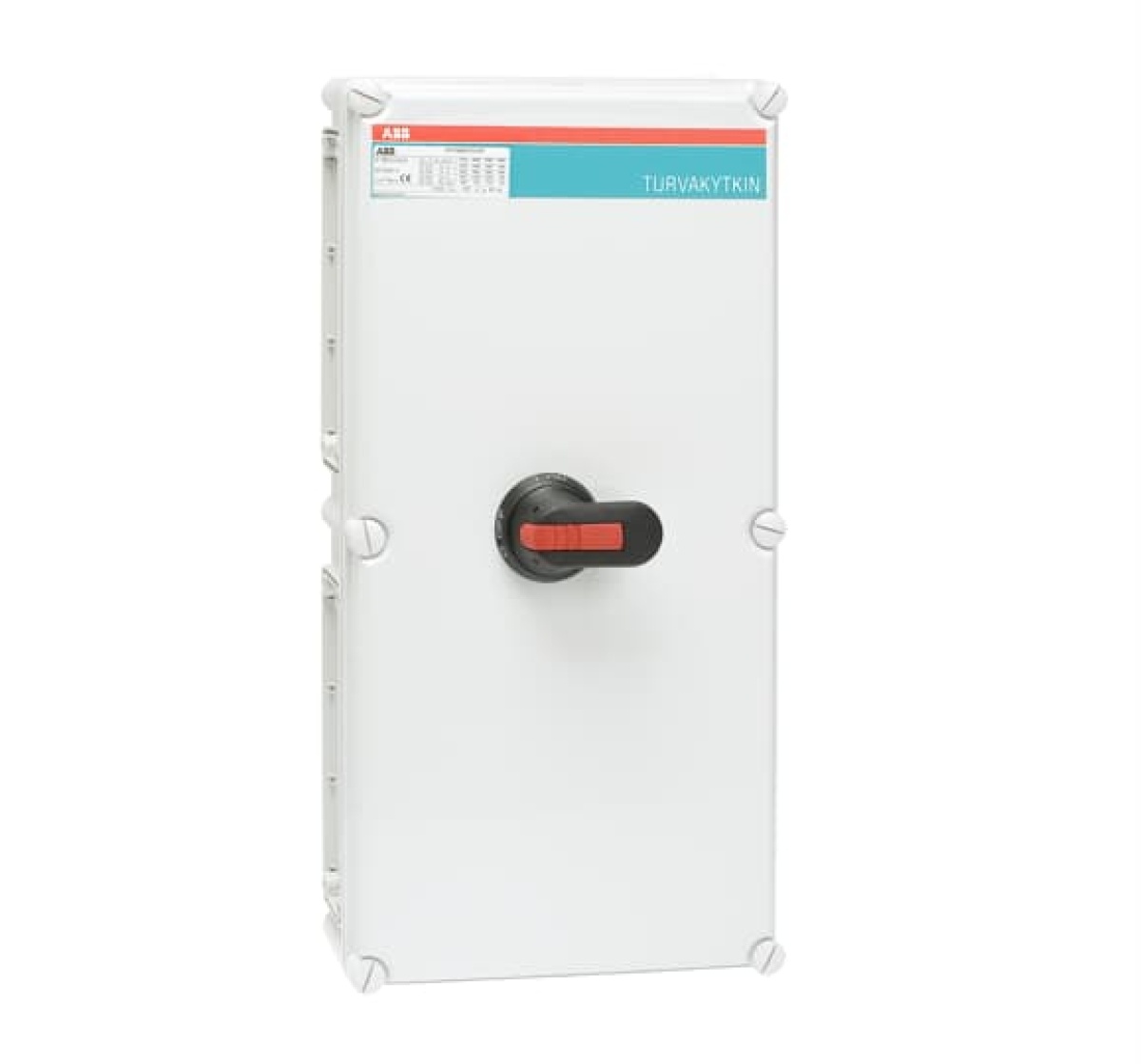

OT200KFCC3T Safety switch
Nortécnica Ref:
EAN:
6417019115931
Description
Technical Information
Attributes
Largura
280
Altura
560
Profundidade
130
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
2
Número de contatos auxiliares como contato normalmente fechado
1
Corrente permanente nominal Iu
200
Número de polos
3
Rated operating voltage
1000
1000
Corrente condicional nominal de curto-circuito Iq
-
Largura em número de módulos
-
Degree of protection IP, front side
IP65
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
-
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
110
Corrente nominal suportável lcw atual
8
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
1000
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
110
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
200
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
Safety switch, 3-p. 415V AC23 200A, 110kW. Mounted auxiliary contact: 2NO1NC. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. PE terminals included.
