2-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
Cutting and Protection Devices

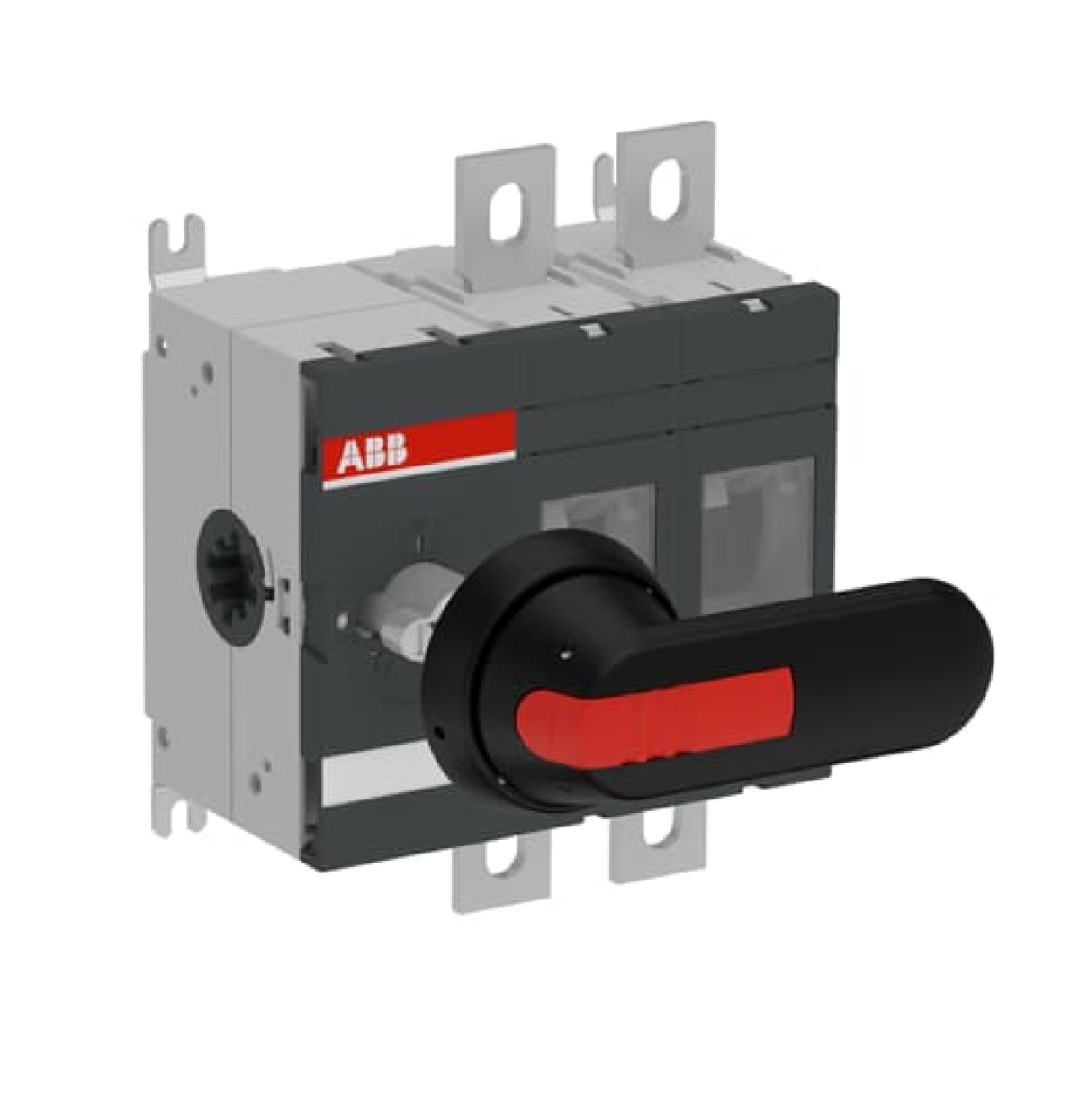

OT315E02P SWITCH-DISCONNECTOR
Nortécnica Ref:
EAN:
6417019335667
Description
Technical Information
Attributes
Largura
147
Altura
185
Profundidade
107
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
315
Número de polos
2
Rated operating voltage
1000
1000
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP00
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
180
Rated short-time withstand current lcw
15
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
1000
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
315
Switching power at 400 V
180
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
315
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
2-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
