3-pole, side operated, base mounted switch-diconnector with black direct mount handle, terminal bolt kit included
Cutting and Protection Devices

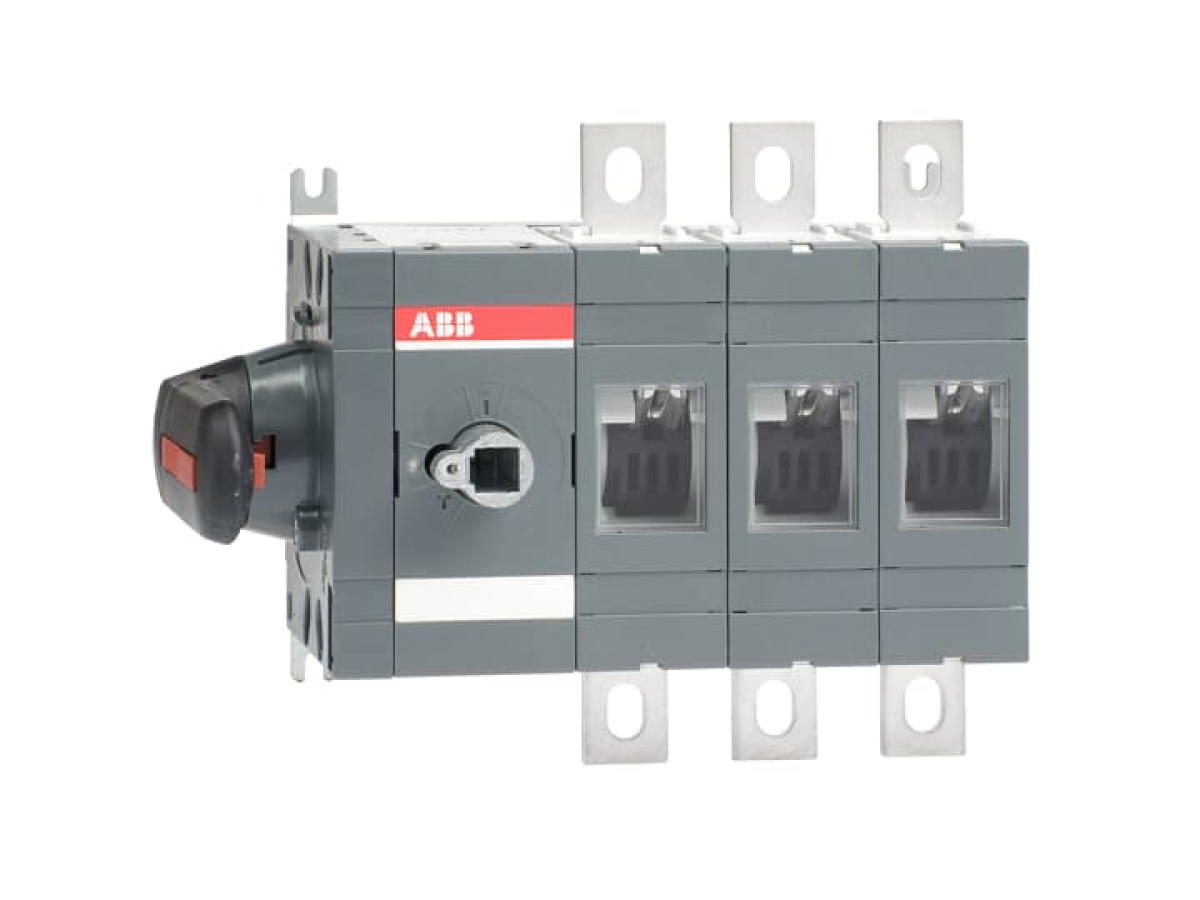

OT315ES03K SWITCH-DISCONNECTOR
Nortécnica Ref:
EAN:
6417019308845
Description
Technical Information
Attributes
Width
251
Height
185
Depth
107
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
315
Number of poles
3
Rated operating voltage
1000
1000
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP00
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
180
Corrente nominal suportável lcw atual
15
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
1000
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
315
Switching power at 400 V
180
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
315
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
3-pole, side operated, base mounted switch-diconnector with black direct mount handle, terminal bolt kit included
