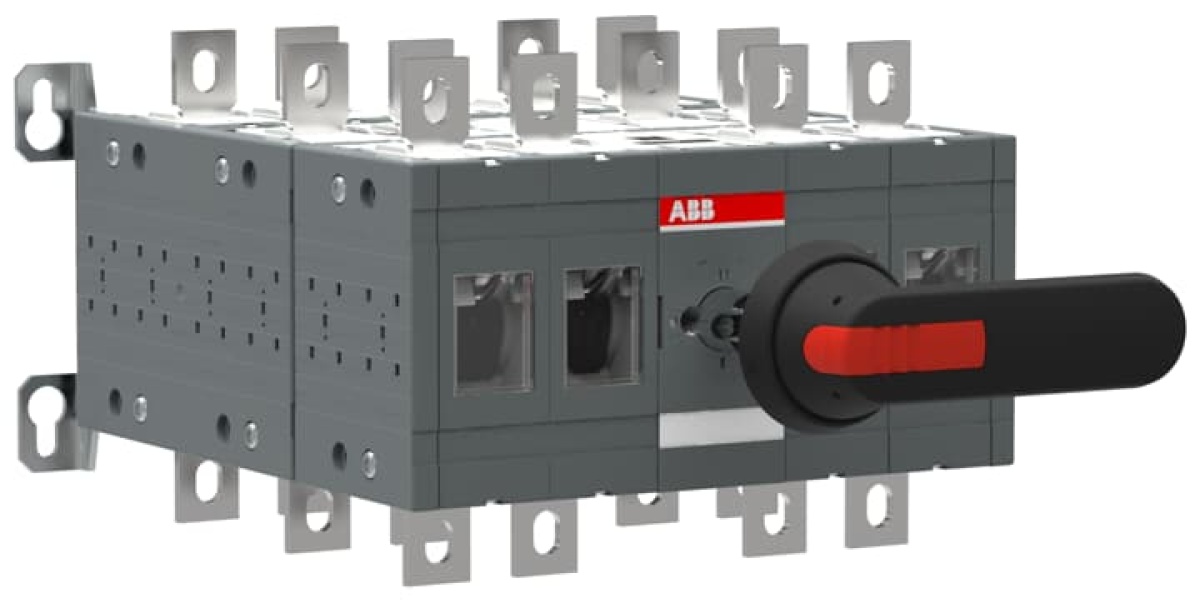

OT400E22YP BY-PASS SWITCH, Handle and shaft included, Open transition
Cutting and Protection Devices
OT400E22YP BY-PASS SWITCH
Nortécnica Ref:
EAN:
6417019543710
Description
Technical Information
Attributes
Width
284
Height
185
Depth
306
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
-
Number of poles
4
Rated operating voltage
1000
1000
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
220
Corrente nominal suportável lcw atual
15
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
1000
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device plug-in technique
Rated permanent current at AC-21, 400 V
400
Switching power at 400 V
220
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
400
Degree of protection NEMA
1
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
OT400E22YP BY-PASS SWITCH, Handle and shaft included, Open transition
