3-pole, side operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Cutting and Protection Devices

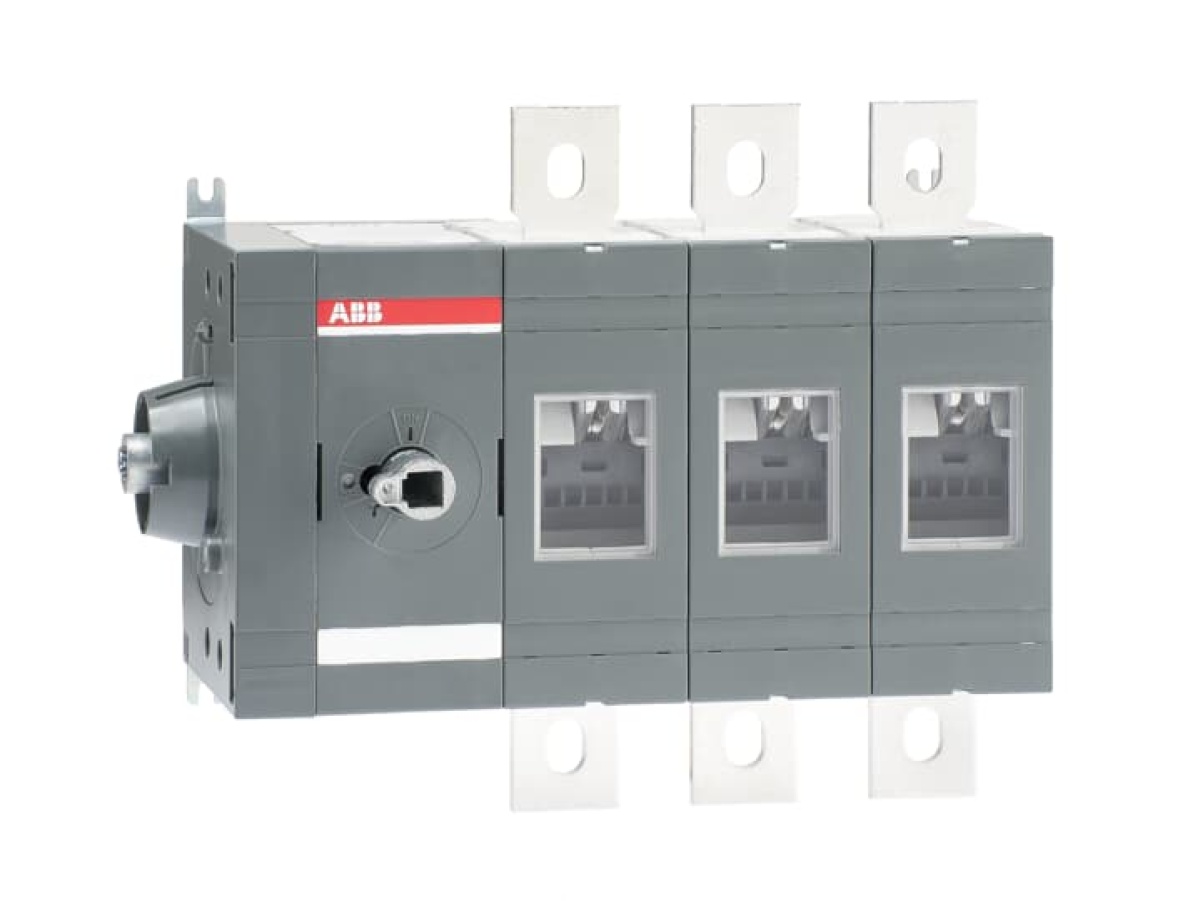

OT630ES03 SWITCH-DISCONNECTOR
Nortécnica Ref:
EAN:
6417019308937
Description
Technical Information
Attributes
Width
316
Height
250
Depth
130
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
630
Number of poles
3
Rated operating voltage
1000
1000
Corrente condicional nominal de curto-circuito Iq
80
Width in number of modular spacings
-
Degree of protection IP, front side
IP00
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
Other
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
355
Corrente nominal suportável lcw atual
20
Colour control element
-
EF007243
-
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
1000
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
630
Switching power at 400 V
355
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
630
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
3-pole, side operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
